เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง  71 นิ้ว (Acrylic Bender Bending Machine) --- 71" (1800mm) Bending Acrylic Machine
  • เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง  71 นิ้ว (Acrylic Bender Bending Machine) --- 71" (1800mm) Bending Acrylic Machine
  • เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง  71 นิ้ว (Acrylic Bender Bending Machine) --- 71" (1800mm) Bending Acrylic Machine
  • เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง  71 นิ้ว (Acrylic Bender Bending Machine) --- 71" (1800mm) Bending Acrylic Machine
  • เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง  71 นิ้ว (Acrylic Bender Bending Machine) --- 71" (1800mm) Bending Acrylic Machine

See larger image and other views (with zoom)

เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง 71 นิ้ว (Acrylic Bender Bending Machine) --- 71" (1800mm) Bending Acrylic Machine

   |   124 Transactions

รหัสสินค้า:ABM-SB-1800A

Buyer Protection

 เครื่องดัดวัสดุ (อะครีลิค) หน้ากว้าง  71 นิ้ว (Acrylic Bender Bending Machine

สามารถดัดงอ วัสดุประเภทอะครีลิคเช่น  พลาสติค, PC, PVC  และ PP   ซึ่งดัสวัตถุด้วยความร้อน และดัดวัตถุขึ้นมุมได้ตั้งแต่   30  - 180  องศา

• มีฟังก์ชั่นการทำงานทั้งระบบอัตโนมัติ ด้วยระบบการทำงานแบบเครื่องตัด CNC
• ฟังก์ชั่นดัด งอ กระดาษอัตโนมัติ
• ร่องหนีบอ่อน สามารถปรับร่องได้ตามความหนาวัสดุ
• แผ่นความร้อนที่ยึดติดแน่น ลดการผิดพลาดจากการทำงาน
• เครื่องดัดใช้รังสีอินฟาเรดในการให้ความร้อน ดังนั้นอุปกรณ์จึงใช้งานได้อย่างคงทน ยาวนาน กว่า ชนิดความร้อนธรรมดา
• แรงดัน และความร้อนปรับได้ตามขนาดและความหนาวัสดุ
• มีระบบป้องกันอุปกรณ์จากการทำงาน
• ใช้งานได้กับวัสดุอื่นเช่น PVC, PE, PS, ABS, PP และอื่นๆ
•  ดัดวัสดุได้จากความหนาตั้งแต่   0.8 มม -  6 มม  โดยไม่ทำจำเป็นต้องเจาะรูบนวัสดุ   และ  6 มม - 20 มม โดยไม่ทำจำเป็นต้องเจาะรูบนวัสดุ

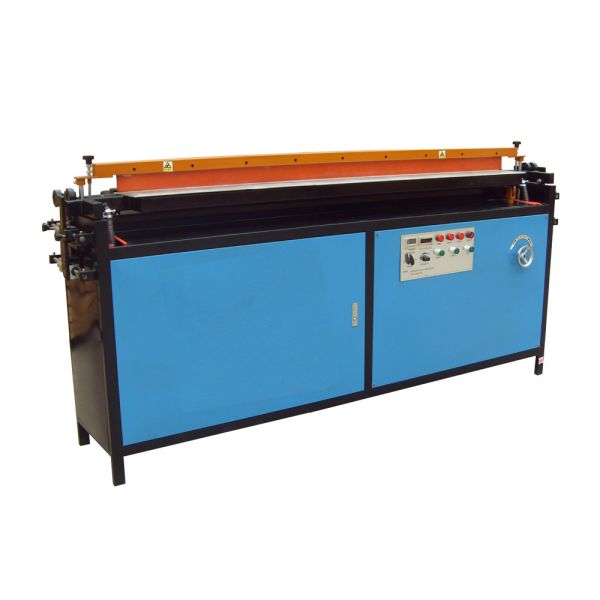

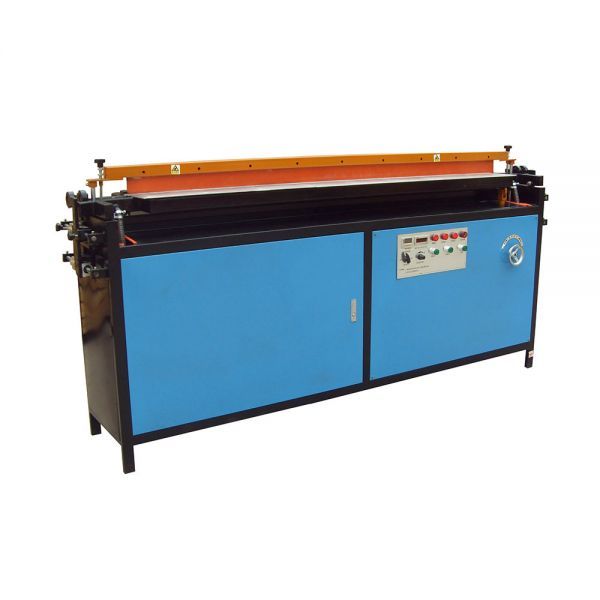

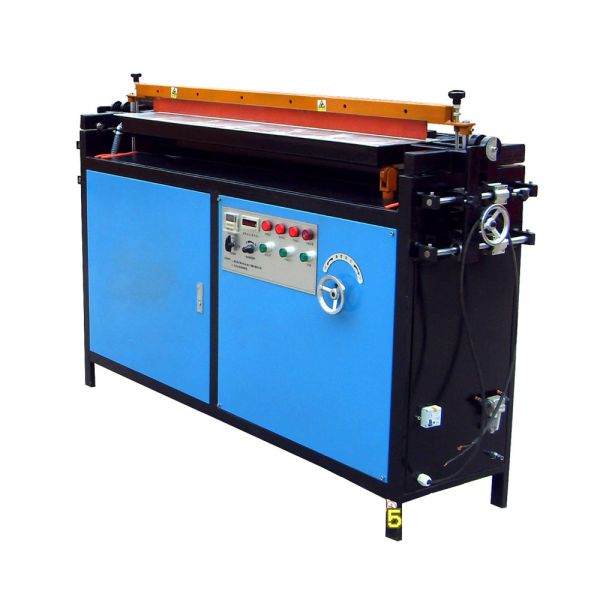

71" (1800mm) Bending Acrylic Machine
Bending materials like acrylic, plastic, PC, PVC and PP. This hot bending process equipment can adjust any angle and shape within 30 - 180 degree.

• Automatic and manual function with CNC operations
Automatic function to bend the sheet
Softening crevice can be adjusted according to the thickness of plate
The heating plate can be fixed avoiding defamation
The Acrylic Bending Machine has an infrared heating system to prolong the lifespan for more time rather than the hot furnace filament.
The temperature and working voltage can be adjusted according to the material and thickness.
Water circulation protects the configuration and the overheating alarm temperature ensures the safety of the machine.
The current package protects the equipment.
Bending acrylic support for PVC, PE, PS, ABS, PP and more.
Thickness range ending: 0.8mm to 6mm (there is no need to cut a slot on the sheet)
                                                 6.00mm to 20mm (there is need to cut a slot on the sheet)

Specifications
Model ABM-SB-1800A
Angle 30°-180°
Bending Thickness Up to 0.8" (20mm)
Working Length 1800mm
Power 6KW (Working power 2KW)
Power Supply 1PH 220VAC

Samples:


Application:
