เทปกาวติดแป้นสกรีนหรือกระดาษปูโต๊ะงานสกรีนการยึดเกาะระดับสูงชนิดม้วน ขนาด   กว้าง   16"  x 100 ---High Tack Screen Printing Pallet Platen Tape Silk Screen
  • เทปกาวติดแป้นสกรีนหรือกระดาษปูโต๊ะงานสกรีนการยึดเกาะระดับสูงชนิดม้วน ขนาด   กว้าง   16"  x 100 ---High Tack Screen Printing Pallet Platen Tape Silk Screen
  • เทปกาวติดแป้นสกรีนหรือกระดาษปูโต๊ะงานสกรีนการยึดเกาะระดับสูงชนิดม้วน ขนาด   กว้าง   16"  x 100 ---High Tack Screen Printing Pallet Platen Tape Silk Screen

See larger image and other views (with zoom)

เทปกาวติดแป้นสกรีนหรือกระดาษปูโต๊ะงานสกรีนการยึดเกาะระดับสูงชนิดม้วน ขนาด กว้าง 16" x 100 ---High Tack Screen Printing Pallet Platen Tape Silk Screen

   |   1 Transactions

รหัสสินค้า:SPM-TP-PH70-16W

  • ราคา Unit : ฿ 3,627 - 4,030/roll   (ขอส่วนลดพิเศษ)

    ราคาขายส่ง :
    • จำนวน (rolls) ส่วนลด Amount/roll
      1. 1 - 5 0% ฿4,030
      2. 6 - 10 5% ฿3,829
      3. 11 - 20 10% ฿3,627
    • Need more quantities, please click Bulk Order
  • จำนวน: roll(s) Total Cost: ฿4,030
  • น้ำหนักการส่ง: 9.9lb (4.5kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

เทปกาวติดแป้นสกรีนหรือกระดาษปูโต๊ะงานสกรีนการยึดเกาะระดับปานสูงชนิดม้วนขนาดกว้าง   16"  x 100

รายละเอียด:

1.การยึดติด (g / 25mm): 200-400

2. น้ำหนัก (g / ㎡): 70 ± 3

3.กว้าง (mm): 460

4.ยาว (เมตร): 100

5.ความแข็งแรงทนทาน (เดือน): 12

6. ความเหนียว (กก. / เซนติเมตร  ): แนวนอน   ≥3.0     ;   แนวตั้ง≥   ≥4.0

7. ความเหนียวทนทานต่อการฉีกขาด (มม.): แนวนอน   ≥600   ;  แนวตั้ง≥500





การประยุกต์ใช้งาน    :

เทปกาวติดแป้นสกรีนนี้ออกแบบมาเพื่อใช้ในกระบวนการพิมพ์สกรีนลงบนผ้าเพื่อป้องกันแป้นสกรีนจากการสะสมของสเปรย์กาว     ช่วยขจัดความจำเป็นสำหรับการกำจัดสารละลายและเศษเหลือทิ้ง  ใช้ได้กับเครื่องสกรีนทุกชนิด (เครื่องสกรีนแป้นสกรีนแบบเรียงแถวเป็นแนววงรี, เครื่องสกรีนเสื้อหลายแป้นสกรีนเรียงกันเป็นวงกลม ฯลฯ )  นอกจากนี้ยังสามารถใช้ได้กับแท่นสกรีนแบบใช้มือ  , ใช้ตกแต่งแป้นสกรีนเป็นต้น

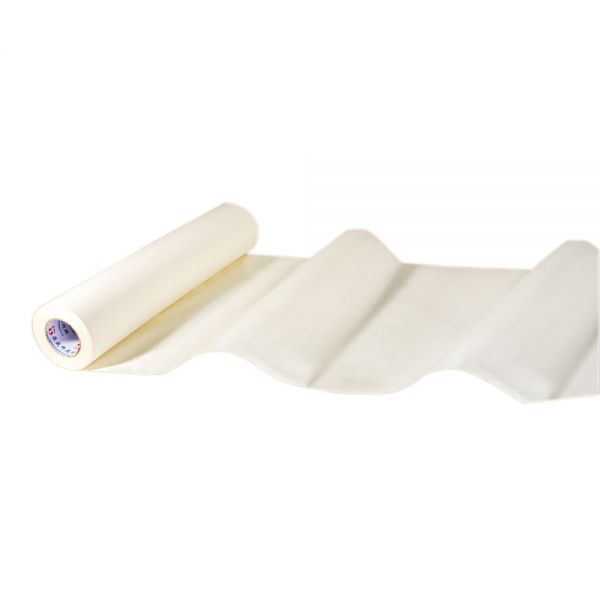

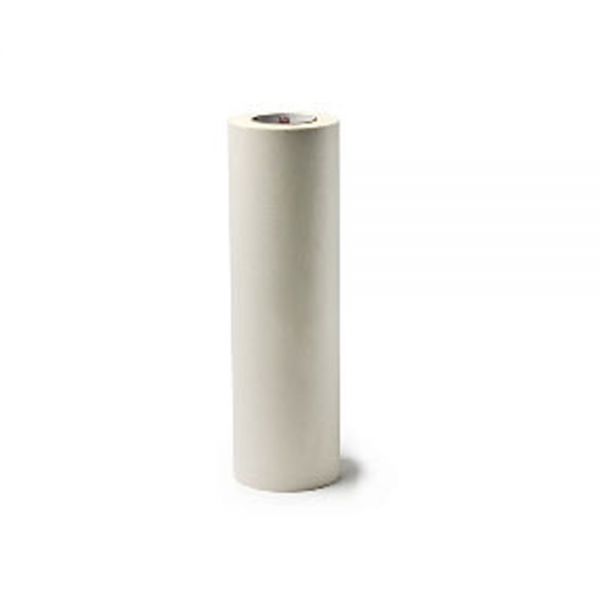

16" wide x 100yds. High Tack Screen Printing Pallet Platen Tape Silk Screen
Description:
1.Adhesion(g/25mm):400-700
2.Base Weight(g/㎡):70±3
3.Width(mm):410
4.Length(m):100
5.Storing(Months):12
6.Tensile strength(kg/cm):Horizontal≥3.0;Vertical≥4.0
7.Tear strength(mN):Horizontal≥600;Vertical≥500

Application:

Pallet tape designed for use in textile screen printing to protect the platens from spray adhesive build-up. Eliminates the need for costly solvents and rag disposal.
Apply to all kinds of printing machine (oval printing machine, octopus printing machine, etc.), as the cutting piece positioning. Can also be used for hand-printed platen, embroidery platen positioning.

Using process:

โปรดทราบ

ก่อนใช้งานโปรดให้แน่ใจว่าแป้นสกรีนนั้นสะอาดไม่มีขนหรือฝุ่นละออง

1. ใช้แรงยืดให้สม่ำเสมอและดึงปูไปทับลงบนแผ่นแป้นสกรีน

2. ตัดด้วยมีด

3. จากนั้นปาดให้เรียบด้วยมือหรือที่ปาดเพื่อให้ติดแนบสนิทเข้ากับแผ่นแป้นสกรีนได้ดีมากยิ่งขึ้น

4. วาดลายเส้นลงบนตำแหน่งเทปกาวที่ติดแป้นสกรีน

5. เคลือบด้วยกาวชนิดน้ำหรือกาวชนิดน้ำมัน ( ขึ้นอยู่กับสภาพของผ้า ) วางชิ้นงานลงไป

6. หากต้องการเปลี่ยนไม่ต้องทำความสะอาดแป้นสกรีน





ประโยชน์:

1. ง่ายต่อการเคลือบ:  กาวติดดี,ไม่มีการต้องเคลือบซ้ำอีกรอบ, ตัดง่าย,  ไม่ขดตัว

2. ง่ายต่อการลอกออก  :  ลอกออกง่าย, ง่ายต่อการเปลี่ยน,ไม่ก่อให้เกิดการสูญเสียความแข็งแรงแป้นสกรีน, ลดความเสียหาย    ของการกัดกร่อนจากสารละลายบนแป้นสกรีน

3 อุณหภูมิสูง: ในกรณีสภาพอุณหภูมิสูง,  ยังคงรักษาประสิทธิภาพคงเดิม,ไม่พองตัว

4. มีความทนทาน: ใช้ผ้าเช็ดคราบในตำแหน่งเดียวกันที่ใช้งานโปรดอย่าเปลี่ยน

5.สะอาด:   ผลิตด้วยกระดาษนำเข้าและยางธรรมชาติ,  ไม่มีสารตกค้าง,ไม่จำเป็นต้องทำความสะอาดแป้นสกรีน,  ประหยัดแรงงาน,   ผ่านการปรับปรุงประสิทธิภาพในการทำงาน, ช่วยลดต้นทุนด้านเวลา

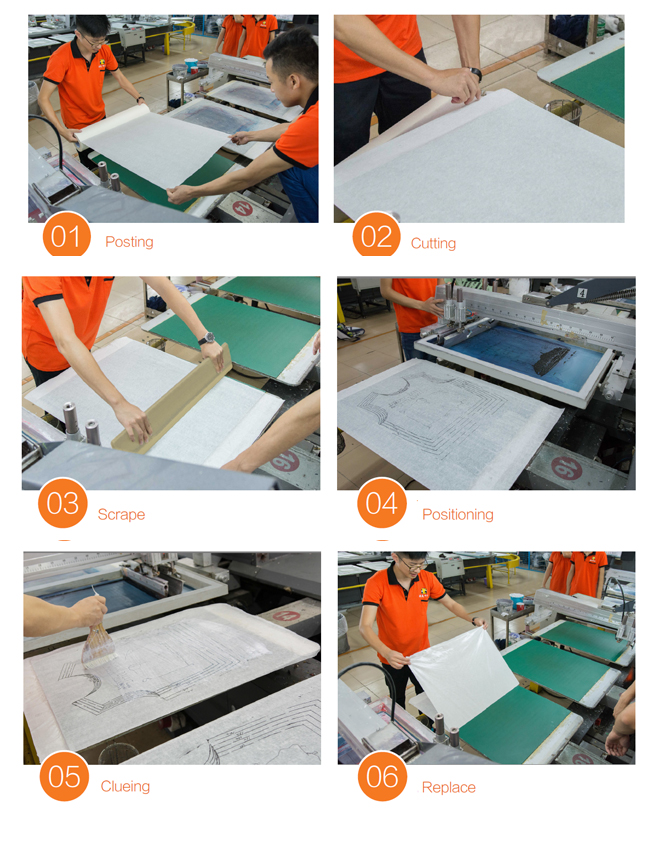

Attention:
Before use, ensure that the platen clean hairless.
1. Uniform intensity and pull the mask laid flat on the platen.
2. Cut the platen mask with a knife.
3.Then scrape the platen mask with hand or scraper, So that more closely linked to platen.
4.Draw lines on the platen mask positioning.
5. Platen paper tile on the plank then coated with water-based glue or oil-based glue(depend on the fabric situation), put pieces.
6. If you need to replace, without cleaning the platen.

Advantage:

1.Easy to Laminate:Good in adhesive,No re-laminated,Cutting is simple, not curl
2.Easy to Remove:Tear off in complete piece,Easy to replace, no wastage Protect platen, reduce the solvent damage.
3.High temperature:High temperature conditions, still maintain its performance,Over the printing oven, will not blister
4.Durable:When there is cloth, wipe it When using the same positioning, do not replace
5.Clean:Imported parchment and natural rubber, no residue,No need to clean the platen, save labor,Improve work efficiency, reduce time costs



การจัดเก็บ   :

ห้ามขนส่งหรือเก็บรักษาร่วมกันกับสารอินทรียระเหยควรเก็บไว้ที่อุณหภูมิ 10 ℃ ถึง 30℃  และความชื้น 40% ถึง 70  % เก็บให้พ้นแสงแดดประสิทธิภาพที่ดีที่สุดภายใน 6 เดือน หลังจากซื้อการจัดเก็บควรวางลงเพื่อไม่ให้เกิดการบดขยี้หรือยับ



แพ็คเก็จ:

น้ำหนักรวม:  4.5 กก



ขนาดบรรจุภัณฑ์:  45 x 17 x 17cm









Storage:
Do not transport or store with volatile organic solvents, avoid direct sunlight, rain. It should be stored at a temperature of 10 ℃ to 30℃ and a humidity of 40% to 70%. Buy for the best performance within 6 months after purchase. Storage, the platen mask should be placed, so as not to crush.

Package:

Gross weight: 4.5 kg
Packing size: 45 x 17 x 17cm
