จอแสดงผล    LED Display  P2.5   หรือบอร์ด   P2.5 หลากสี      สำหรับใช้งาน   ภายในอาคาร  --- Full Color Indoor P2.5 LED Display Screen
  • จอแสดงผล    LED Display  P2.5   หรือบอร์ด   P2.5 หลากสี      สำหรับใช้งาน   ภายในอาคาร  --- Full Color Indoor P2.5 LED Display Screen
  • จอแสดงผล    LED Display  P2.5   หรือบอร์ด   P2.5 หลากสี      สำหรับใช้งาน   ภายในอาคาร  --- Full Color Indoor P2.5 LED Display Screen
  • จอแสดงผล    LED Display  P2.5   หรือบอร์ด   P2.5 หลากสี      สำหรับใช้งาน   ภายในอาคาร  --- Full Color Indoor P2.5 LED Display Screen
  • จอแสดงผล    LED Display  P2.5   หรือบอร์ด   P2.5 หลากสี      สำหรับใช้งาน   ภายในอาคาร  --- Full Color Indoor P2.5 LED Display Screen
  • จอแสดงผล    LED Display  P2.5   หรือบอร์ด   P2.5 หลากสี      สำหรับใช้งาน   ภายในอาคาร  --- Full Color Indoor P2.5 LED Display Screen
  • จอแสดงผล    LED Display  P2.5   หรือบอร์ด   P2.5 หลากสี      สำหรับใช้งาน   ภายในอาคาร  --- Full Color Indoor P2.5 LED Display Screen
  • จอแสดงผล    LED Display  P2.5   หรือบอร์ด   P2.5 หลากสี      สำหรับใช้งาน   ภายในอาคาร  --- Full Color Indoor P2.5 LED Display Screen

See larger image and other views (with zoom)

จอแสดงผล LED Display P2.5 หรือบอร์ด P2.5 หลากสี สำหรับใช้งาน ภายในอาคาร --- Full Color Indoor P2.5 LED Display Screen



รหัสสินค้า:SIT-LED-T251

  • ราคา Unit : ฿ 64,453 - 71,614/sq.m   (ขอส่วนลดพิเศษ) (สินค้าพร้อมส่ง)

    ราคาขายส่ง :
    • จำนวน (sq.ms) ส่วนลด Amount/sq.m
      1. 6 - 16 0% ฿71,614
      2. 17 - 30 5% ฿68,033
      3. 31 - 10% ฿64,453
    • Need more quantities, please click Bulk Order
  • จำนวน: sq.m(s) Total Cost: ฿429,684
  • น้ำหนักการส่ง: 2.2lb (0.98kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

จอแสดงผล    LED Display  P2.5   หรือบอร์ด   P2.5 หลากสีสำหรับใช้งานภายในอาคาร

Full Color Indoor P2.5 LED Display Screen

Specification   /   รายละเอียด

Parameter  /  การตั้งค่าระดับค่า    Value   /  ระดับค่า

Physical
Parameter

พารามิเตอร์ทางกายภาพ

Pixel Configuration  /   การกำหนดค่าพิกเซล SMD2020 full black frame
(Common configuration)
SMD2020 full black frame(NationStar)
Pixel Pitch(mm)   /   สนามพิกเซล  (มม.) 2.5

Pixel matrix per panel module

เมทริกซ์พิกเซลต่อแผงจอโมดูล

96x48

Pixel density(pixels/sq.m.)

ความหนาแน่นของพิกเซล     (    พิกเซล / ตร.ม  .    )

160000

Module Dimensions (LxWxH)/(mm)

ขนาดของจอโมดูล    (LxWxH) / (มม.)

240x120
Ribbon cable type /สายเคเบิลชนิด  Ribbon 16P

Electronic
Parameter

พารามิเตอร์



อิเล็กทรอนิกส์

Driving Type  /     ประเภทขับเคลื่อนพลังงาน   1/24

Optical
Parameter

พารามิเตอร์ออปติคอล

Brightness(nit) /    ความสว่าง (นิด) 1000

Optimal Horizontal Viewing Angle(°)

มุมมองแนวนอนที่เหมาะสม (°)

120

Optimal Vertical Viewing Angle(°)

มุมมองภาพที่เหมาะสมที่สุด (°)

120

Electrical
Parameter

พารามิเตอร์ไฟฟ้า

Input Voltage(V) /   แรงดันไฟฟ้าอินพุต (V) DC5V

Module Input Power Typical Value(W/sq.m

กำลังไฟอินพุตทั่วไปโมดูล        (  W  /  sq.m   )

350

Module Input Power Maximum Value(W/sq.m)

กำลังไฟอินพุตสูงสุดโมดูล   (  W  /  sq.m  )

880

Circumstance
Parameter

พารามิเตอร์    สภาพแวดล้อม

Storage Temperature(℃)/  อุณหภูมิการเก็บรักษา (℃)

―30 - 60
Operating Temperature(℃)/อุณหภูมิในการทำงาน  (℃) ―20 - 50
Storage Humidity(RH)/  ความชื้นในที่เก็บ (RH) 10%~90%
Operating Humidity(RH)/  ความชื้นในการทำงาน (RH) 10%~90%

Lifetime Typical Value(hrs)

 อายุการใช้งานโดยทั่วไปค่า   (ชม.)

100000

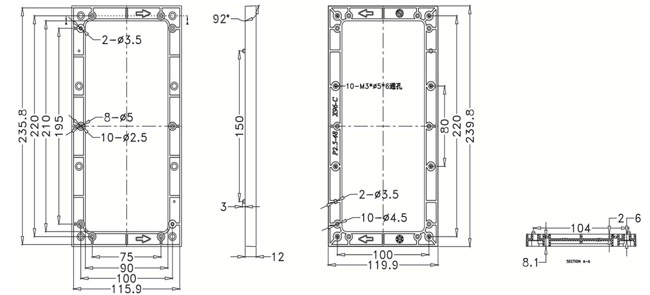

Module mounting holes bitmap   /   รูยึดการติดตั้ง   โมดูล



หมายเหตุ:    ทุกขนาดหน่วยคือ ม.ม. รูปร่างเท่ากับ 0, 0.1, ขนาดรู  + / - 0.05

Remark: all the size of the unit for mm; Shape tolerance to 0, 0.1, pore size tolerance of + / - 0.05.
