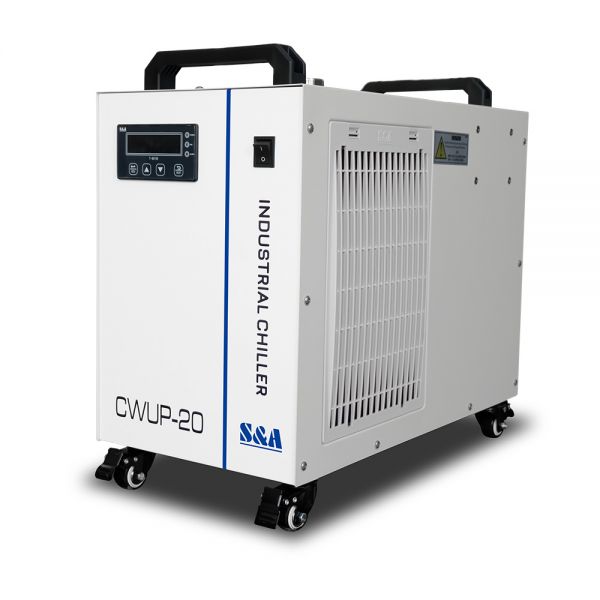

S&A Small Water Chiller CWUP-20 For 20W Solid State Ultrafast Laser
  • S&A Small Water Chiller CWUP-20 For 20W Solid State Ultrafast Laser

See larger image and other views (with zoom)

S&A Small Water Chiller CWUP-20 For 20W Solid State Ultrafast Laser



รหัสสินค้า:CW-UP-20AITY

  • ราคา Unit : ฿ 39,154/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • จำนวน: set(s) Total Cost: ฿39,154
  • น้ำหนักการส่ง: 61.6lb (28kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

S&A Small Water Chiller CWUP-20 For 20W Solid State Ultrafast Laser
Ultra-precise small water chiller unit CWUP-20 is applicable to cool 20W solid state ultrafast lasers including picosecond laser, femtosecond laser, nanosecond laser and so on. It features cooling capacity of 1700W together with ±0.1℃ temperature stability.

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.



SPECIFICATION

Model  CWUP-20AITY
Voltage  AC1P 220~240V, 50Hz
Current  0.6~7.7A
Max. power  1.26KW
Compressor power  0.59kW, 0.8HP
Nominal cooling capacity  4879Btu/h, 1.43kW, 1229Kcal/h
Refrigerant  R-410a
Refrigerant charge  650g
Precision  ±0.1℃
Reducer  Capillary
Pump power  0.09kW
Tank Capacity  6L
Inlet and Outlet  Rp1/2"
Max. Pump pressure  2.5bar
Max.flow  15L/min
Net Weight  25Kg(55lb)
Gross Weight  28Kg(61.7lb)
Dimension   22.8" x 11.4" x 20.5" (58 x 29 x 52cm)
Package Dimension  25.6" x 14.2" x 22" (65 x 36 x 56cm)




Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

PRODUCT INTRODUCTION

Independent production of sheet metal, evaporator and condenser
Adopt IPG fiber laser for welding and cutting sheet metal.
Temperature control accuracy can reach ±0.1°C.

Ease of moving and water filling.
The firm handle can help move the water chillers easily.

Inlet and outlet connector equipped
Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

Cooling fan of famous brand installed.
Level gauge equipped.
Cooling fan with high quality and low failure rate.

Customized dust gauze available and easy to take apart.

Equipped with universal wheels.
While univeral wheels facilitate the moving of the chiller.
