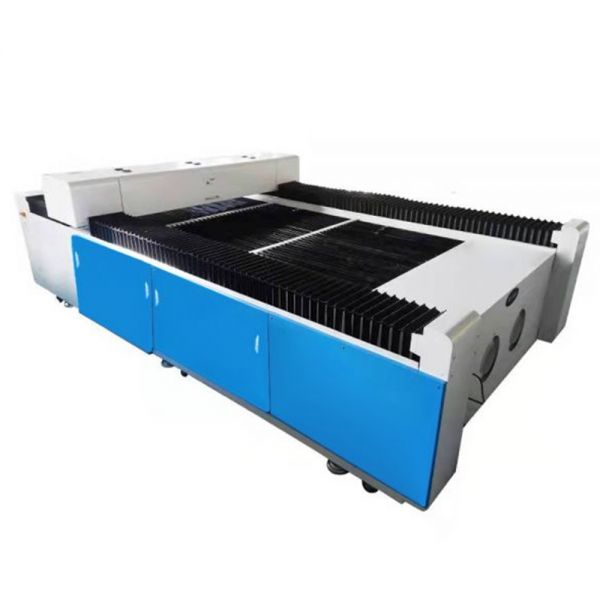

1300mm x 2500mm 130W Laser Cutting Bed with CCD Control System

See larger image and other views (with zoom)

1300mm x 2500mm 130W Laser Cutting Bed with CCD Control System

| 7 Transactions

รหัสสินค้า:SIT-KH1325-CCD

ราคา Unit : ฿ 280,501/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿280,501
น้ำหนักการส่ง: 2420.0lb (1100kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,369 - 1,556/set

เครื่องปั้มอากาศแม่เหล็กไฟฟ้า ขนาด 45 วัตต์ สำหรับเครื่องตัดเลเซอร์ --- 45W Electromagnetic Air Pump for Laser Cutter Laser Engraving Machine, 220V

฿375 - 408/pc

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿2040/set

ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,369 - 1,556/set

เครื่องปั้มอากาศแม่เหล็กไฟฟ้า ขนาด 45 วัตต์ สำหรับเครื่องตัดเลเซอร์ --- 45W Electromagnetic Air Pump for Laser Cutter Laser Engraving Machine, 220V

฿375 - 408/pc

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿2040/set

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 7

Buyer
ราคา Unit
จำนวน
Order Date

Daw****
$277751.00
1 set
2024-02-16

Tee****
$272251.00
1 set
2023-11-18

Ren****
$269501.00
1 set
2023-09-14

Bon****
$272251.00
1 set
2023-07-19

Rut****
$277751.00
1 set
2023-04-14

Alv****
$254826.00
1 set
2023-02-07

Dev****
$272844.00
1 set
2022-11-17

Features:
1.QILI series of laser engraving cutting machines adopt new type, hi-speed laser tubes, which make beam more stable than common laser tubes.
2.Compared with common laser engravers,QL series of laser engravers adopt more specific design of machine-body,higher strength steel frame structure,which makes strength forty percent higher, never deformable, and guarantee high speed and high precision operation.
3.Humanized and most modernized design of appearance reflects caring idea of QILI,it is simple to operate and maintenance.
4. Zhiyuan CCD control system and special motion control chip make the machines cut curve continuously and rapidly,the selection function of the shortest path makes efficiency higher.
5. All machines are configurated with U-disk offline control system, so it is more simple and easier to operate.
6.The red-light positioning device can indicate process site of laser head to avoid trouble of manual position.

Details:

Specifications:

Name	Laser cutting 1325CCD
Processing area	1300mm*2500mm
Laser power	130W
Laser type	C02 glass laser tube
Software	Laser cut 5.3
Dimension	3.2m2m1.3m
Engraving speed	1-60000mm/min
Cutting speed	1-24000mm/min
Cutting thickness	0-25mm acrylic (others determined by materials)
Resolution ratio	≤0.0125mm
Position system	Red dot
Interface	USB
Minimum shaping character	letter 0.5mm, Chinese 0.5mm
Support graphic format	DST, PLT, BMP, DXF
Gross power	1000W
Driving mode	DC0.8A 24V stepper motor
Cooling mode	Circulation water cooling
Working voltage	AC220V/50HZ
Operating temperature	0-45℃
Operating humidity	5-95%
Packing	wooden box
Guarantee time	1 year of whole machine
Option	Rotary attachment for column materials
Operation	Video to tell customer how to operate the machine

Applicable materials for laser cutting tools:
Non-metal materials such as acrylic, double color board, Plexiglas, Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.

Applicable industries for laser cutting tools:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
