รหัสสินค้า:CS-EM-PD100
ราคา Unit : ฿ 2,365 - 2,688/pc (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 14-20 วัน)
น้ำหนักการส่ง: 2.6lb (1.2kg) ขนส่งสินค้า
Automatic Fixture Clamp Plate Device:
seller assumes all responsibility for this listing
จำนวน: ประเทศ:
Shipping and handling | To | Service | Delivery* |
US $75.00 | United States | Express Delivery: TNT/DHL/FEDEX/UPS | Estimated between 3-6 Days |
Handling time |
Will usually ship within 3 business days of receiving cleared payment. |
We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china. |
|
Payment method |
|
Transaction History
Transactions:

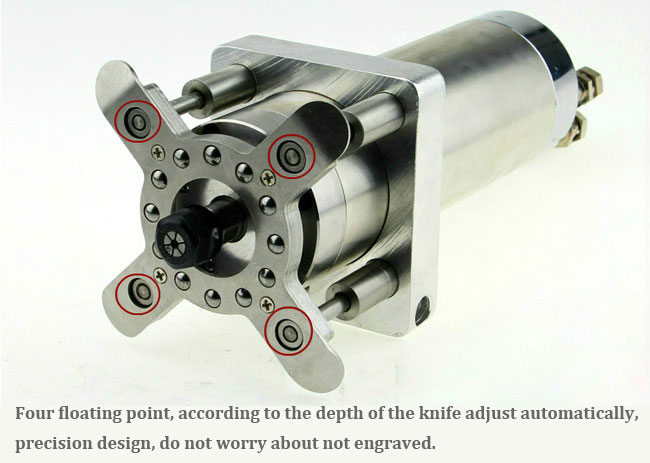

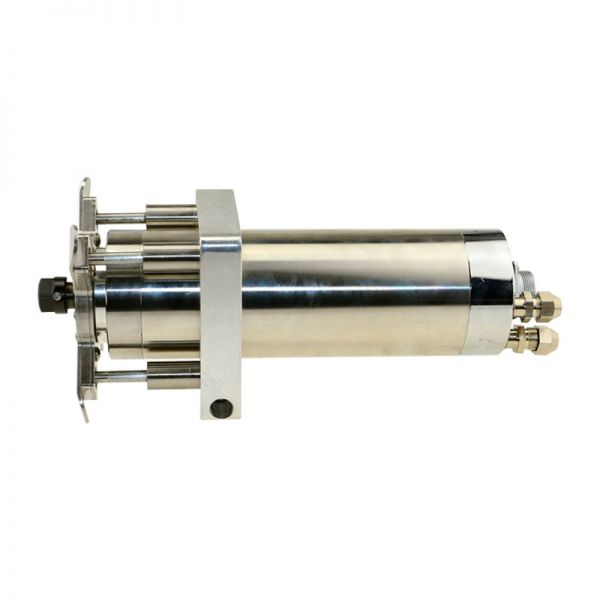

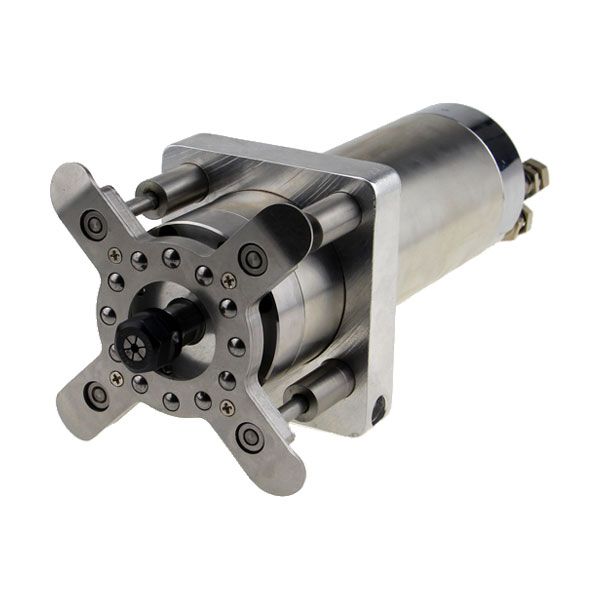

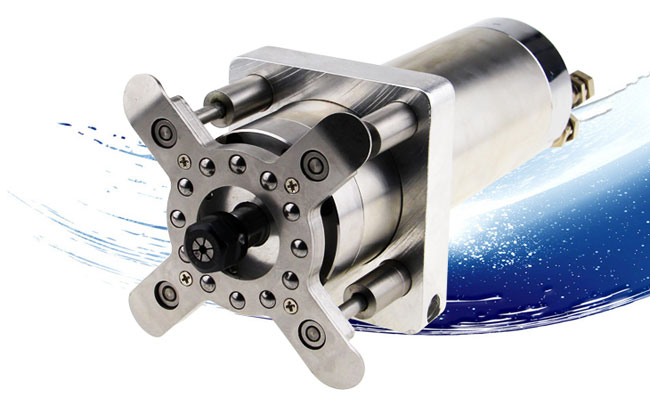

Diameter 100mm Automatic Fixture Clamp Plate Device for 3KW/3.2KW/4.5KW Spindle Motor of CNC Router
แท่นเจาะอัตโนมัติ เครื่อง CNC เส้นผ่านศุนย์กลาง 100 มม, 3kw/3.2kw/4.5kw ของเครือง CNC
รายละเอียด:
อุปกรณ์แท่นเจาะอัตโนมัติแบบมัลติฟังก์ชั่น ไม่จำเป็นต้องมีตัวยึด เพียงใช้กาว หยด เพียง 3 วินาที ประหยัดแรงงานได้ถึง 95 % ไม่มีอัตราการเกิดอุบัติเหตุแก่ผุ้ใช้และแก่ชิ้นงาน (ยกเว้นปัจจัยที่เกิดผุ้ใช้งาน)และใช้งานได้ดี 100% ได้ปริมาณงานที่เป็นพิเศษ เสียงเบา ไร้ฝุ่นเกาะ และอื่นๆ ไม่ต้องเปลี่ยนแท่นบ่อย เพราะสามารถยืดปรับได้อัตโนมัติ สามารถยืดได้ประมาณ 2 เซนติเมตร และยังใช้ได้กับชิ้นงานที่รูปร่างไม่เป็นเส้นขนาน ลดค่าใช้จ่าย และได้ผลตอบแทนที่คุ้มค่ากับการลงทุน
คุณสมบัติ:
วัสดุทำจาก : อลูมิเนี่ยม,สแตนเลส (โลหะกันสนิม)
การใช้งาน : แท่นยึดกดจับหัวเจาะ
ตำแหน่งของอุปกรณ์ : แกนหลักของเครื่อง
รุ่น :100
แกนหลักทำงานระบบ :ไฮโดร และ อากาศหล่อเย็น
เส้นผ่านศูนย์กลางแกน :100 มิลลิเมตร
ใช้งานได้กับยี่ห้อ :shuntong,qiancheng,changsheng,
ใช้งานได้กับวัสดุ:อลูมิเนี่ยม พลาสติก แผ่นงานชนิด 2 สี บอร์ดไฟเบอร์ความหนาขนาดกลาง และวัสดุอื่นๆ ที่ความหนาไม่เกิน 1 เซนติเมตร
ข้อแนะนำการใช้งาน:
การเลือกซื้อแท่นยึดจับชิ้นงานของเครื่องตัดนั้นสามารถเลือกซื้อหลายขนาด ขึ้นอยุ่ผู้ใช้งานว่าต้องการขนาดเส้นผ่านศูนย์กลางขนาดเท่าใด จึงขอแนะนำแค่ขนาดบางขนาดให้เห็นเท่านั้น บางรุ่นบางขนาดใช้งานด้วยกันไม่ได้ ดังนั้นขอแนะนำให้ผู้ใช้งานทราบขนาดแท่นเจาะให้แน่ชัดก่อนทำการสั่งซื้อ
การติดตั้ง:
วางแท่นจับชิ้นงานบนแกนมอเตอร์ ปรับตำแหน่งขึ้นลงให้พอดี แล้วขันให้แน่น ด้วยน๊อตสกรูและแหวน (การปรับขึ้น ลง :หากชิ้นงานหนาน้อยกว่า 3 มิลลิเมตร และแผ่นล่างของแท่นต้องขนานกับจุดที่จะตัด, หากแท่นมีขนาด 4 - 6 มิลลิเมตร ปรับแท่นขึ้นลงได้ 2- 3 มิลลิเมตร )
เริ่มการใช้งาน:
ใช้กาวทาบนแผ่นบอร์ดของโต๊ะงานของเครื่อง แล้วขันให้แน่นกับมอเตอร์ เปิดเครื่องเดินมอเตอร์ แท่นจะหมุนไปตามแรงมอเตอร์ และยึดติดแน่นแบบอัตโนมัติ แน่ใจว่า แท่นแน่นสนิทไม่เลือนขึ้นลง เพื่อกันแรงอื่นๆ รบกวนในการใช้งาน
การใช้งาน: ยึดแผ่นชิ้นงาน เช่น แผ่นอะครีลิค บนเครื่องตัด ด้วยการยึดชิ้นงานทั้งสองด้าน จากนั้นติดตั้งแท่นยึดชิ้นงานอัตโนมัติแบนแกนปรับ ซึ่งอุปกรณ์ สองชนิดนี้สามารถทำงานด้วยกันได้ และกดชิ้นงาน ซึ่งทำให้ชิ้นงานไม่กระเด็น และทำงานได้อย่างราบรื่น ไม่มีแรงใดๆ รบกวน

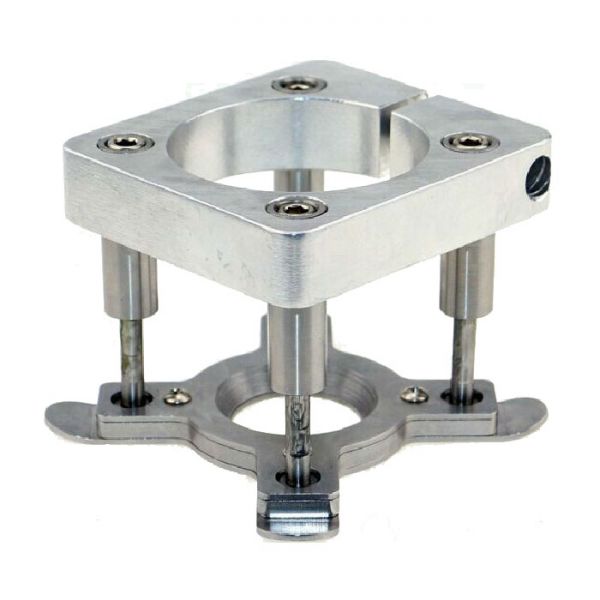

Diameter 100mm Automatic Fixture Clamp Plate Device for 3KW/3.2KW/4.5KW Spindle Motor of CNC Router
Description:
Multifunctional auto pressure plate device, no need of clamp, few drops of 3-second glue, and save more than 95% of labor force. There is no injury happening for users and the qualification ratio of engraving products (except human factors) reaches 100%. Specific engraving measurement, sound deadened, dustproof, etc. No influence to bits changing, the auto elasticity stretching range of pressure plate device is around 2 cm. It is definitely a new unparalleled product with less investment but high returns.
Features:
Product Material: Aluminum, Stainless Steel
Category: Engraver Pressure Plate
Use Position: Principal Axis of Engraving Machine
Applicable Model: 100
Applicable Principal Axis: Hydro and Air Cooling

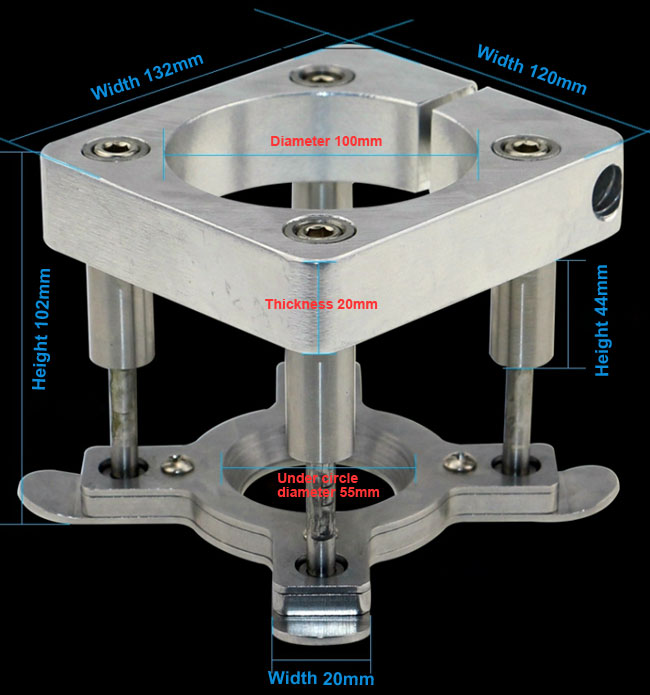

Principal Axis Diameter: 100mm
Applicable Brands: The principal axis of shuntong,qiancheng,changsheng,etc.

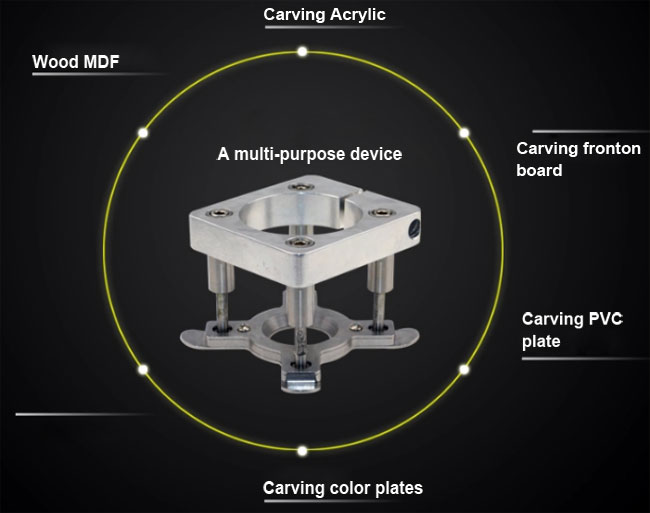

Suitable Materials: It is suitable for various boards such as acrylic, aluminum, plastic, double color plate, Medium Density Fiberboard (MDF), etc., especially, the boards with thickness less than 1cm.
Warm Tips:
Buying large diameter of pressure plate device, it depends on the user’s principal axis diameter. We have listed some of the ordinary axis diameters for your reference. Among which, there could be few principal axes’ specifications do not match each other, hereby we request the buyers must specifically measure the principal axis diameter before purchasing.

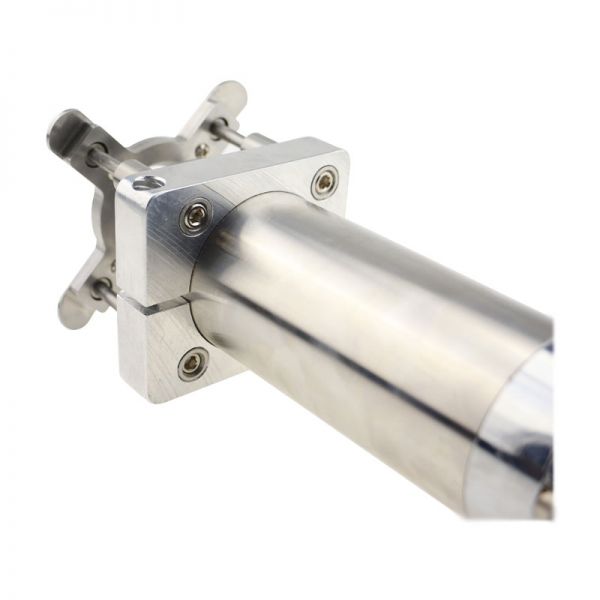

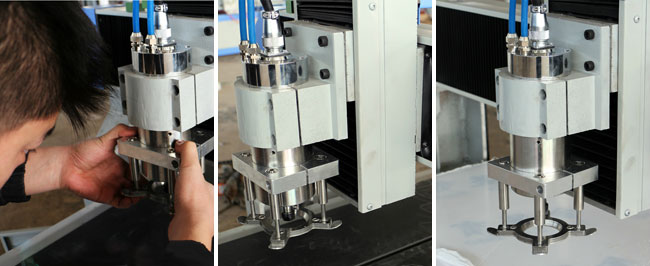

Installation:

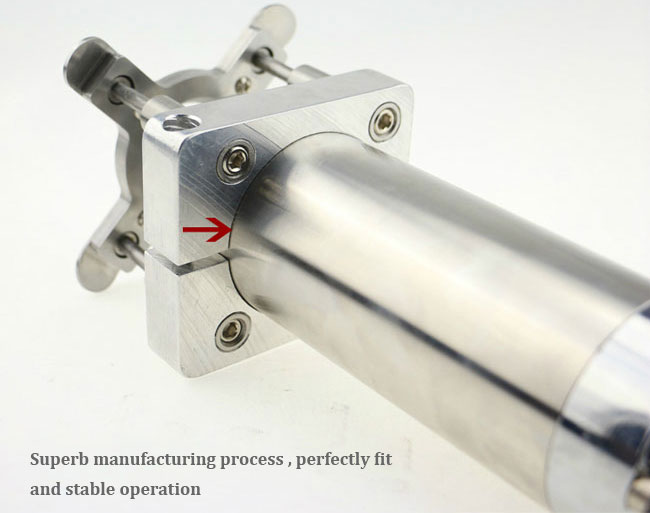

Put the pressure plate device on the principal axis of motor, adjust the position properly up and down then just tighten the screw on the ring (the position up and down: if less than 3mm thickness plate, the bottom of pressure plate device is parallel to the knifepoint; if plates from 4mm to 6mm, adjust the pressure plate device upwards 2mm to 3mm; and then the same manner of adjustment for the rest).
Principle of Operation:
Use little 3-second glue to paste the board on the working platform of engraving machine, then fix the pressure plate deviceon the motor of the machine. By the force of motor running, it makes the pressure plate device move along with motor moving and automatically pressing the board peacefully on the working platform for which it controls the board not moving up and down but stably working without any extra force.

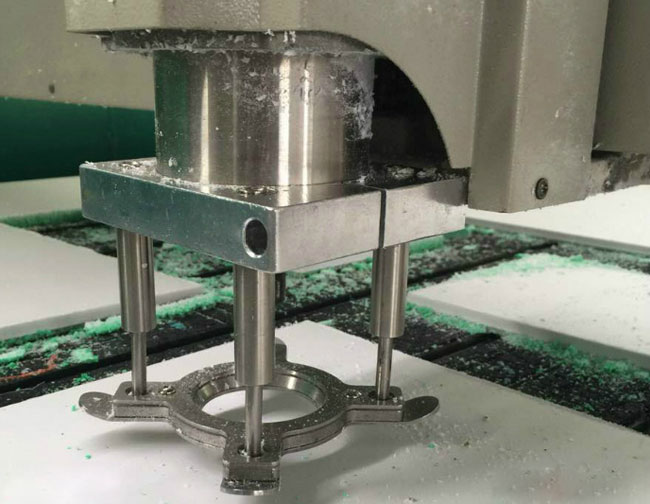

How it works:
Fix board(such as Acrylic board) on the worktable of engraving machine with the help of some double-sided adhesive, and then install,this automatic plate device on the spindle. This automatic device can run together with the spindle and press the board on the worktable, the platen is with motor sports, so that the sheet is not jumping up and down, running smoothly, without any additional force.

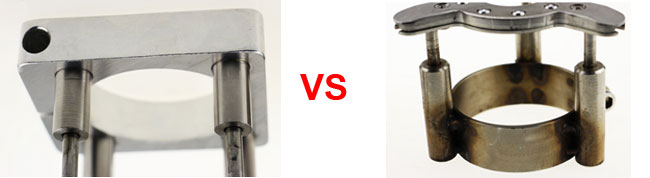

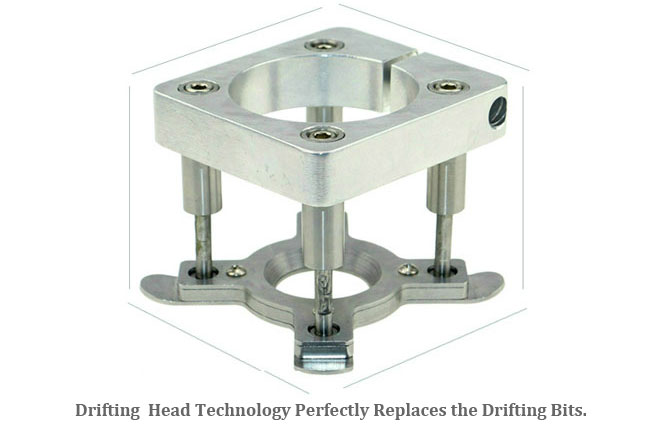

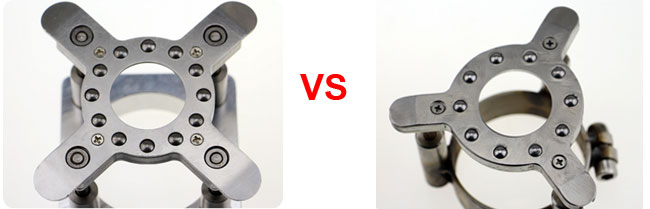

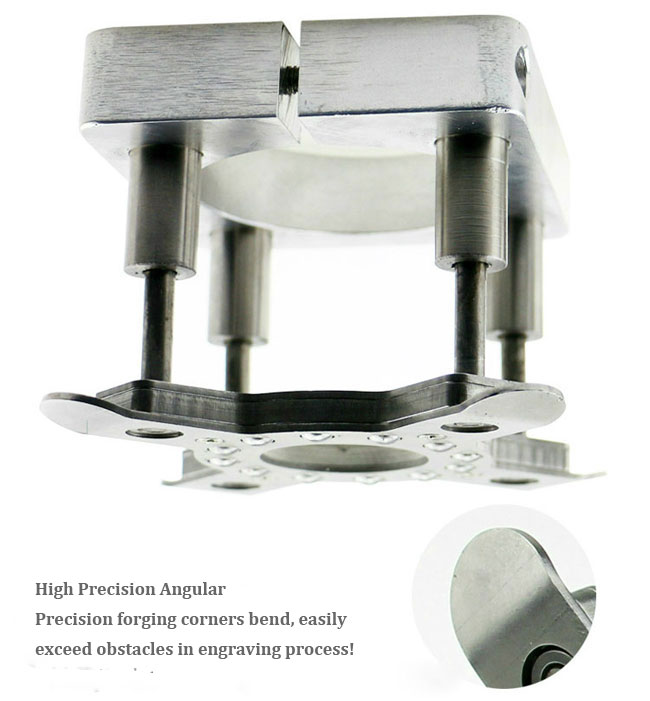

Drifting Head Technology | Welding Technology |
Full abrasive Forging, scientific rigor. | Very rough, easy to scratch board |
Wood Engraving Machines, Advertising Engravers, Stone Cutting, etc.
Why use the pressure plate device?
1. This pressure plate device rolls along with the principal axis moves for which it replaces users manually pressing board materials hence it saves labor force and effectively improves work efficiency.
2. It releases users from burdensome engraving work and stays far from dust or debris so that it creates good and safe environment in respect of the users ad their health.
3. The clincher is adopted with adjustable knob which is easy, tight and applicable to various brands of principal axes in use.
