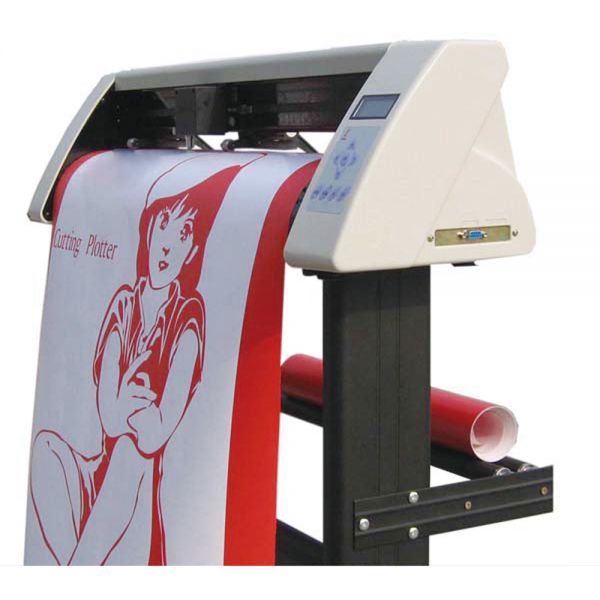

28" Vinyl Cutter Plotter with Contour Cut Function/เครื่องตัดไวนิลสติ๊กเกอร์28"

Terms & Condition of Purchase: After we receive PO from customer with stamp, we give PI for customer.

Lead Time: After receiving customer's deposit, within 1 - 3 days.

Wooden Box: There is total one carton box.

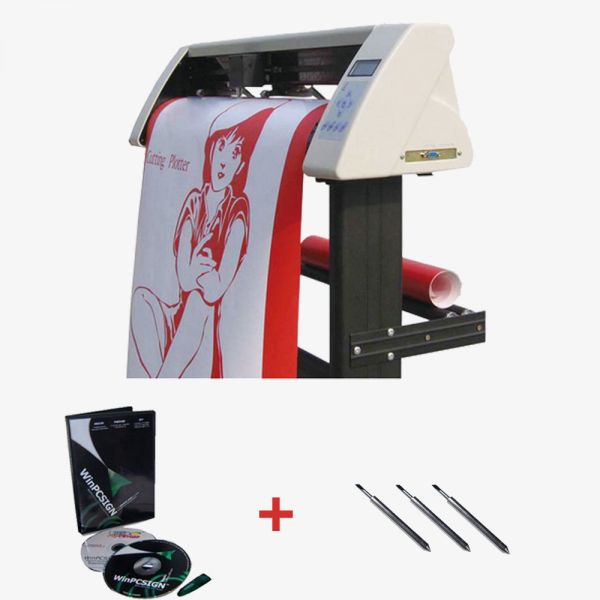

Packing List

Pictures	Article	Unit	Quantity
	Cutting plotter	set	1
	WinPCSign basic 2009 version plotting software	set	1
	USB cable	pc	1
	Power cable	pc	1
	Cutting blades	pc	3
	Blade holder	set	1
	Pen holder	set	1
	User manual (CD)	copy	1-3
	Coat for the Plotter	pc	1
	Deluxe Aluminum Stand	set	1
	Screw for stand	set	1

Standard Accessories







หมายเหตุ :
1.เครื่องเคลือบ ไว้เคลือบวัสดุเป็นม้วนเท่านั้น หากใช้งานอย่างอื่นเเล้วทำให้โรว์เปลี่ยนรูป ไม่อยู่ในการรับประกัน
2.การติดตั้ง ค่าบริการ1500 เฉพาะกรุงเทพ ต่างจังหวัด ฟรีเซอร์วิส เฉพาะ สาขาภูเก็ต หาดใหญ่ สุราษฐ เชียงใหม่ เชียงราย พิษณูโลค ขอนแก่น อุบลลูกค้าต้องรับผิดชอบ ค่าเดินทางและค่าที่พัก หรือส่งซ่อมที่บริษัท

RS_series_vinyl_cutter_user_manual.pdf

RS_Cutting_Plotter_installation_of_USB_Port.pdf

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ: Afghanistan Albania Algerial Andorra Angola Antigua and Barbuda Argentina Armenia Aruba Australia Austria Azerbaijan Bahamas Bahrain Bangladesh Barbados Barbados-- Bridgetown Belarus Belgium Benin Bhutan Bolivia Bosnia and Herzegovina Botswana Brazil Brunei Bulgaria Burkina Faso Burundi Cambodia Cameroon Canada Cape Verde Central African Republic Chad Chile Chinese Taipei Columbia Congo Conoros Islands Costa Rica Cote D Ivoire Croatia Cuba Cyprus Czech Denmark Djibouti Dominican Republic Ecuador Egypt El Salvador Equatorial Guinea Eritre Estonia Ethiopia Faroe Islands Fiji Finland France Gabon Gambia Georgia Germany Ghana Greece Grenada--St.George Guadeloupe Guatemala Guinea Bissau Guninea Guyana Haiti Holland Honduras Hong Kong Hungary Iceland India Indonesia Iran Iraq Ireland Israel Italy Jamaica Japan Jordan Kampuchea Kazakhstan Kenya Kiribati Korea Kosovo Kuwait Laos Latvia Lebanon Lesotho Liberia Libya Lithuania Luxembourg MAadagasca MAauritania Macedonia Malawi Malaysia Maldives Mali Malta Mauritius Mexico Micronesia Moldova Mongolia Montenegro Morocco Mozambique Myanmar Namibia New Caledonia New Zealand Nicaragua Nicaragua Niger Nigeria Norway Oman Pakistan Panama Papua New Guinea Paraguay Peru Philippines Poland Polynesie Frence Portugal Puerto Rico Qatar Reunion Romania Russia Rwanda Saint Lucia Samoa Saudi Arabia Senegal Serbia Seychelles Sierra Leone Singapore Slovakia Slovenia Solomon Somalia South Africa Spain Sri Lanka St Kitts and Nevis Sultan Suriname Swaziland Sweden Switzerland Syria Tajikistan Tanzania Thailand Timor-Leste Togo Tonga Trinidad and Tobago Tunisia Turkey Turkmenistan Uganda UK Ukraine United Arab Emirates United States (eastern part ) United States (western part) Uruguay Uzbekistan Vanuatu Venezuela Vietnam Zambia Zimbabwe

Shipping and handling	To	Service	Delivery*
US $75.00	United States	Express Delivery: TNT/DHL/FEDEX/UPS	Estimated between 3-6 Days

• 1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
• 2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions: 1) There are quality problems after opening the package. 2) Products are different than on the order list. 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment) 2.Creidit card 3.Bank Transfer (T/T) 4.Western Union online/offline payment

Transaction History

Transactions: 26

เซ็นเซอร์อ็อบติคสีแดง,รีจีสเตอร์ทำเครื่องหมายสนับสนุนการตัด,การตัดรองรับด้วยโปรแกรมCorel DRAW

Red optic sensor, register marks with "Cut" Support, cut plug-in for Corel DRAW.

เซ็นเซอร์อ็อบติคสีแดง ที่ให้ความถูกต้องแม่นยำและเครื่องตัดไวนิลสติ๊กเกอร์พล็อตเตอร์มีความหลากหลาย, คุณสามารถทําการวางเส้นโครงร่างการตัดวัสดุอันใดอันหนึ่งก่อนการพิมพ์จากการเลือกของเครื่องพิมพ์เลเซอร์,โซลเวนท์และอิงค์เจ็ท

With such a fast, accurate and versatile vinyl cutter plotter, you can contour cut most any media pre - printed - from your choice of inkjet, solvent based and laser printer.

WinPCSign plotting software (Match training CD)

โปรแกรมการวาดภาพสัญลักษณ์WinPC(ซีดีฝึกหัด)

รองรับการแสดงผลโปรแกรมCorelDrawโดยตรง

Support CorelDraw output directly (But you need to buy a soft dog)

This vinyl cutting plotter has a contour cutting function and is used to cut all kinds of pictures, letters, and similar materials on self-adhesive vinyl, sticker. It is made in China and comes with one year warranty.

เครื่องตัดไวนิลสติ๊กเกอร์นี้มีฟังค์ชั่นการตัดเส้นรูปร่างและใช้ตัดรูปภาพทุกชนิด,จดหมายและวัสดุที่มีคุณสมบัติคล้ายกับไวนิลที่มีกาวติดในตัว,สติกเกอร์

ผลิตในประเทศจีนพร้อมการรับประกัน1ปี

คุณสมบัติ

.ต้นทุนตํ่าและเครื่องจักรมีประสิทธิภาพสูงสำหรับการผลิตเครื่องหมายสัญลักษณ์รูปแบบต่างๆ

.การควบคุมด้วยการประมวลผลแบบRISCความเร็วสูง

.หน่วยรองรับแรงกระแทกของเครื่องตัดสำหรับทำให้การตัดมีความนุ่มนวล

.เครื่องตัดพล็อตเตอร์นี้ได้นำเอาเทคโนโลยีเชิงตัวเลขใหม่ล่าสุด ซึ่งเป็นการสร้างสรรค์แนวความคิดใหม่สำหรับการตัด

.สามารถควบคุมแรงกดอัดและความอัตราเร่งด้วยการคำนวนแบบตัวเลขในการปฏิบัติการจริง ซึ่งทำให้สะดวกมากและส่งผลให้การทำงานมีความรวดเร็ว

.มีการแสดงผลที่สมบูรณ์แบบ:ไม่มีรอยฟันเลื่อยเมื่อใช้ความเร็วสูง

Features
• Low cost and high performance machine for the manufacture of signaling.
• Controlled by RISC high-speed processor, a high speed cache.
• Unique soft impact cutter for smooth cutting.
• This cutting plotter adopts the latest numerical technology, which creates a new concept of cutting.
• It can regulate the pressure and speed numerically at real-time, which is very convenient and can be achieved fast.
• It has a perfect output: there's no saw tooth even when using high speed.
• It supports CorelDraw files,  bringing great convenience to work.
• The cutting plotter is highly stable and has nearly no malfunctions.
• It has a stylish design and very solid support. It doesn't shake while cutting.
• The cutting plotter has LCD with a very accurate and simple English Menu, operated it by pressing buttons.
• The plotter’s pinch rollers are adjustable, so the paper stays in place when using rolls of media.

1.Protection of track  / การป้องกันสัญญาณ                          2.Carriage  /  ฐานหัวตัด
3.Pinch roller      / ลูกกลิ้งหนีบวัสดุ                                       4.LCD monitor   / จอLCD มอนิเตอร์
5.Keyboard panel  / แผงคีย์ข้อมูล                                        6.LED lamp   / หลอดไฟแอลอีดี
7.Right shell        / กรอบเครื่องด้านขวา                                 8.Machine’s foot   / ขารองเครื่องตัด
9.Blade holder    / ตัวยึดใบมีด                                              10.Seat of blade holder / ที่วางตัวยึดใบมีด
11.Left shell        / กรอบเครื่องด้านซ้าย                               12.Handle to control the roller  / ด้ามบังคับลูกกลิ้ง
13.AC power port     / พอร์ทเอซี                                         14.Safe fuse    / ฟิวส์ป้องกัน
15.Power switch   / สวิตช์ไฟ                                             16.RS232 port   / พอร์ทRS232

Locknut holder's shell close screw blade

On the working state, the knife can rotate in holder very smoothly. In the first time you can screw the "close screw" off the "holder's shell", set the blade into bottom of holder, then close the "close screw" to avoid the knife falling out, let the knife peep out of the holder less than 0.5mm. When you want to change the blade, take out the old blade, change a new one, then close the" close screw", keep the blade peep out of the holder less than 0.5mm. (The locknut will not screw, usually).


Close screw Holder shell Plotting pen.

You can use usual ball pen as plotting pen; keep the ball pen peep out of the holder between 4mm and 5mm. the other using method is similar as blade's process; please try it yourself according to the blade's changing method.

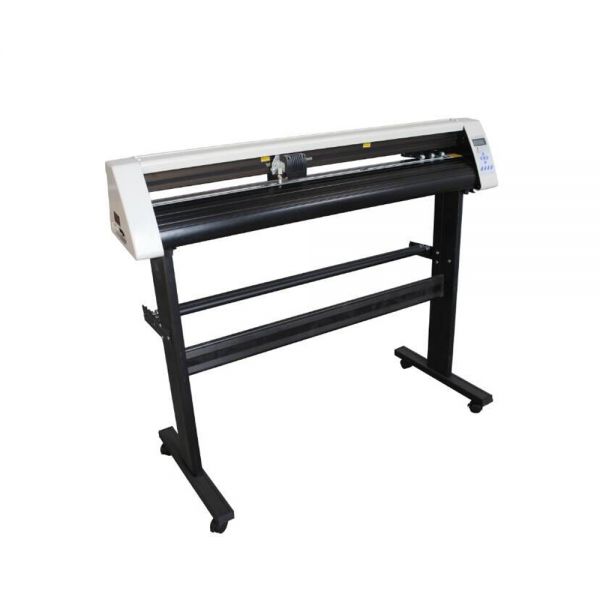

The structure of floor stand

Details Pictures

(Remark: The hop-pocket is optional accessory)

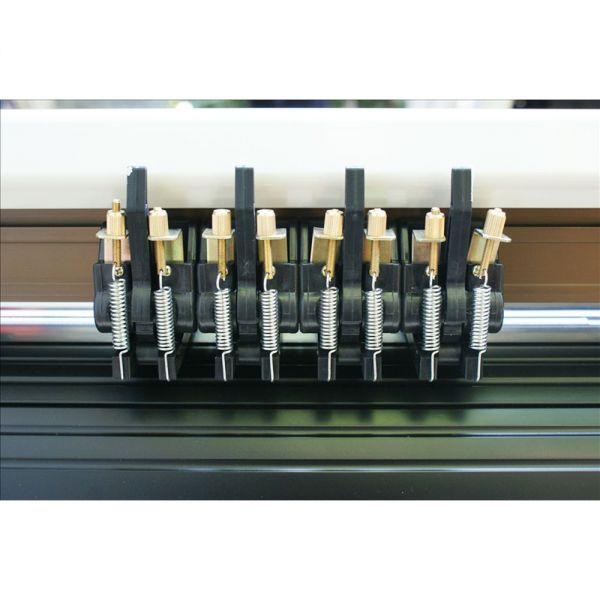

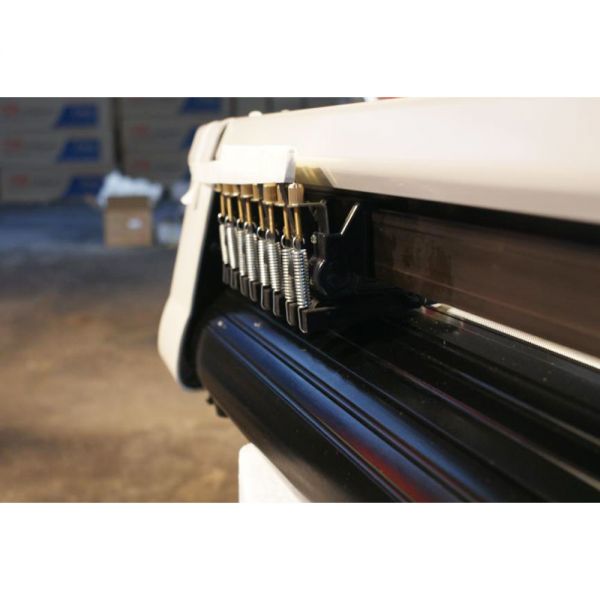

Double spring press paper holder, not distortion

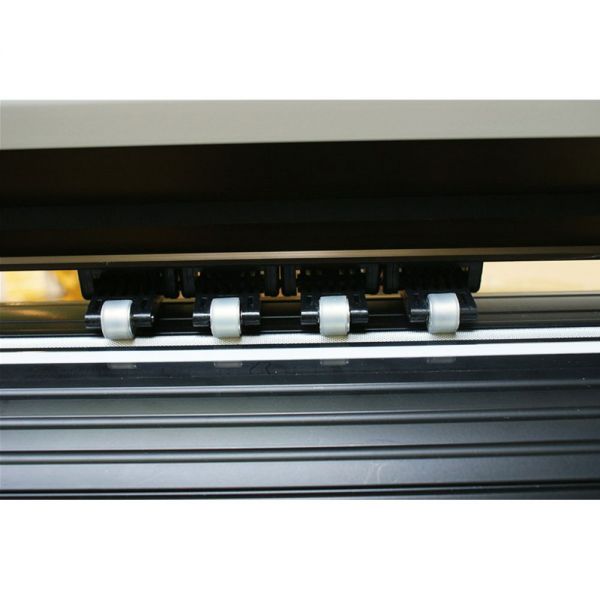

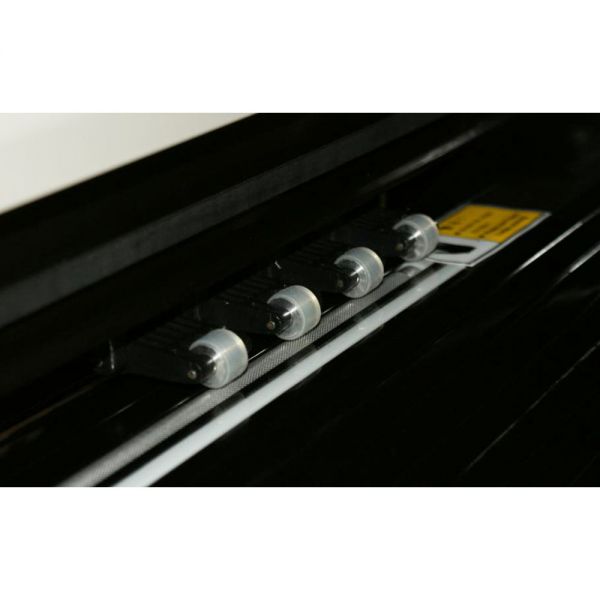

Silica gel pinch roller, durable in use

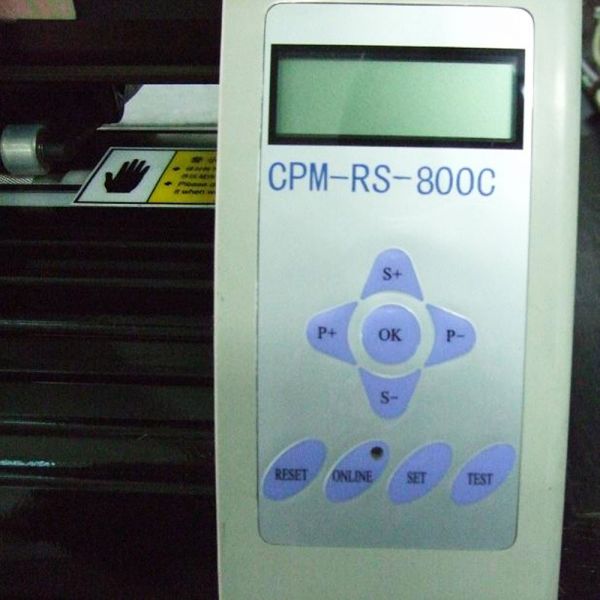

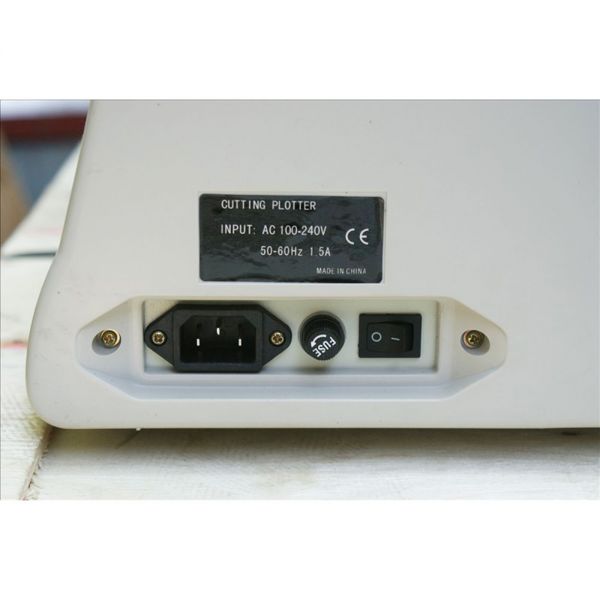

             LCD display control panel                       CE mark and power supply                                USB interface
The life of Blade

The correct usage could prolong the life of blade.

(1)The more length the blade sharp extends out, the shorter life blade will work. So you should avoid cut through the paper.

(2)The more Force, the blade life will get short.

(3)Trying to use small Force, when the blade edge is getting less sharp, you could add the working force suitable.

(4)Different brand blades will have different life.

(5)You should change the blade when you find the old one has no tartness, to avoid affecting the work badly.


How to fix and setup the blade?

Turn off the plotter power.

Set the holder on holder's seat; close the screw of seat of holder.

Turn on the power, the carriage will move to right side; you can press "TEST" key to examine the plotter.

Remark:

A. You should keep the blade clean and don’t break the blade sharp.

B. The length out of the cover should be just a little bit, say 0.2mm around over the paper thickness which you will cut!

On the working state, the knife can rotate in holder very smoothly. In the first time you can screw the "close screw" off the "holder's shell", set the blade into bottom of holder, then close the "close screw" to avoid the knife falling out, let the knife peep out of the holder less than 0.5mm. When you want to change the blade, take out the old blade, change a new one, then close the" close screw", keep the blade peep out of the holder less than 0.5mm. (The locknut will not screw, usually).


How to load media?

Steps: Load media / Load paper:

When you move the roller, you must lift the handle first; the right roller will not move, usually.

Lift the handle, the roller will lift 1 - 2mm, and then you can load your media.

Laying down the handle, you can press "UP" key (S+) or "DOWN" key (S-) continuously, the paper will roll to front or back; please confirm the paper must move straightly during the distance that you want to cut.

Adjust the speed and pressure, and then you can output the data to the plotter.

Common Cutting Function

Contour Cutting Function

How to use this vinyl cutter to make personal T-shirts, sport clothes, uniform clothes, advertising shirts, color flags?

How to use this vinyl cutting machine to make contour cutting for heat transfer?

This cutting plotter is great for business usage; it is able to make any kind of design and it works faster and easier than other models. This machine can be used for stickers, glass decal, penaflex, vinyl decal, masking film for painting or etching, vinyl lettering, decorative scrapbook papers, card stock, stencils, magnetic sheets, etc. As well as all kinds of flexible heat transfer media like T-shirts, magic cut colored paper for garments, etc.
