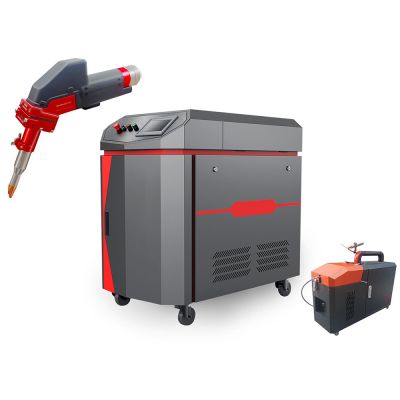

1000W/1500W/2000W/3000W Handheld Laser Welding Machine

Machine introduction:
1000W/1500W/2000W/3000W Hand-held laser welding machine, uses latest generation laser generator. It's equipped with wobble weld head which is developed by us. The machines appear to laser equipment industries, fills in the blank of hand-held welding. It has the advantages of simple operation, beautiful welding beam, fast welding speed and no consumables. Welding in thin stainless-steel sheet, iron sheet, galvanized sheet and other metal materials can perfectly replace the traditional argon arc welding, electric welding and other processes. Handheld laser welding machine can be widely used in cabinets, kitchens, staircases, elevators, racks, ovens, stainless steel doors and windows guardrail, distribution boxes, stainless steel home and other industries complex and irregular welding process.

Machine Features & Advantages:
1) The welding speed is 2-10 times faster than the traditional welding speed. It can help you to save at least two welders a year.

2) Laser welding consumes less material and has a long-life.

3) Easy to operate, no need welding work license, new user can also weld products beautifully.

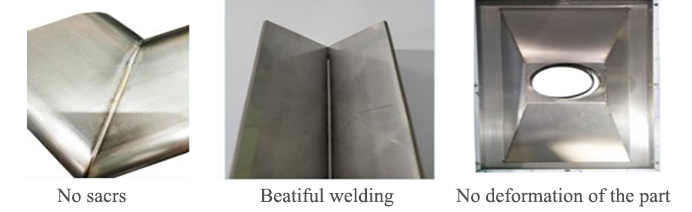

4) The welding seam is smooth and beautiful, which reduces the subsequent grinding process and saves time and cost.

5) No deformation, no weld scar, welding firmly.

6) Safer and more environmentally friendly.

7) We independently developed welding head, which made up for the disadvantage of small laser spot, expanded the tolerance range of processing parts and weld width, and obtained better weld formation.

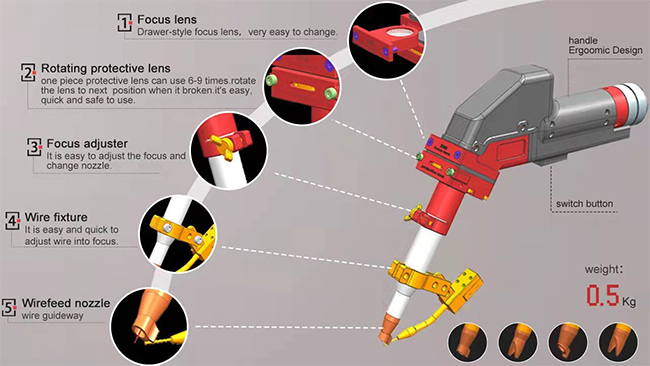

Details:
1) Self-developed super mini head, 0.5kg.
2) Original rotating lens design, 6 times the service life.
3) Original wire feeding fixture, flexible and convenient wire feeding switching, convenient focusing
4) Industrial control PLC, system linkage control wire feeding, wire feeding is more accurate.
5) High-precision stepping motor, four-wheel drive wire feeding structure.
6) Patented cabinet, good heat dissipation, safe and beautiful inside the cable and gun head.

Machine Parameters:

Power	1000W/1500W/2000W/3000W Raycus
Wavelength	1070NM
Cable Length	Standard: 10M / Customize can up to 15M
Work Way	Continuously / Pulsed
Speed range	0-120mm/s
Water Chiller	Industrial thermostatic water tank
Working environment temperature	15-35°C
Working environment humidity	<70% without condensation
Welding depth	0-2.5mm
Weld beam width	≤4mm
Working Voltage	AV220V

	Welding Thickness of matrial
Laser power	Stainless steel	Carbon steel	Aluminum	Galvanized sheet
1000W	2.5mm	2.5mm	2mm	2.5mm
1500W	3.5mm	3.5mm	3mm	3.5mm
2000W	5mm	4.5mm	4.5mm	4.5mm
3000W	7mm	7mm	7mm	7mm

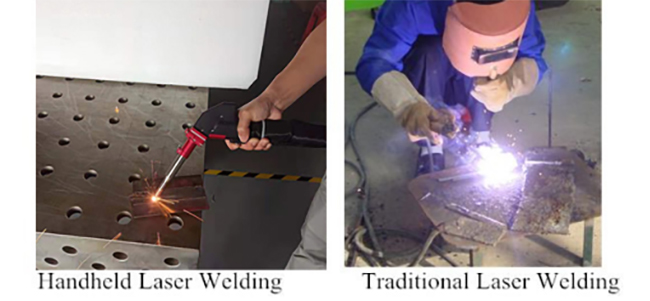

Contrast with Traditional Argon Arc Welding:

Item	Traditional welding	Yag Laser Welding	Handheld Laser Welding Machine
Heat input to the workpiece	Very high	Low	Low
Deformation of workpiece, under cut	Big	Small	Small
Bond strength with base material	Common	Good	Excellent
Subsequent processing	Polish		No or very little grinding
Welding speed	Common		fast
Applied materials	Stainless steel, Aluminum, Iron, Copper		Stainless steel, aluminum, iron, Copper
Consumables	Many	Little	Little
Operation difficulty	Complicate	Common	Simple
Operator safety	Not safe	Safe	Safe
Impact on the environment	Pollution	Environmental	Environmental
Welding fault tolerance	Good	common	Good
Wobble welding	No	No	Yes
Adjustable spot width	No	No	Yes
Welding quality	Bad	Common	Excellent
