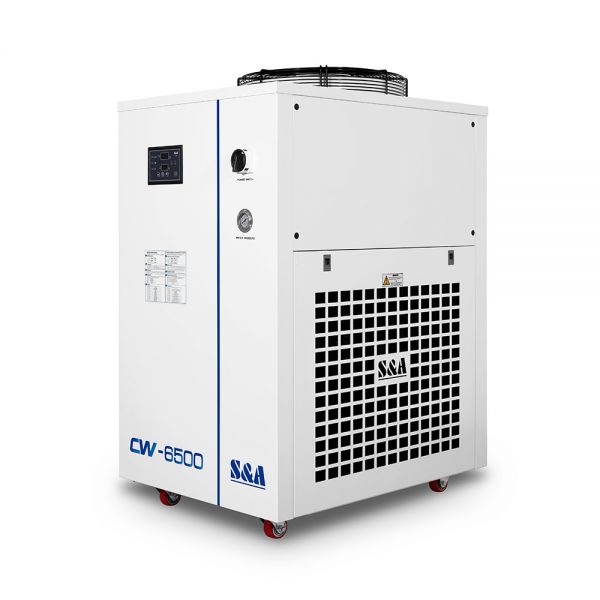

S&A CW-6500EN Industrial Water Chiller for CO2 Laser Cutting Machine (7.52HP, AC 3P 380V, 50HZ ) Cooling 500W RF Co2 laser

See larger image and other views (with zoom)

S&A CW-6500EN Industrial Water Chiller for CO2 Laser Cutting Machine (7.52HP, AC 3P 380V, 50HZ ) Cooling 500W RF Co2 laser

8500W cooling capacity, SS centrifugal pump of multistage type. Overcurrent protection for compressor, flow alarm, over temperature alarm

รหัสสินค้า:CW-6500ENTY

ราคา Unit : ฿ 217,971/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿217,971
น้ำหนักการส่ง: 606.1lb (275.52kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

Description:
CW-6500 industrial water chiller unit is highly recommended for cooling 500W RF Co2 laser.
It can provide consistent cooling while at the same time offering a high degree of energy efficiency. With this chiller, optimum cutting quality and speed of your CO2 laser cutting machine can be achieved. The core components like evaporator, condenser and outer casings are manufactured independently by ourselves to ensure high quality standard. The thoughtful details like visual water level check and the intelligent temperature controller integrated with alarm functions are the result of our close cooperation with users.

Features:
1. Cooling Capacity: 16000W
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-410a
6. Intelligent temperature controller
7. Multiple alarm functions
8. Ready for immediate use
9. Easy maintenance and mobility
10. RS-485 Modbus communication function
11. Available in 380V

Product Details:

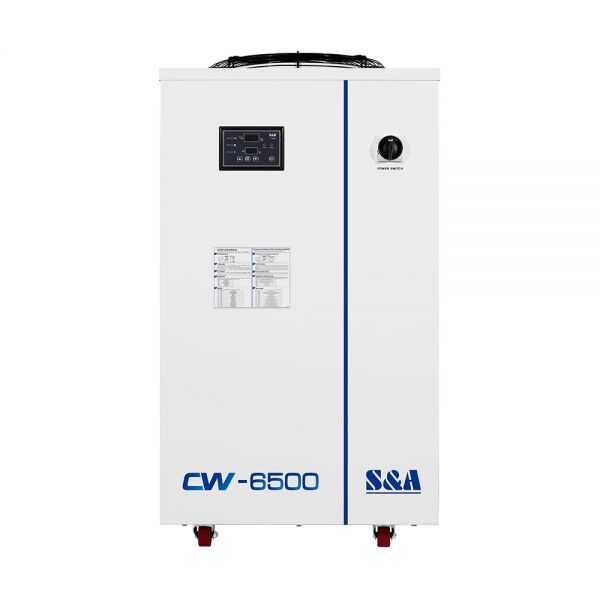

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

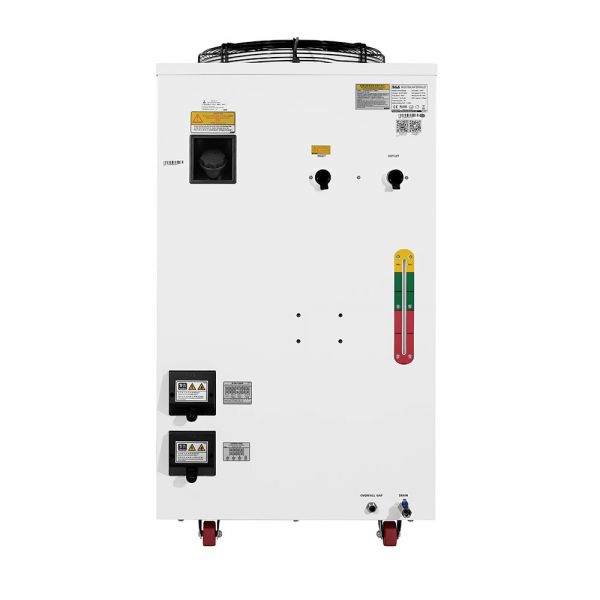

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.

Ventilation Distance

Certificate

Product Working Principle

This product has no attributes!

Q&A

Model	CW-6500EN
Voltage	AC 3P 380V
Frequency	50Hz
Current	1.4~13.3A
Machine power	6.7kW
Compressor Power	5.53kW
Compressor Power	7.52HP
Nominal cooling capacity	55786Btu/h
	16.35kW
	14057Kcal/h
Refrigerant Charge	1400g
Pump Power	0.55kW
Max. lift	44M
Max. flow	70L/min
Refrigerant	R-410a
Precision	±1℃
Reducer	Capillary
Tank capacity	70L
Inlet and outlet	Rp1"
N.W	173Kgs(381lb)
G.W	233Kgs(513.7lb)
Dimension	41.3" x 27.9" x 52.3" (105 x 71 x 133cm)
Package dimension	45.7" x 36.6" x 59" (116 x 93 x 150cm)
