SUP-300 Single Sided Dye Sublimation Card Printer
  • SUP-300 Single Sided Dye Sublimation Card Printer
  • SUP-300 Single Sided Dye Sublimation Card Printer
  • SUP-300 Single Sided Dye Sublimation Card Printer
  • SUP-300 Single Sided Dye Sublimation Card Printer
  • SUP-300 Single Sided Dye Sublimation Card Printer

See larger image and other views (with zoom)

SUP-300 Single Sided Dye Sublimation Card Printer

   |   21 Transactions

รหัสสินค้า:SIT-SUP-300

Buyer Protection

SUP-300 Single Sided Dye Sublimation Card Printer

SUP-300 sublimation card printer can easily achieve batch personalized card printing needs, adapt to a variety of different thickness cards, Perfect edge-to-edge photo-levelprinting effect, support monochrome, color printing and multiple encoding read andwrite options.
SUP-300 sublimation card printer has complete functions and reasonable structure. It supports front and back two-way card input/output. lt is equipped with multi-language driver and cardissuance management software. It can be connected to the database to issue cards in batches, reduce the cost of issuing cards, and improve the efficiency of issuing cards. Provide a completesecondary development environment, desktop window or self-service integration can satisfythe use.

Perfect effect
SUP-300 can meet card monochrome, Color printing and batch card issuance.
Support front and rear two-way card in/out. Card slot capacity 100 Card (0.76mm), front/rearcard slot Capacity 50 Card (0.76mm).
lt can also be equipped with magnetic stripe,contact and non-contact card readers.

Powerful
SUP-300 can complete photo-level high-quality direct printing effects at one time, with free card design software and drivers.
Provide a complete secondary development environment, simple and easy to use, easy torealize the docking with self-service card issuing equipment.
Fully functional,real-time monitoring of equipment status, location cards, cards margin, card emptyearly warning.

Safe and Reliable
lt can be equipped with a card slot safety lock and a body safety lock, a fully enclosed shell design, a metal movement, safe and reliable,and excellent dust-proof effect.
Unique flexible card-moving design, no hidden danger of card clamping, easy to maintain.
Small and beautiful, fast, low noise, suitable for window use and self-service integration invarious industries.

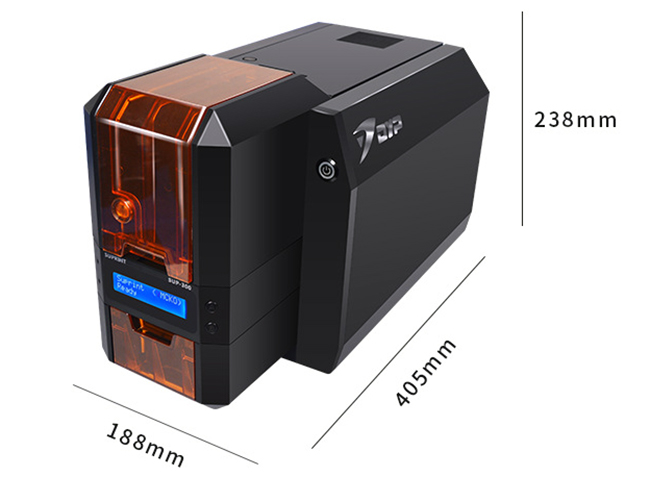

Product size:

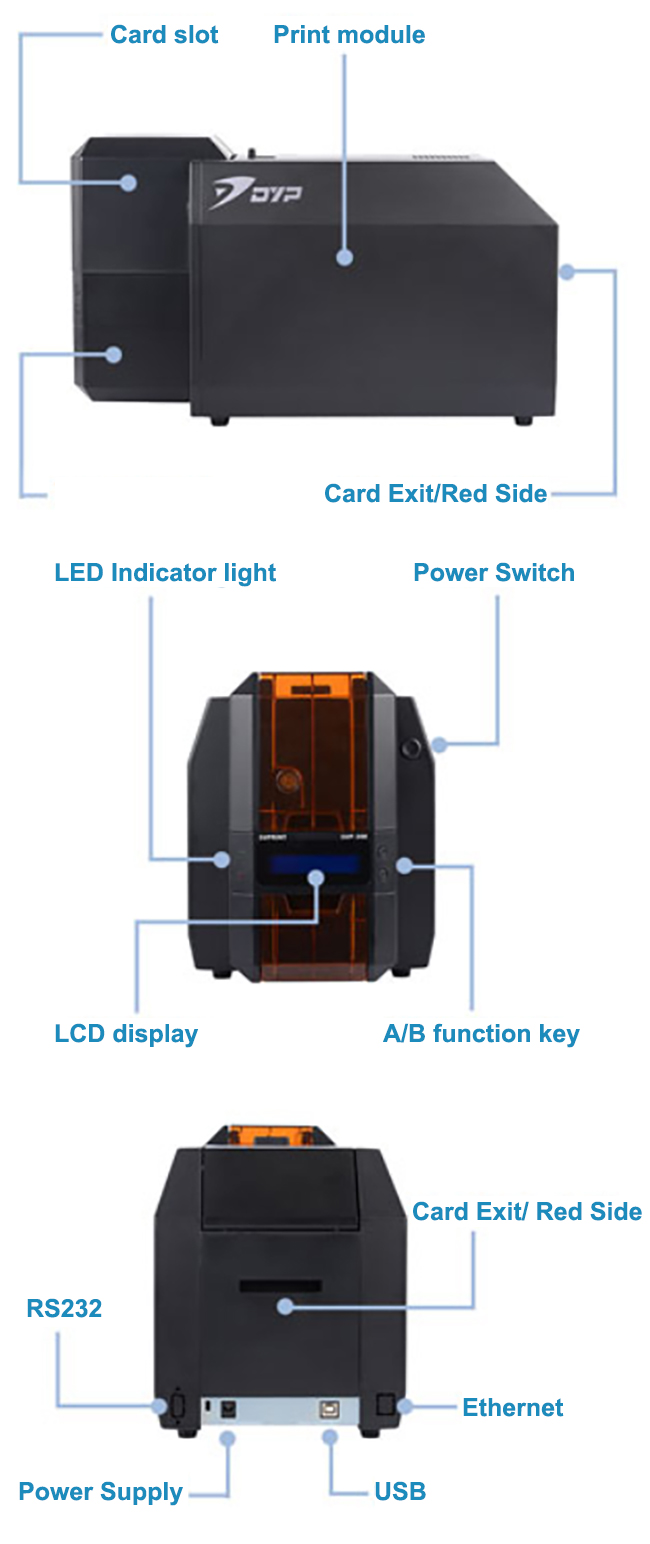

Details:

Product Specifications:

Basic parameters
- Color sublimation monochrome thermal transfer
- Edge - to - Edge Printing
- Standard 300x300dpi resolution
- Customizable 300X600dpi or 300×1200dpi resolution
- Memory: 256M

Printing Speed
- Monochrome printing: 4.8 S/Card
- Color printing: 20 S/Card

Card Support
- Card thickness: 0.3-2.0mm
- Printable size: CR-80 (53.98mmX85.60mm)
- Engraved card material: pvc or PvC composite card

Card in and Card out
- Hopper card CapacityStandard 100 sheets (0.76mm)
- Front Stacker Capacity: 50 (0.76mm)
- Rear Stacker Capacity : 50(of 0.76 mm)

Security System
- Kensington anti-theft lock hole
- Can be equipped with a safety lockinto the card slot
- Can be equipped with a safety lockon the printer cover

Optional Module
- Contact lC reader module
- RFID contactless smart card reader module
- MS magnetic stripe reading and writing module
- Support free combination

Product Features
- With the function of detecting the card emptyin the card slot
- lt has the function of detecting the full card ofthe front output box
- Support connection to database printingPhotographic printing effect
- User-friendly modular design
- Front and back two-way card in and out
- Used card recycling function and card outputretention function

Ribbon Specification
ln order to maximize the print quality and extendthe service life for the printer head to keep theprinter with reliability work. Please use the designatedspecial ribbon.
- YMCKO Full Color: 240 Cards/Roll
- YMCKO Half Color: 400 Cards/Roll
- KO Black: 500 Cards/Roll
- K Black:1000 Cards/Roll
- Golden: 1000 Cards/Roll
- Silver: 1000 Cards/Roll
- White: 1000 Cards/Roll
- Red: 1000 Cards/Roll
- Blue: 1000 Cards/Roll

lnterface
- 24V/2.5A power adapter
- USB 2.0 interface
- Ethernet interface (optional)
- RS232 interface (optional)

Panel
- 2 Line LCD Display
- 2 LED indicators (Red and Green Light)
- 2 Operation Buttons

Software and Driver
- Compatible with Windows (32/64 bit):xP SP3, vista, W7, W8,W10
- Compatible with Android and Linux systems
- SUP print driver (including parameter setting anddevice debugging function)
- CC++C#VAVA secondary development exampleand development kit

Certification and Patents
- CCC, CE, KC, FCC certification
- 15 unique national patents for appearance, utilitymodel and invention

Operating Environment
- Minimum/maximum operating temperature: 15°C/30°C(59°F/86°F)
- Temperature: 20%~65% non-condensing
- Minimum/maximum storage temperature: -5C/+70°℃ (23°F/158°F)
- Storage temperature: 20%~70% non-condensing
- Operating ventilation: natural wind

Dimensions and Weight
- Machine size: 405mmX(L)X 188(W) x 238mm (H)
- Net weight: 6Kg

Warranty
- Printer warranty for 1 years
- Printer Head warranty:
1 year or 100,000 times whichever comes first
