รหัสสินค้า:SIT-FIBER-6025H
ราคา Unit : ฿ 8,273,327/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)
น้ำหนักการส่ง: 33000.0lb (15000kg) ขนส่งสินค้า
seller assumes all responsibility for this listing
จำนวน: ประเทศ:
Shipping and handling | To | Service | Delivery* |
US $75.00 | United States | Express Delivery: TNT/DHL/FEDEX/UPS | Estimated between 3-6 Days |
Handling time |
Will usually ship within 3 business days of receiving cleared payment. |
We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china. |
|
Payment method |
|
Transaction History
Transactions: 18
Item | Parameter |
Work Area | 6000*2500mm |
X-axis Travel | 2530mm |
Y-axis Travel | 6050mm |
Z-axis Travel | 390mm |
Positioning accuracy | ±0.05mm |
Repeated positioning | ±0.02mm |
Maximum speed | 200m/min |
Maximum acceleration | 2.8G |
Machine Total weight | 15000KG |
Table maximum load | 4700KG |
Outline size | 14820*3983*2512mm |
Power parameters | 3ph AC 380V 50Hz |
Protection Level of Total Power Supply | IP54 |
Configuration:
NAME | NO. | BRAND |
FIBER LASER DEVICE | ||
Fiber laser source | 1 set | Raycus |
LASER HEAD | ||
Laser head | 1 set | Boci |
Main Machine | ||
Transmission | 4 set | LAPPING/SENFENG |
Machine bed accessories | 1 set | SENFENG |
Motor reducer | 3 set | MOTOREDUCER |
Electrical and pneumatic | 1 set | SCHNEIDER/SMC/AIRTAC |
Server motor and driver | 4 set | YASKAWA-S |
Water cooling | 1 set | HANLI |
CNC CONTROL SYSTEM | ||
Control system | 1 set | CYPCUT (FSCUT8000) |
Main Features:

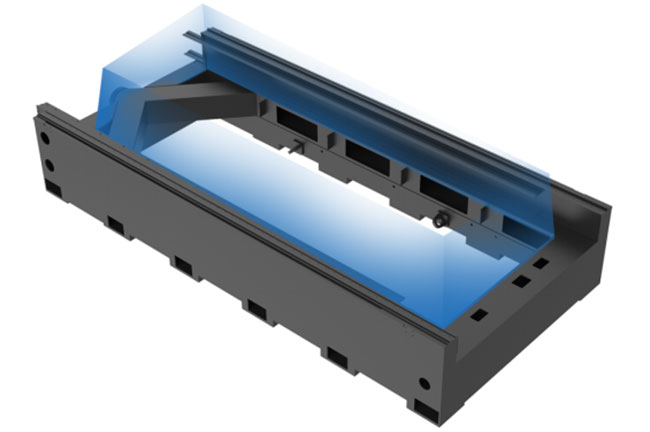

- Heavy-duty thermally isolated hollow bed
The heavy-duty thermally isolated hollow bed is welded with high-quality steel plates and pipes. After welding, stress relief annealing, secondary aging treatment, and ultra-large gantry milling machine precision processing ensure that the bed has sufficient structural stability and shock resistance. Withstand higher acceleration. There is no connection inside the bed to block heat transfer, avoiding the heat generated by cutting from being transferred to the bed and affecting the processing accuracy. The bed will not be deformed after long-term use, which improves the service life of the equipment.

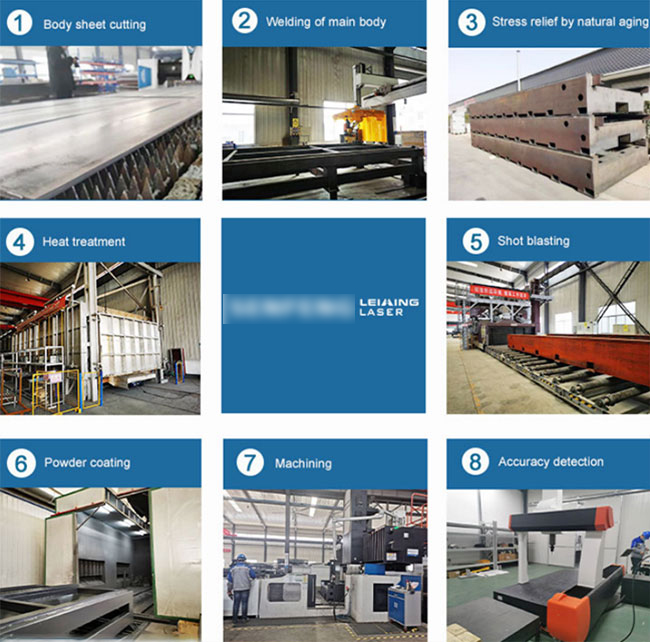

- Bed body processing process
Senfeng leiming has an independent bed production workshop. Many important process such as bed welding, heat treatment, shot blasting, cleaning, painting are all carried out in the workshop. Strictly control the quality of the bed, and timely delivery.

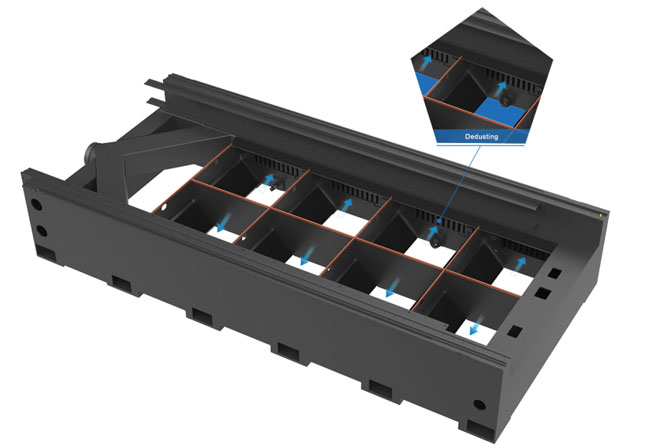

- Intelligent surrounding spiral negative pressure dust removal
Intelligent surrounding spiral negative pressure partition dust removal system, according to the current cutting position, intelligently switch the air outlet, time-sharing, partition, and sectional air exhaust, and cooperate with the back-shaped sealing structure design at the bottom of the base to realize smokeless cutting.

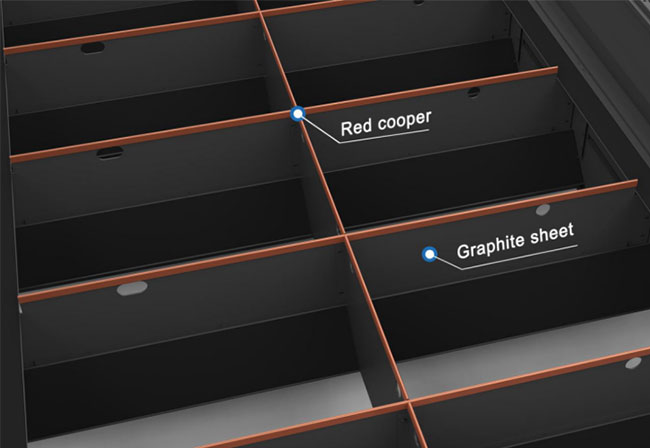

- Gaphite, copper protection(≥8000w)
The thermal conductivity of graphite is poor, which effectively prevents the machine bed from being deformed by heat and guarantees the service life.

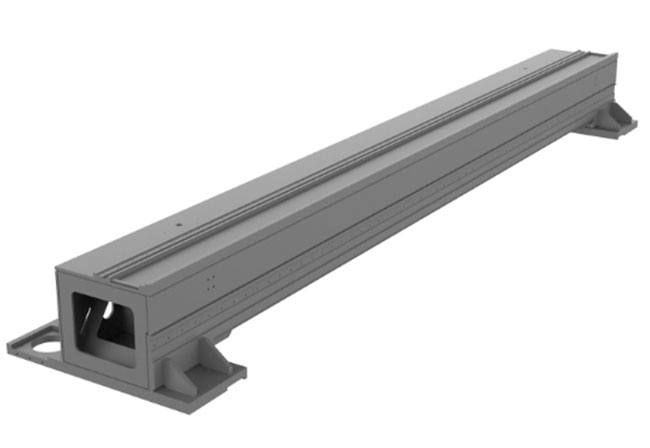

- Strong Aviation Aluminum Beam
The use of aviation-grade high-strength aluminum alloy beams, light weight, low inertia; built-in triangular reinforced structure, strong rigidity, good shock absorption; rough machining after annealing to eliminate internal stress, and fine machining after secondary vibration aging treatment to ensure Improve the overall strength and stability of the beam.
More Details:
BLT series high-power intelligent laser cutting head Adopt ultra-precision and ultra-smooth lens processing technology enables the BLT cutting head to have excellent cutting quality and speed; achieve seamless docking and deep integration with the system, further improving production and processing efficiency; modular component design, equipment on-site rapid maintenance, customers can quickly restore production capacity and realize 24-hour uninterrupted production. |
|
Raycus Laser Device It has the advantages of high electro-optical conversion efficiency (>40%), good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, and surface treatment , 3D printing and other fields. |
|
FSCUT2000S medium and high power laser cutting system Convenient installation, easy debugging, excellent performance, complete solutions, stable and reliable, easy deployment, easy debugging, safe production, rich functions, excellent performance, etc.; support and provide modular, personalized, automated, and information solutions that can be realized Memory cache, powerful cutting process database, all kinds of cutting parameters of different thicknesses and different plates, fast operation and efficient cutting. |
|
Transmission System High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque. |
|
Circuit board | |
Water Cooling System Large cooling capacity, stable performance, trouble-free, clean water quality, good heat exchange effect with fiber laser, and linkage signal to protect the laser |
|
Height Controller | |
Automatic Lubrication System 1.Lubricating the guide rails of X axis, Y axis, Z axis automatically, which could reduce maintenance cost and save time significantly. 2.Oiling time can be adjusted according to processing amount, which is more hum |
Material | Good quality thickness |
Carbon steel | 40mm |
Stainless steel | 30mm |
Brass | 25mm |
Aluminum | 20mm |
Cutting Parameters:
Material | Thickness [mm] | Speed [m/min] | Gas |
Carbon steel | 5 | 23-28 | N2/Air |
6 | 18-20 | ||
8 | 14-16 | ||
10 | 44816 | ||
12 | 44783 | ||
14 | 44720 | ||
16 | 44687 | ||
18 | 3.2-4 | ||
20 | 2.7-3.2 | ||
Carbon steel | 10 | 2-2.3 | O2 Positive focus |
12 | 1.8-2 | ||
14 | 1.6-1.8 | ||
16 | 1.5-1.6 | ||
20 | 1.3-1.4 | ||
22 | 1.2-1.3 | ||
22 | 1.4-1.5 | ||
25 | 1.2-1.4 | ||
30 | 1.2-1.3 | ||
40 | 0.6-0.9 | ||
40(Not Q235) | 0.3-0.6 | ||
50 | 0.2-0.3 | ||
60 | 0.2-0.25 | ||
70 | 0.18-0.2 | ||
80 | 0.12-0.15 | ||
Stainless steel | 1 | 50-60 | N2 |
2 | 50-60 | ||
3 | 40-45 | ||
4 | 30-35 | ||
5 | 22-24 | ||
6 | 18-22 | ||
8 | 13-16 | ||
10 | 44846 | ||
12 | 44783 | ||
14 | 44720 | ||
16 | 44687 | ||
18 | 3.2-4 | ||
20 | 3-3.2 | ||
25 | 1.5-2 | ||
30 | 1-1.2 | ||
40 | 0.5-0.8 | ||
50 | 0.2-0.3 | ||
60 | 0.15-0.2 | ||
70 | 0.1-0.13 | ||
80 | 0.08-0.1 | ||
90 | 0.05-0.06 | ||
100 | 0.04-0.05 | ||
Aluminum | 1 | 55-60 | N2 |
2 | 40-45 | ||
3 | 30-35 | ||
4 | 25-30 | ||
5 | 18-20 | ||
6 | 16-18 | ||
8 | 44846 | ||
10 | 44814 | ||
12 | 44687 | ||
14 | 44656 | ||
16 | 44624 | ||
18 | 44595 | ||
20 | 1.5-2 | ||
25 | 1-1.2 | ||
30 | 0.8-1 |
Cost analysis:
Item | Air compressor | O2 cutting | N2 cutting | |
Electricity consumption (peak power consumption) |
Laser source | 57KW | 57KW | 57KW |
Water chiller | 23KW | 23KW | 23KW | |
Exhaust fan | 22KW | / | / | |
Machine bed | 18KW | 18KW | 18KW | |
Dust removing | 5.5KW | 5.5KW | 5.5KW | |
Consumable parts & gas | ¥0.5/H | ¥4.5/H | ¥60.5/H | |
Gross power | 125.5KW | 103.5KW | 103.5KW | |
Total Power Consumption (take 60% cutting efficiency) |
75.3KW/H | 62.1KW/H | 62.1KW/H |
Product Certification:
Senfeng leiming fiber laser machines have passed CE from TÜV,ROHS,FDA,ETL certificates, which is in line with European and American standards.
