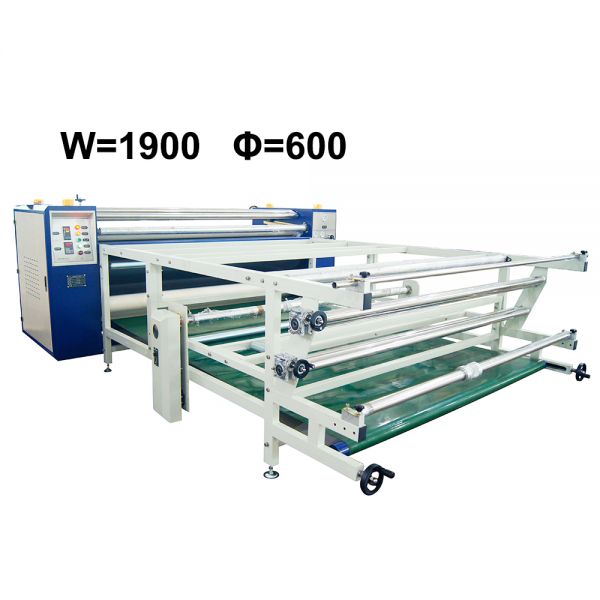

1900*800mm Digital Roller Heat Transfer Machine
  • 1900*800mm Digital Roller Heat Transfer Machine
  • 1900*800mm Digital Roller Heat Transfer Machine
  • 1900*800mm Digital Roller Heat Transfer Machine

See larger image and other views (with zoom)

1900*800mm Digital Roller Heat Transfer Machine

Autoผ้าสักหลาด

   |   13 Transactions

รหัสสินค้า:SIT-GS-R190-800

Buyer Protection
Roll diameter 200mm 420mm 600mm 800mm
Speed 30-50m/h 80-120m/h 160-220m/h 280-350m/h

1900*800mm Digital Roller Heat Transfer Machine

1900mm New upgrade 800mm diameter upper feeding conveyor roller heat transfer machine for mouse pad cutting piece

Features:
1. Digital PLC touch screen programmable control system is adopted by Taiwan Dongyuan TECO,The system has powerfulfunctions, with counter function ,accurate reading, beautiful and generous,Chinese and English can be switched.
2. Infrared independent automatic intelligent correction system, the blanket does not deviate during continuous transfer.
3. The main drum is finely ground and chrome-plated surface treatment, wear-resistant, oil temperature heat conductioninternal circulation system in the drum, uniform temperature without color difference.
4. European and American style, made with ingenuity,each shaft end is exquisitely made,high frequency processing.
5. Low voltage 24V control, built in transformer, with infrared pressure defense hands device, safe and long life.

Details:
Teflon coating surface on oil drum
100% seamless roller. the outer roller linner roller is dealt with precislion work, and then plated Teflon,to ensure consistent temperature of each point. Seamless steel drum can provide more heat uniformity, no chrormatism, saving the power 20%-30%. Keep the performance printed no color difierence.

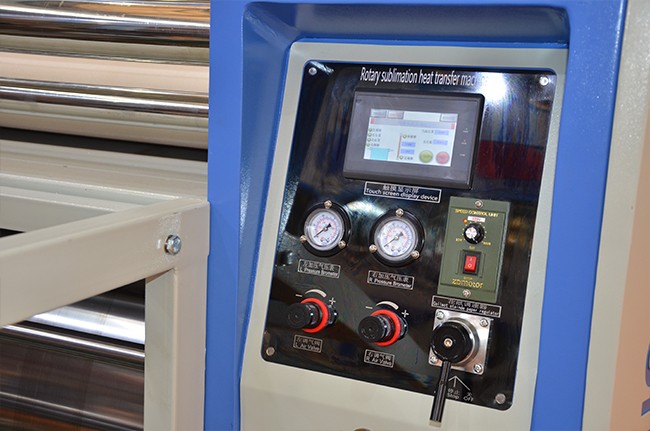

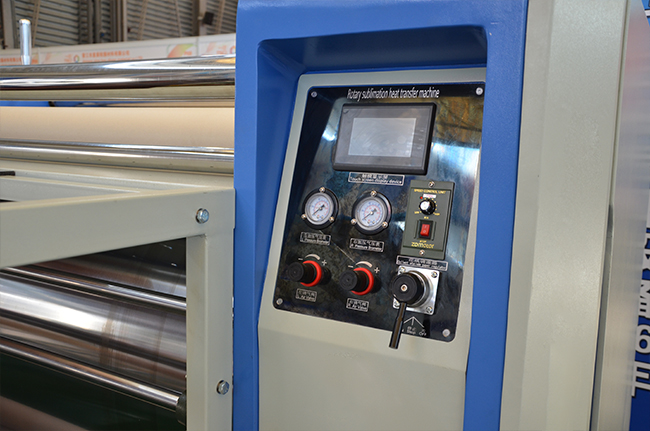

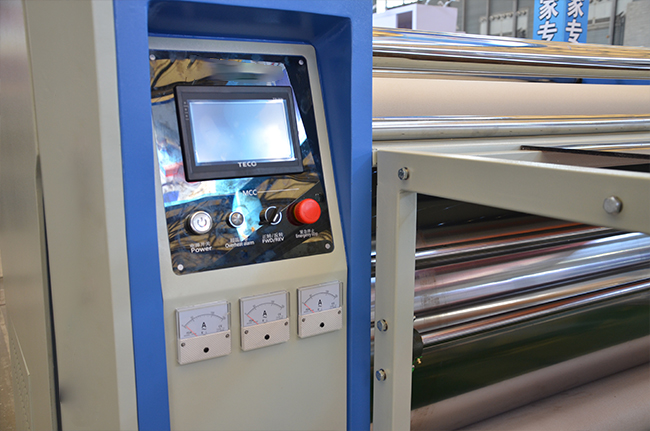

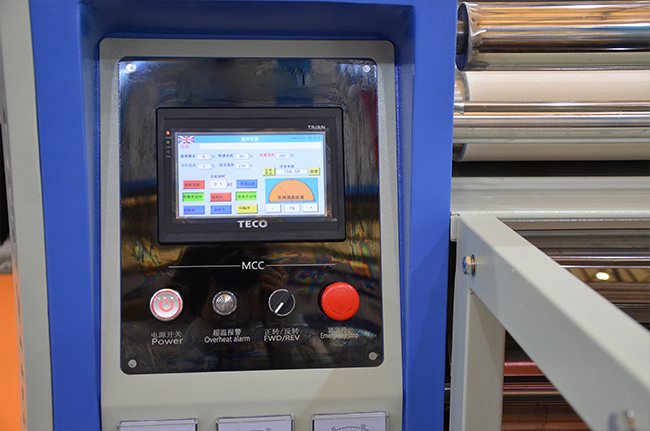

Intergrated intelligent controller panel
Frequency convertor, Temp. control, roller speed adjustor.

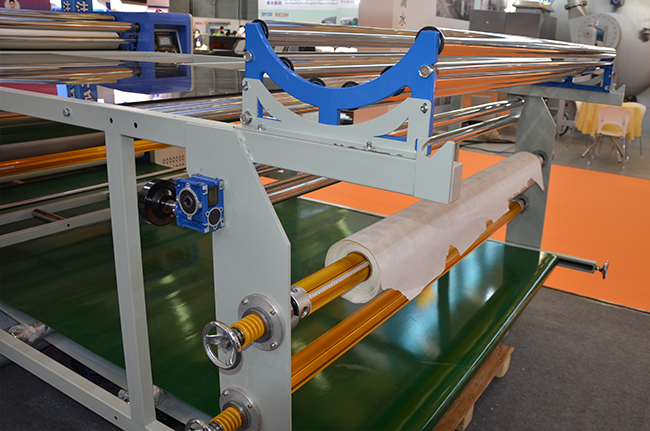

 Air inflation expanding shaft for unwind/rewind
Imported Dupon material blanket/felt
Up to 60% blanket coverage, High efficiency output and printing speed fast. Top quality blanket with high temperature resistence, it can be use lang life.

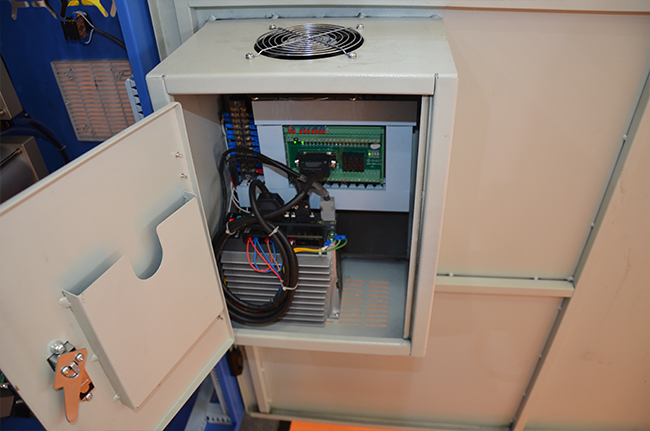

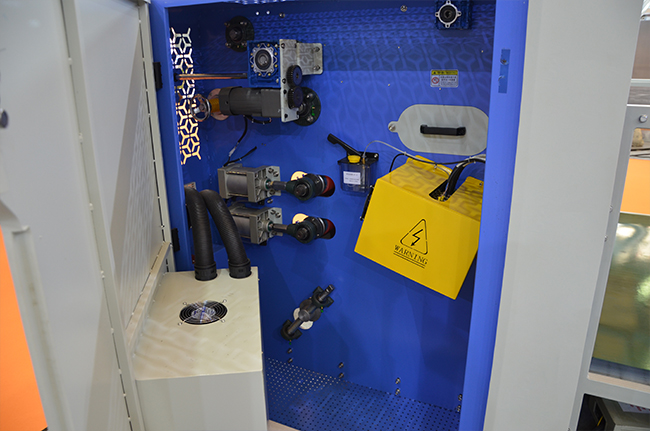

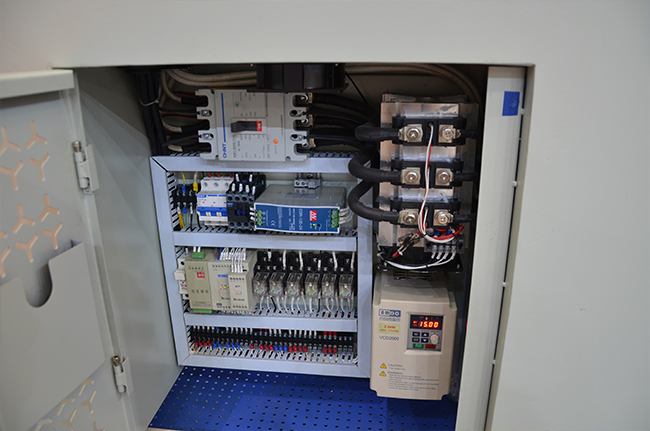

External electric control box
Fmous component part, heating sink linked together, it can be cooler soon. Lower power, power saving. Safety operation, money saving.

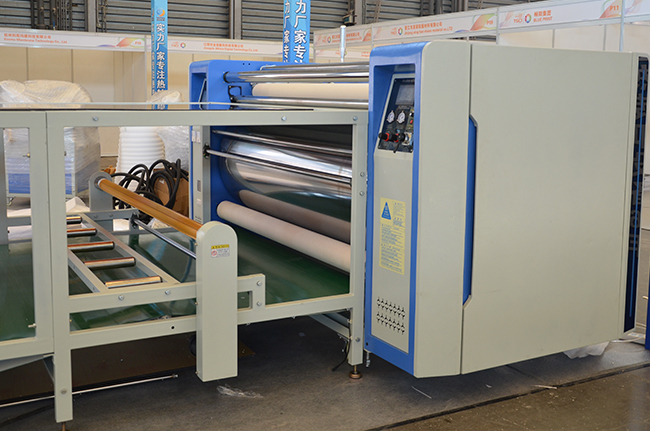

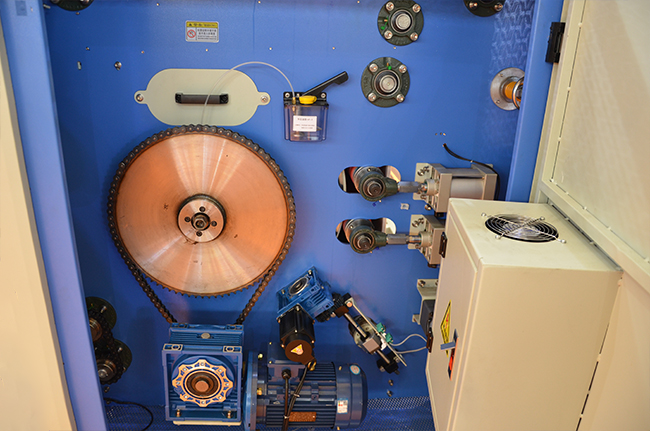

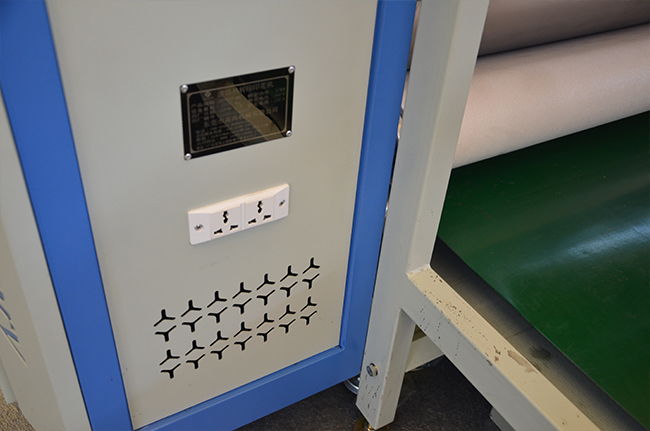

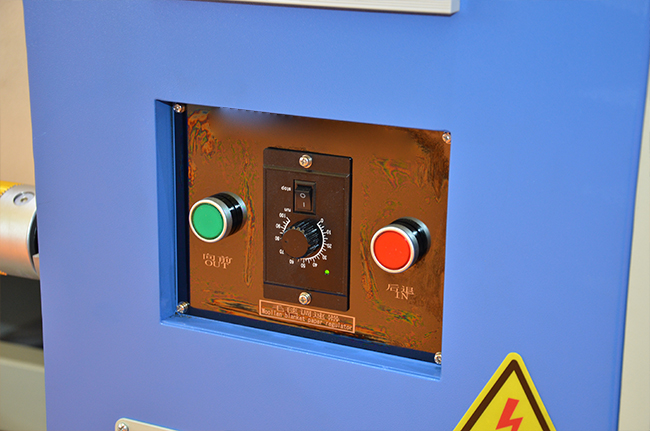

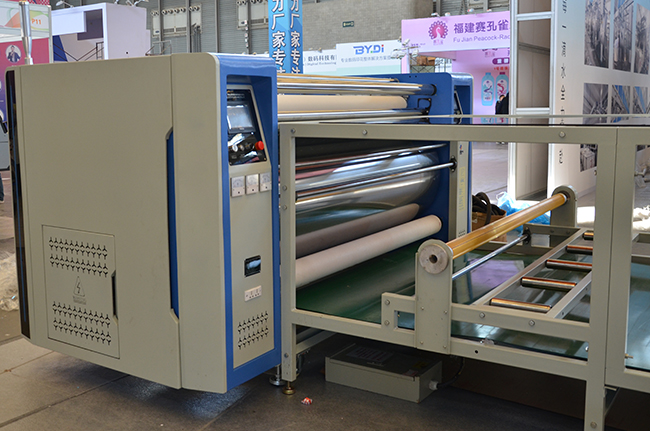

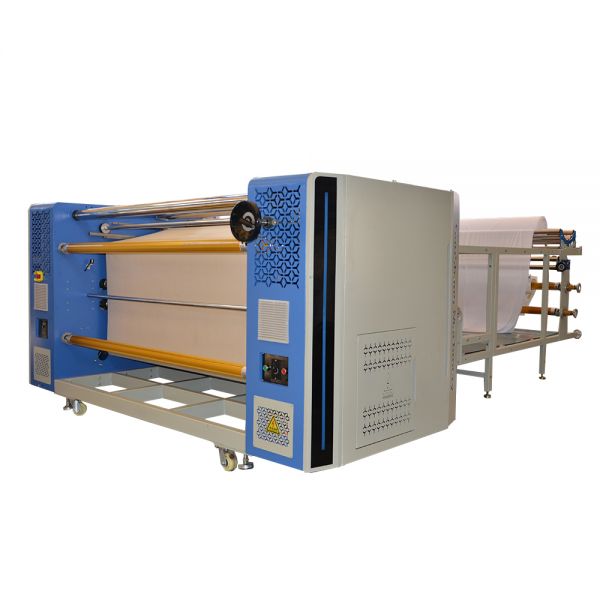

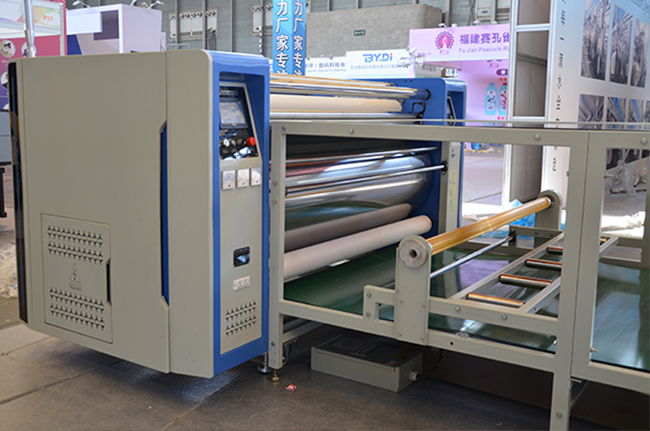

Product photos:
Specification:

Mode(CM) Voltage(V) Power(KW) Temp.Range(°C) Worktalbe Size(M) Working Pressure(KG/CM²) Packing size(CM)
80x190 220 80 0-399 3.35 0-8 315x153x195
