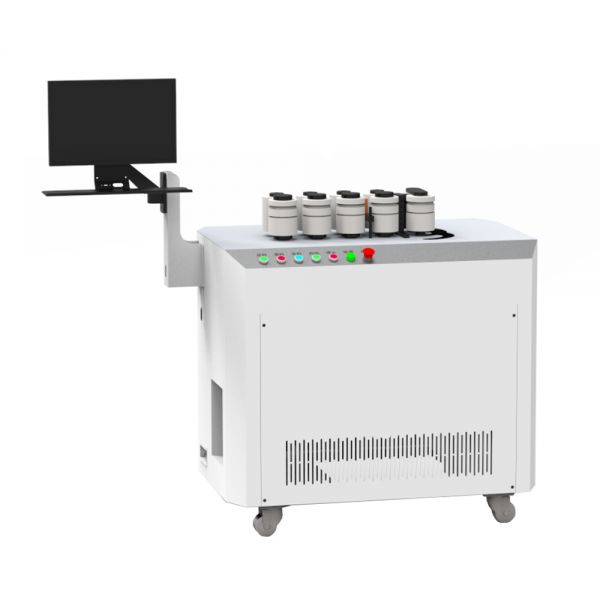

AD150 Automatic Rounding Bending Machine
  • AD150 Automatic Rounding Bending Machine

See larger image and other views (with zoom)

AD150 Automatic Rounding Bending Machine

   |   18 Transactions

รหัสสินค้า:SIT-ZW-AD150

  • ราคา Unit : ฿ 340,762/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • จำนวน: set(s) Total Cost: ฿340,762
  • น้ำหนักการส่ง: 880.0lb (400kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

AD150 Automatic Rounding Bending Machine

Introduction:

Automatic Rounding Bending Machine is used to bend aluminum alloy sections ,machine is controlled by computer,humanized software has more practical function for customer. Machine software is easy to learn and operate,it is used to process Frame、mirror frame、Decorative picture、Ceiling、lamps and lanterns、Advertising、Furniture and metal forming industry.

Tips: PC not included


Specification:

Model AD150
Feed Speed 150mm/s
Feed Accuracy ±0.2mm
Bend Axis Torque 400N·M
Die Axis Length 120mm
Min Bend radius 50mm
Control System Autodrive Automatic Bending System
Machine Size L1100mm*W700mm*H1150mm
Package Size L1250mm*W840mm*H1270mm
Machine Watt 2.3KW
Voltage 220VAC
Gross Weight 400Kg
Shape Circle、ellipse、runway circle、polygon and irregular figure
Material Aluminum profile、Stainless steel
Industry Application Frame、mirror frame、Decorative picture、Ceiling、lamps and lanterns、Advertising、Furniture and metal forming industry

Details:

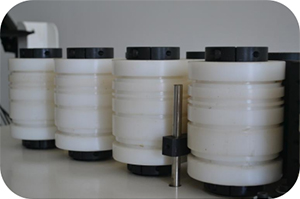

Feed Structure
Feeding axis is made of four sets nylon. Gear drivers Rolling continuous feeding structure,fast speed,for example, if we process a 300mm circle, it just spend 9.84 second.

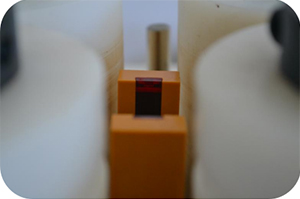

Material Home Functional
Special design for material detector switch, when material is not enough longer, software will remind you to add new material.

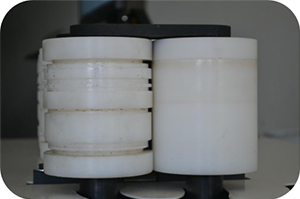

Bend Structure
Servo motor provide enough power to bend material, when machine is working,servo motor will turn to suitable angle, then machine will start to bend the curve of shape.

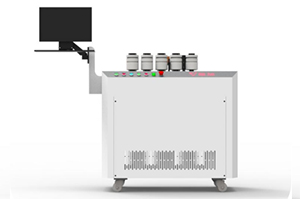

Machine Frame
Machine frame is made up of sheet metal parts (1.2mm),machine keel is welded by square tube ( 2.0mm ) with pulley,so we can move machine easily. About mechanical part, it is made up of 20mm thick carbon steel by CNC, Thus, the accuracy and rigidity of transmission and functional components are ensured, so that the equipment has good stability and service life.

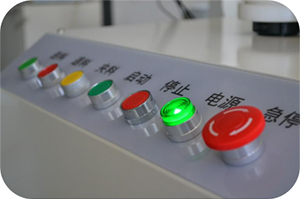

One-button start function
Update the operational procedure, Touch - tone control pattern, when we need to change the dies of aluminum profile, we can save time, more safety, more convenient.

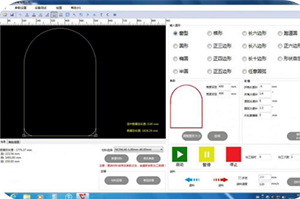

Software
More humanize control software, more easy to operate, one machine will help you to build assembly line,more higher productivity, easy to change the data when you use different material, no need to test again.

Semi-finished Product:

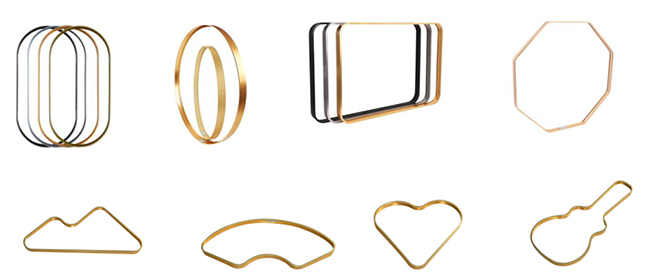

Sample Show:
