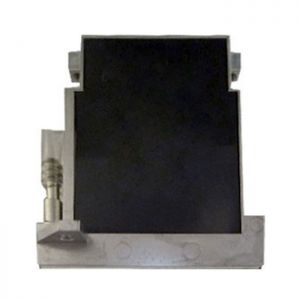

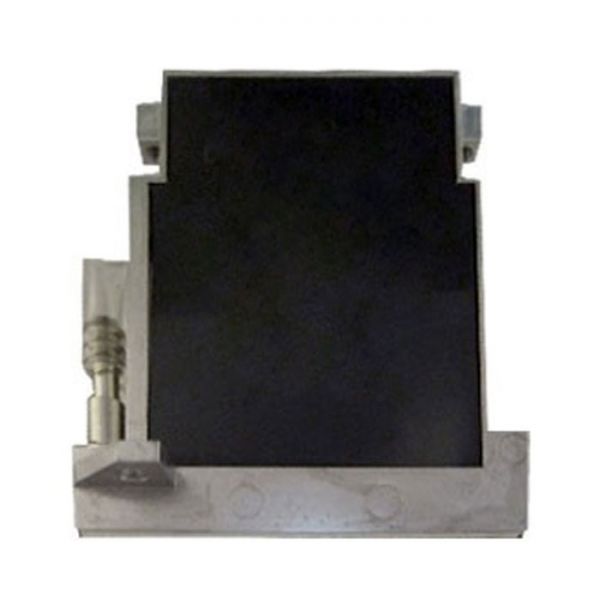

หัวพิมพ์   UV   Konica KM512 LH 42PL --- Konica KM512 LH 42PL UV printhead
  • หัวพิมพ์   UV   Konica KM512 LH 42PL --- Konica KM512 LH 42PL UV printhead

See larger image and other views (with zoom)

หัวพิมพ์ UV Konica KM512 LH 42PL --- Konica KM512 LH 42PL UV printhead

   |   150 Transactions

รหัสสินค้า:PRH-KON-010

Buyer Protection

หัวพิมพ์ที่มีปัญหาขาดไม่เกิน2% ไม่ถือว่าคุณภาพมีปัญหา ไม่สามารถเปลี่ยนหรือคืนได้

หัวพิมพ์   UV   Konica KM512 LH 42PL
หมายเหตุ:  สินค้าของแท้
หัวพิมพ์นี้      มีความทำงานด้วยระบบ   piezo โดยปริมาณการหยด   ขึ้นอยู่กับความต้องการ    ในการพิมพ์        ซึ่งสามารถใช้งานได้     ด้วยโหมดไบนารีเท่านั้น
 มีจำนวน  512 หัวฉีด    พร้อมมีขนาดหยดหมึก    42   พิโคลิตร    และความละเอียดที่   360   dpi   สามารถใช้งานได้       กับหมึกชนิดน้ำมัน  ,  และ  หมึก  UV  และสามารถใช้งานได้กับ   หมึก  solvent  เป็นอย่างดี    สามารถรองรับความร้อนได้ถึง    55°C.


การใช้งาน  :  สำหรับเครื่องพิมพ์    Dilli Neo Titan UV-1606W, Docan 2512 UV (only for white ink) / 2518 UV (only for white ink) / 2518-16 UV (only for white ink) / 3020 UV (only for white ink), Gerber Solara Ion V / Solara Ion X, Grapo Manta Slim / Octopus II, Leopard UVB, Ampla Digital Targa Pro, Flora F1 320UV


รายละเอียด
- เทคโนโลยี    : Piezo Electric  ขึ้นอยู่กับความต้องการ
- ความละเอียด   สูงสุด   :  360     dpi
- ขนาดหยดหึก  :   42  พิโคลิตร
- ขนาด  หยดหมึก  : 25-30 พิโคลิตร
- ปริมาณหัวพ่น  :   512 ช่อง  (   256   หัวฉีดต่ิอสาย  )
- ระยะห่าง   หัวพ่น  :   70.5 ไมครอน
-ความกว้างการพิมพ์  :  36.1  ม.ม.
- ความถี่  การยิ่ง   :   7.6 kHz
- หมึกที่ใช้งานได้ :   หมึกน้ำมัน   , Solvent หมึก  UV








Konica KM512 LH 42PL UV printhead
This print head is a robust, shear mode, piezo on-demand print head that is usable in binary mode only. It has 512 nozzles with a droplet size of 42 pico litre and a native resolution of 360 dpi. It has an integrated heater, which makes it ideal for oil based and UV inks, but it works with solvent ink as well. The heater can be heated up to 55°C.
To be used with:
Dilli Neo Titan UV-1606W, Docan 2512 UV (only for white ink) / 2518 UV (only for white ink) / 2518-16 UV (only for white ink) / 3020 UV (only for white ink), Gerber Solara Ion V / Solara Ion X, Grapo Manta Slim / Octopus II, Leopard UVB, Ampla Digital Targa Pro, Flora F1 320UV
Remarks: Original


Specification:
• Technology: On-Demand Piezo Electric
• Native Resolution: 360 dpi
• Cal. Droplet Size: 42 pico litre
• Tot. Amount of Nozzles: 512 (256 nozzles per line)
• Nozzle Spacing: 70.5 microns
• Print Width: 36.1 mm
• Firing Frequency: 7.6 kHz
• Ink Compatibility: Oil Based, Solvent and UV Inks
• Heater: integrated



หมายเหตุ :
1.สำหรับ  สินค้าหัวพิมพ์    ต้องให้ช่างผู้ชำนาญ    เป็นคนติดตั้ง     หากไม่ได้รับการติดตั้ง    โดยช่างผู้ชำนาญ     ทางเราจะไม่รับผิดชอบใดๆ
2.โดยปกติ    หากชิ้นส่วนอะไหล่    รวมถึงปัจจัยหลายด้าน      ได้เข้าสู่การติดตั้ง      ลงบนเครื่องพิมพ์แล้ว      เราจะไม่คืนเงิน   หรือรับเปลี่ยนสินค้าใดๆ      ในส่วนของด้านอิเล็คโทนิค       หรือชิ้นส่วนอะไหล่บริการ       ดังนั้นเมื่อคุณได้รับสินค้า        โปรดตรวจสอบความเสียหาย    ก่อนรับสินค้า     ซึ่งหากคุณพบความเสียหาย   หรือปัญหาใดๆ     โปรดปฎิเสธ   การรับสินค้า    และโทรแจ้งเรา   ที่เบอร์ 089-199-9408  หรือ 02-9359453
3.เมื่อทำการสั่งซื้อสินค้า     หัวพิมพ์จากทางเรา     โปรดตรวจสอบข้อมูล     รุ่นของหัวพิมพ์    และหากเมื่อได้รับรายการสินค้า   ของคุณแล้ว โปรดตรวจสอบสินค้าหัวพิมพ์    ว่าสามารถเข้ากันได้     กับรุ่นที่คุณต้องการหรือไม่     ถ้าหากคุณพบปัญหาใดๆ    โปรดติดต่อเราโดยเร่งด่วน   เท่าที่สามารถจะทำได้       ก่อนที่จะทำการติดตั้งสินค้า     หัวพิมพ์ลงบนเครื่องพิมพ์     เนื่องจากว่าหากหัวพิมพ์     ได้ทำการติดตั้งลงบนเครื่องพิมพ์แล้ว    เราจะไม่คืนเงิน     หรือรับเปลียนสินค้า
4.การติดตั้ง    หัวพิมพ์       คิดค่าบริการ   1500    บาท     เฉพาะในเขตกรุงเทพ ฯ   สำหรับต่างจังหวัด     ฟรีค่าบริการเซอร์วิส     เฉพาะ สาขาภูเก็ต    หาดใหญ่    สุราษฐ    เชียงใหม่    เชียงราย   พิษณุโลค     ขอนแก่น      สำหรับจังหวัดอุบลราชธานี      ลูกค้าจำเป็น  ต้องรับผิดชอบ    ค่าเดินทาง       และค่าที่พัก
5.วันหยุดราชการ      หากต้องการ       ให้ทางเราไปบริการเซอร์วิส     ทางเราคิดค่าบริการเซอร์วิส      แยกต่างหากครับ
