S&A 3.73HP, AC 1P 220V, 50HZ CW-6300AN Industrial Water Chiller (for Single 300W YAG Laser, 300W CO2 RF Laser, 300W Laser Diode Cooling)
  • S&A 3.73HP, AC 1P 220V, 50HZ CW-6300AN Industrial Water Chiller (for Single 300W YAG Laser, 300W CO2 RF Laser, 300W Laser Diode Cooling)
  • S&A 3.73HP, AC 1P 220V, 50HZ CW-6300AN Industrial Water Chiller (for Single 300W YAG Laser, 300W CO2 RF Laser, 300W Laser Diode Cooling)
  • S&A 3.73HP, AC 1P 220V, 50HZ CW-6300AN Industrial Water Chiller (for Single 300W YAG Laser, 300W CO2 RF Laser, 300W Laser Diode Cooling)
  • S&A 3.73HP, AC 1P 220V, 50HZ CW-6300AN Industrial Water Chiller (for Single 300W YAG Laser, 300W CO2 RF Laser, 300W Laser Diode Cooling)
  • S&A 3.73HP, AC 1P 220V, 50HZ CW-6300AN Industrial Water Chiller (for Single 300W YAG Laser, 300W CO2 RF Laser, 300W Laser Diode Cooling)
  • S&A 3.73HP, AC 1P 220V, 50HZ CW-6300AN Industrial Water Chiller (for Single 300W YAG Laser, 300W CO2 RF Laser, 300W Laser Diode Cooling)

See larger image and other views (with zoom)

S&A 3.73HP, AC 1P 220V, 50HZ CW-6300AN Industrial Water Chiller (for Single 300W YAG Laser, 300W CO2 RF Laser, 300W Laser Diode Cooling)

8500W cooling capacity, SS centrifugal pump of multistage type. Overcurrent protection for compressor, flow alarm, over temperature alarm

รหัสสินค้า:CW-6300ANTY

  • ราคา Unit : ฿ 70,561 - 80,183/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 40-55 วัน)

    ราคาขายส่ง :
    • จำนวน (sets) ส่วนลด Amount/set
      1. 1 0% ฿80,183
      2. 2 - 3 7% ฿74,570
      3. 4 - 8 12% ฿70,561
    • Need more quantities, please click Bulk Order
  • จำนวน: set(s) Total Cost: ฿80,183
  • น้ำหนักการส่ง: 363.0lb (165kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection



Description:
S&A CW-6300 series is high-precision compression refrigeration small water chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system. S&A industrial water chillers are popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature. With that 1 key solution, customers no longer need to worry about the water temperature adjustment of seasonal changes.

Features:
1. Cooling Capacity: 8500W
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-410a
6. Intelligent temperature controller
7. Multiple alarm functions
8. Ready for immediate use
9. Easy maintenance and mobility
10. RS-485 Modbus communication function
11. Available in 220V or 380V

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

PROUCT PARAMETERS
Model CW-630AN
Power Supply AC 1P 220V, 50Hz
Current 3.4~18.1A
Machine powe 3.44KW
Compressor Power 2.64KW, 3.59HP
Nominal cooling capacity 26826Btu/h, 7.86kW, 6758Kcal/h
Refrigerant 2150g
Refrigerant Charge R-410a
Precision ±1℃
Tank Capacity 40L
Reducer Capillary
Pump Power 0.55KW
Inlet and Outlet Rp1"
Max.lift 44M
Max.flow 70L/min
Net Weight 118KG(260lb)
Gross Weight 145KG(320lb)
Dimension 32.7" x 25.6" x 46.1" (83 x 65 x 117cm)
Package Dimension 37.4" x 33.1" x 53" (95 x 84 x 134cm)

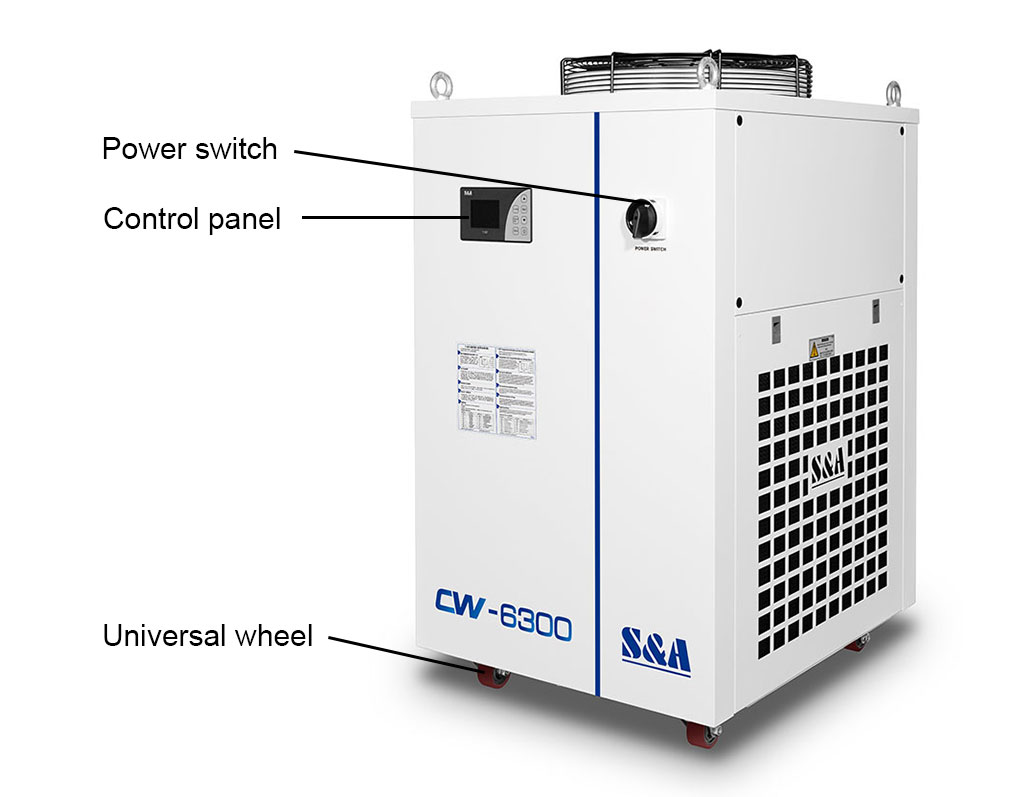

Product Details

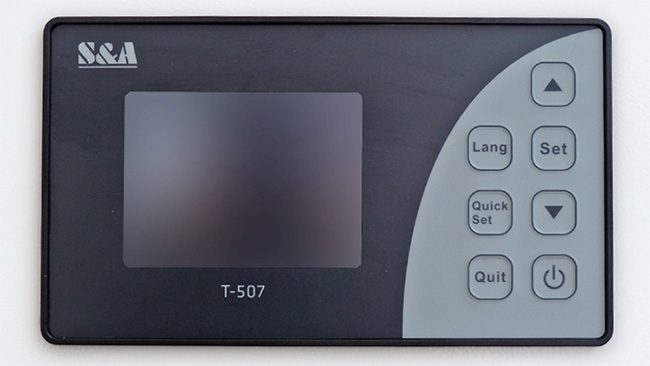

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±1°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

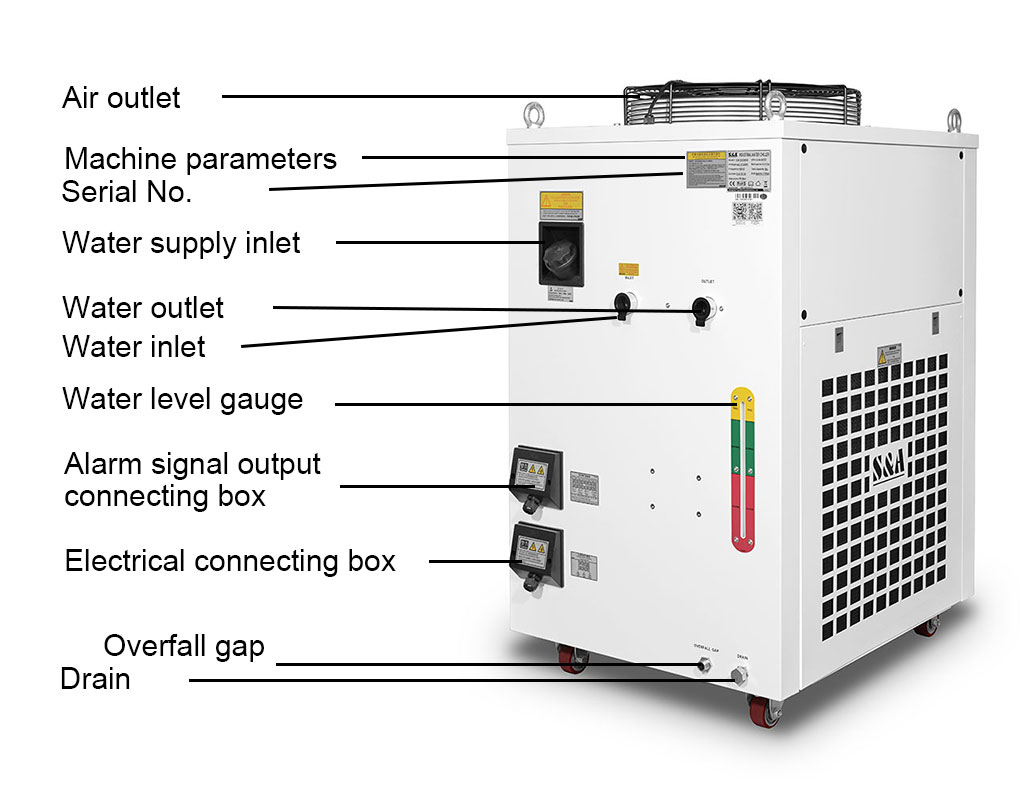

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

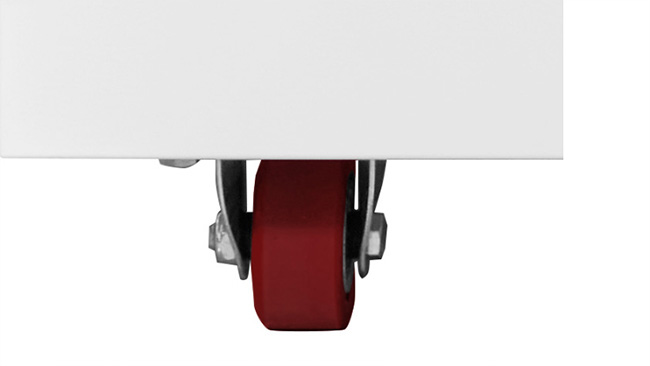

Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.

Cooling fan of famous brand installed with high quality and low failure rate.
Customized dust gauze available and easy to take apart.


Ventilation Distance

Certificate

Product Working Principle
