ชุดเครื่องมือถ่ายโอนความร้อนหมวก /Cap Heat Press Kit
  • ชุดเครื่องมือถ่ายโอนความร้อนหมวก /Cap Heat Press Kit
  • ชุดเครื่องมือถ่ายโอนความร้อนหมวก /Cap Heat Press Kit

See larger image and other views (with zoom)

ชุดเครื่องมือถ่ายโอนความร้อนหมวก /Cap Heat Press Kit

   |   24 Transactions

รหัสสินค้า:CS-HTS-002

Buyer Protection

รายละเอียด:

เครื่องนี้สามารถใช้ถ่ายโอน หมวกที่ไม่ใช่ผ้าฝ้าย ( เช่นโพลีเอสเตอร์และเส้นใยเคมี และอื่นๆ)

กระดาษระเหิด และหมึกระเหิดเหมาะสมสำหรับหมวกที่ไม่ใช่ผ้าฝ้าย. กระบวนการแรกพิมพ์รูปที่คุณต้องการในกระดาษระเหิดโดยเครื่องพิมพ์ piezoelectric (เช่น เครื่องพิมพ์ Epson), จากนั้นวางกระดาษอย่างเรียบบนหมวก, ท้ายสุด ถ่ายโอนภาพไปสู่หมวกโดยระบบถ่ายโอนความร้อน, จะต้องทำสีให้ติดแน่นเพื่อจบกระบวนการ.

 ถ้าคุณต้องการถ่ายโอนหมวกผ้าฝ้ายบริสุทธิโดยการพิมพ์ถ่ายโอนความร้อน, คุณจะต้องใช้กระดาษพิเศษสำหรับผ้าฝ้าย. ผ้าที่มีสีสว่างจะต้องถ่ายโอนโดยกระดาษระเหิดพิเศษ จากนั้นพิมพ์รูปบนกระดาษระเหิดและวางกระดาษให้เรียบบนหมวกทำความร้อนโดยเครื่องถ่ายโอน. ท้ายสุดถ่ายโอนรูปบนหมวกคุณก็จะทำกระบวนการทั้งหมดสำเร็จ

รู้สึกเป็นอิสระในการถ่ายโอนฟิล์มถ่ายโอนพิเศษ, การถ่ายโอนไม่ได้กำหนดสีของวัสดุ. อย่างแรกพิมพ์รูปไปสู่ฟิล์มถ่ายโอนพิเศษโดยใช้เครื่องพิมพ์หมึกกันน้ำหลังจากนั้นถ่ายโอนฟล์มรูปไปสู่หมวกผ่านความร้อน, การถ่ายโอนของคุณจะสำเร็จ.



Description:
This machine can be used for transferring non-cotton caps (like polyester tops and chemical fibers etc.) as well as pure cotton caps.

Sublimation paper and sublimation ink are suitable for the transferring of the non-cotton cap. The process is firstly to print the picture you want in the sublimation paper by the piezoelectric printer (like Epson printer), then put the paper smoothly on the cap, and lastly to transfer the picture to the cap through heating by heat transfer system, color fixation is must to finish the process.

 If you want to transfer pure cotton cap by heat transfer printing, you have to use special transfer paper fit for cotton clothes. Clothes in light color must be transformed by using the sublimation paper special for the light color ones, or vice versa. Then to print the picture into `the` sublimation paper on which there is thin film for printing pictures, and put the printed paper smoothly on the cap to be heated by the heat transfer machine. Finally to transfer the pictured film to the cap, you will finish the whole process.

Feel free to transfer when using another kind of special transfer film, the transferring is not restricted by the color of the materials.  Firstly to print the picture into `the` special transfer film by using the printer containing general water-proof ink, and then to transfer the pictured film to the cap through heating, you will get your transferring finished.



Hat Heat Press Solution
ใบเสนอราคา:
  ระบบหมวกเส้นใยเคมี : 256USD / SET
 ระบบ หมวก ผ้าฝ้ายแท้ : 270USD / SET

รวมไปถึง:
. เครื่องถ่ายเท ความร้อน หนึ่งเครื่อง
. เครื่องพิมพ์ EPSON 1เครื่อง ( Epson R330 กับ แรงดันไฟฟ้าของ 220V )
. หมึกต่อเนื่องรวมถึงหมึกถ่ายโอน ความร้อน 100ml  หกสี 1 ชุด
. พัสดุของ กระดาษถ่ายโอน ความร้อน ( 100pcs / พัสดุ ) 1 ชุด

หมายเหตุ:
 . $ 46 / พัสดุ ( 100pcs / พัสดุ ) $ 80 / พัสดุ ( 100pcs / พัสดุ )
 . หมึกระเหิด : ราคา อ้างอิง : $ 72 / L
 . รู้สึกอิสระ เมื่อใช้ ฟิล์ม ถ่ายโอนความร้อน ซึ่ง ไม่ได้ถูก จำกัด ด้วยสี และวัสดุ ราคา สามารถพบได้ใน เว็บไซต์ ต่อไปนี้:
http://www.sign-in-china.com/catalogs/139/Heat_transfer_film.html
. ความแตกต่างระหว่าง ระบบการโอน หมวก เส้นใย เคมี และ สำหรับ ผ้าฝ้ายแท้ ไม่มีอะไรนอกจาก หมึกกับกระดาษถ่ายโอน
. เรามี เครื่อง ถ่ายโอน หมวก หลายชนิดให้สำหรับคุณ คุณสามารถมี ความเข้าใจที่ชัดเจน ของ ใบเสนอราคา สำหรับเครื่อง ใน เว็บไซต์ ต่อไปนี้:
http://www.sign-in-china.com/catalogs/142/T_shirt_heat_transfer_machine.html

Quotation:
 Chemical cap fibers system: 256USD/set.
 Pure cotton caps system: 270USD/set.

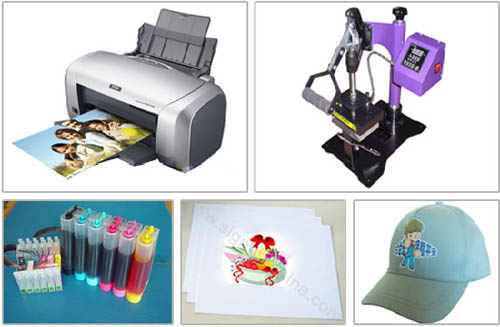

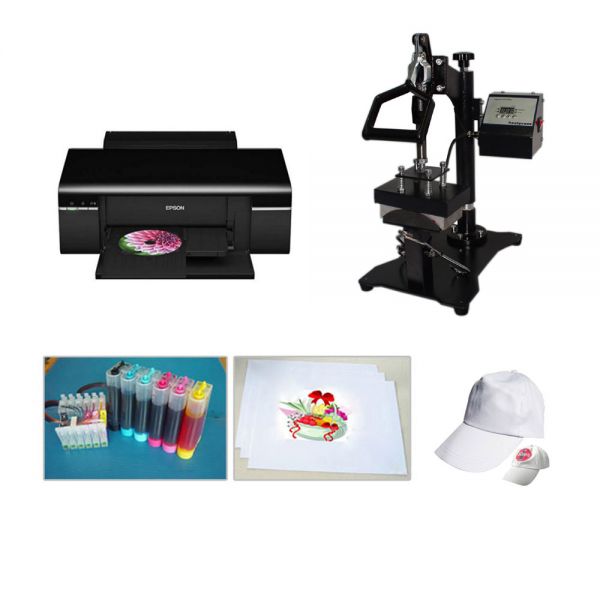

Including:
. One heat transfer machine.

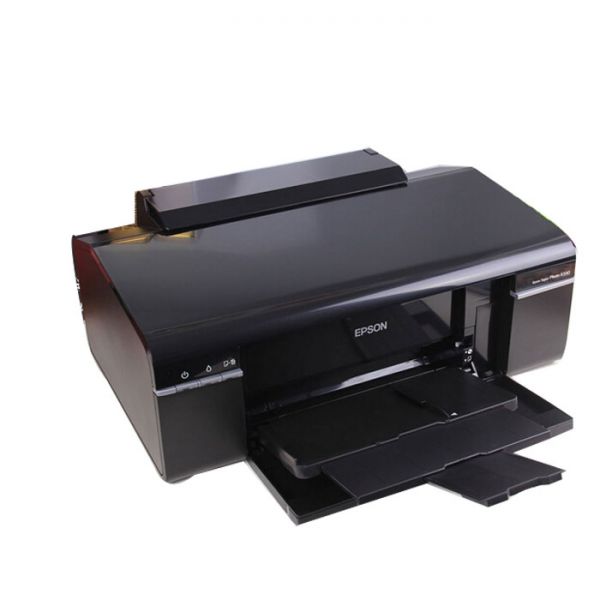

. One EPSON Printer(Epson R330 with voltage of 220V).
. One set of the continuous-ink-supply system including heat transfer ink 100ml in six-color.

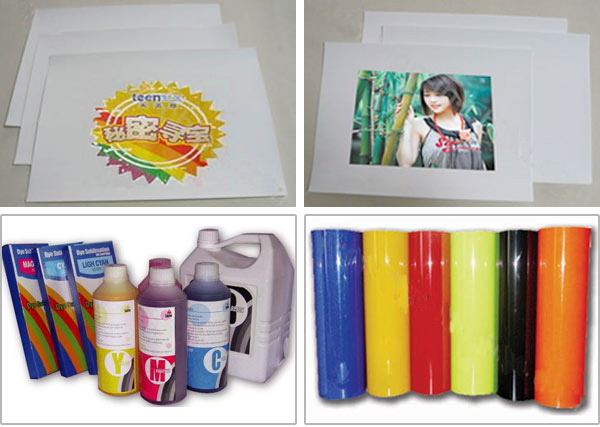

. One parcel of heat transfer paper (100pcs/parcel)

Remarks:
 . $46/parcel(100pcs/parcel), $80/parcel (100pcs/parcel)
 . Sublimation ink: Referable price: $72/L
 . Feel free when using the heat transfer film, which is not restricted by color and materials. The price can be found in the following site:
http://www.sign-in-china.com/catalogs/139/Heat_transfer_film.html.
. The difference between the cap transfer system for chemical fibers and that for pure cotton is nothing but the ink and the transfer paper.
 We have many different kinds of cap transfer machine available for you. You can have a clear understanding of the quotation for the machines in the following website:
http://www.sign-in-china.com/catalogs/142/T_shirt_heat_transfer_machine.html.

ขั้นตอนการดำเนินงาน:
. เสียบปลั๊กใช้งานเครื่องและเปิดสวิทช์
. ยึดจับเพื่อวางเปิดแผงความร้อนที่เหมาะสม (โปรดทราบ: เครื่องทั้งหมดจะต้องได้รับการสนับสนุนจากสายดินที่มีความทนทาน)
. ปรับอุณหภูมิเทอร์โมสแต็ตให้ได้อุณหภูมิที่ต้องการ (โดยทั่วไป 150 ℃ ~ 200 ℃)
. ปรับตัวตั้งเวลาเพื่อเวลาที่ต้องการ (มักจะ 5 วินาทีถึง 20 วินาที)
. ดึงมือจับแรงดันขึ้นและคุณจะพบแผงร้อนแล้วดึงออกจากโต๊ะทำงานและใส่เสื้อยืดที่จะโอนบนโต๊ะทำงานได้อย่างราบรื่น ใส่ฝาปิดในใต้ Pyrography แผงแล้วใส่กระดาษถ่ายโอนภาพบนเสื้อยืด (โปรดทราบด้านหน้าและด้านหลังของกระดาษถ่ายโอนความร้อน Pyrography ควรอบอุ่นขึ้นเป็นส่วนหนึ่งที่จะโอนเพื่อให้ผิวเรียบเนียนทำให้การถ่ายโอนงานที่มีคุณภาพสูง.) แล้วคุณใส่แผงด้านหลังเครื่องทำความร้อนและดึงลง ความดันจัดการอย่างรุนแรงจนจบ
. เมื่ออุณหภูมิถึงตัวเลขการตั้งค่าก็จะแจ้งเตือนและแผงร้อนจะหยุดทำงานโดยอัตโนมัติแล้วคุณควรดึงออกจากโต๊ะทำงาน
. ตัดออกไปกระดาษ Pyrography และกระบวนการเสร็จสิ้น

The operating steps:
. Plug in the machine and turn on the switch.
. Strongly take hold of the handle to lay open the heating panel right. (Attention: the whole machine must be backed up by sturdy earth wire.
. Adjust the thermostat temperature to the wanted temperature ( generally 150℃~200℃)
. Adjust the timer to the wanted time (usually 5seconds to 20 seconds)
. Pull up the pressure handle and you will find the heating panel, then pull out the worktable and put the T-shirt to be transferred on the worktable smoothly. Put the cap on the beneath pyrography panel, and then put the pictured transfer paper on the T-shirt. (Attention: the front and back of the heat transfer pyrography papers, should better warm up the part to be transferred to make the surface smooth, making the transferring a high-quality job.), then you put back the heating panel and pull down the pressure handle strongly until the end.
. When the temperature reaches the setting figure, it will alarm and the heating panel will stop working automatically, then you should pull out the worktable.
. Strip away the pyrography paper and the process is finished.


ข้อควรระวัง :
เมื่อโอน ถ้า กระดาษ Pyrography มีความเหมาะสม สำหรับการ ลอกออกไป เมื่อเย็น ลงคุณ ต้องเช็ด กระดาษ Pyrography โดยใช้ ยางลบ กระดานดำ แล้วรอ 5 ถึง สิบวินาที จะตัด มันออกไป หรือ คุณจะต้อง ตัด กระดาษ Pyrography ออกไปได้ทันที เมื่อ ความร้อน ขึ้น เพียงครั้งที่ สมบูรณ์แบบและ อุณหภูมิและความดัน สามารถทำให้ การถ่ายโอน งานที่ดี นอกจากนี้ยังมี การถ่ายโอน ยังเป็นเรื่อง ความหนาของ วัสดุ และกระดาษ Pyrography

ในฐานะที่เป็น ตลับหมึก เดิม เป็น หมึกน้ำ จากตัวแทนจำหน่ายเครื่องพิมพ์ ซึ่ง ไม่ได้นำเสนอ ตลับหมึก ระเหิด ; ที่คุณต้องทำ เปลี่ยนแปลงบางอย่างกับ ตลับหมึก เดิมที่ การกำจัด ของหมึก เดิมและ ฉีด หมึก ระเหิด
เราขอแนะนำให้ คุณใช้ หมึกต่อเนื่องเพื่อหลีกเลี่ยง กระบวนการที่ซับซ้อนของ หมึก ฉีด เพื่อ ตลับหมึก วิธีนี้คุณจะ เป็นอิสระจาก ` the` ทำงาน ซ้ำ สำหรับ การฉีด เมื่อหมึก คือการใช้ ทุกครั้ง สิ่งที่คุณต้อง ทำคือเพียงแค่ ฉีด หมึก sublimation ลง ` ขวดหมึก ` ของระบบ

ทุกชนิด ของกระดาษ Pyrography จะต้องมีการ ทดสอบเพื่อให้ ได้รับการรับรอง ก่อน การผลิตผลิตภัณฑ์
แรงดันไฟฟ้า: 220 / 110V
อุณหภูมิในการทำงาน : ปกติ



Precautions:
When transferring, if the pyrography papers are suitable for stripping away when cooled down, you have to wipe the pyrography paper by using the blackboard eraser and then wait 5 to ten seconds to strip it away. Or you have to strip away the pyrography papers right away when the heating is up, only the perfect time and temperature and pressure can make the transferring a good job. Also the transferring is also subject to the thickness of materials and the pyrography paper.

As the original ink cartridges is water-based ink from `the` printer suppliers, which do not offer the sublimation ink cartridge; you have to do some changes to the original ink cartridges, getting rid of the original ink and injecting the sublimation ink.
We suggest you use the continuous ink supply to avoid the complex process of injecting ink to the ink cartridges. This way you will be free from `the` repeating work for injection when the ink is using out every time. What you need to do is just inject the sublimation ink into `the` ink bottle of the system

All kinds of the pyrography papers have to be tested to be qualified before mass production.


Voltage: 220/110V
Working Temperature: Normal

  • ทั้งหมด
  • คำแนะนำ
  • รายละเอียดสินค้า
  • การส่งสินค้า
  • การชำระเงิน
  • อื่น ๆ
Q
Can you print on the special transfer film with sublimation ink?
By Oct 19,2013
A

Dear customer, usually, heat transfer film can be printed by Roland Plotter& Cutter with ECO solvent inks, and sublimation inks do not work for transfer films. The transfer film printing solution is going to be listed on our web, and before that, you can contact: overseas25@sign-in-china.com for detailed information.

Thanks & regards




By Sign-in-thai Oct 21,2013
Q
What voltage can the machine work?
By Jan 06,2010
A
220/110V.
By Sign-in-thai Jan 06,2010
Q
What is the price of Epson printer?
By Jan 06,2010
A
The referable price is 268USD.
By Sign-in-thai Jan 06,2010
Q
What kind of printer should I use with the system?
By Jan 06,2010
A
It uses the piezoelectric printer(like EPSON printer).
By Sign-in-thai Jan 06,2010
Q
What shall I do if transfer the mug?
By Jan 05,2010
A
You can buy another mug transfer machine together with the system.
By Sign-in-thai Jan 05,2010
Q
Can I transfer mug by this system?
By Jan 05,2010
A
Sorry, it can only transfer cap.
By Sign-in-thai Jan 05,2010
Q
Does the system include printer?
By Jan 05,2010
A
No, it doesn't have that.
By Sign-in-thai Jan 05,2010
Q
What parts does the system have?
By Jan 05,2010
A
Including: ◇ One set of the cap heat transfer machine. ◇ One set of the continuous-ink-supply system including heat transfer ink 100ml in six-color. ◇ One parcel of heat transfer paper (100pcs/parcel)
By Sign-in-thai Jan 05,2010
