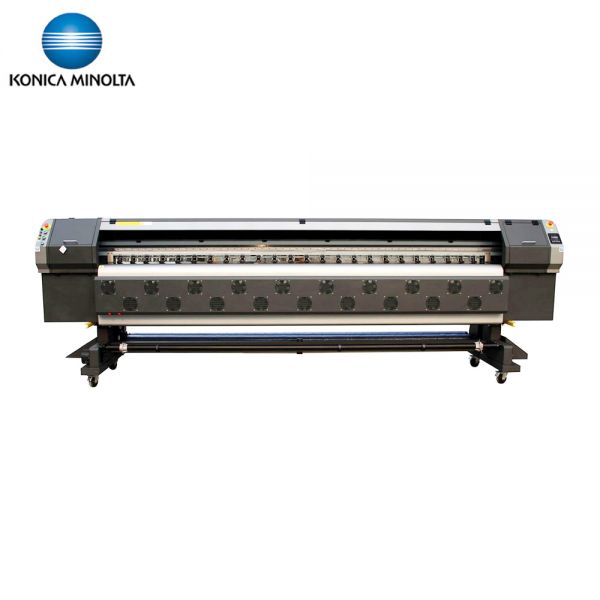

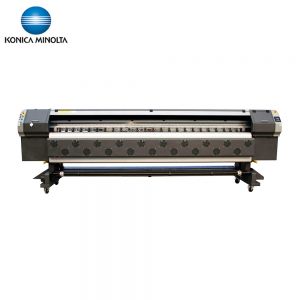

เครื่องพิมพ์อิงค์เจ็ทโคนิก้าKM512i- 30pl/6pl Perfect color C4/C8
  • เครื่องพิมพ์อิงค์เจ็ทโคนิก้าKM512i- 30pl/6pl Perfect color C4/C8
  • เครื่องพิมพ์อิงค์เจ็ทโคนิก้าKM512i- 30pl/6pl Perfect color C4/C8
  • เครื่องพิมพ์อิงค์เจ็ทโคนิก้าKM512i- 30pl/6pl Perfect color C4/C8
  • เครื่องพิมพ์อิงค์เจ็ทโคนิก้าKM512i- 30pl/6pl Perfect color C4/C8
  • เครื่องพิมพ์อิงค์เจ็ทโคนิก้าKM512i- 30pl/6pl Perfect color C4/C8

See larger image and other views (with zoom)

เครื่องพิมพ์อิงค์เจ็ทโคนิก้าKM512i- 30pl/6pl Perfect color C4/C8

   |   397 Transactions

รหัสสินค้า:SIT-LFIP-S4

  • ราคา : ฿ 382,000/set   (ขอส่วนลดพิเศษ) (สินค้าพร้อมส่ง)

  • กรุณาเลือกประเภท

    กรุณาเลือกประเภท: Konica 512i-30pl/4 Heads
  • จำนวน: set(s) Total Cost: ฿382,000
  • น้ำหนักการส่ง: 1837.0lb (835kg) freightขนส่งสินค้า

Buyer Protection

ยี่ห้ออะไหล่:

บอร์ดBYHX-A-KM512i-4H/8H
ซอฟแวร์ Honsoft UltraPrint RIP
เซอร์โวมอเตอร์ญี่ปุ่น PANASONIC 400W AC
ลูกปืน NSK ญี่ปุ่น
รางลากเยอรมนี IGUS
สายไฟจากเยอรมนี IGUS
สายพานMegadyneจากอิตาลี 15มม.
ตัวเชื่อมต่อท่อพลาสติกคุณภาพสูงจากอเมริกา
รางสไลด์จากไต้หวัน Hiwin ตัวเลื่อนปิดมีสองชิ้น
ปั๊มหมึกJYY DC
วาล์วโซลีนอยด์JYY

การกำหนดค่า:
โครงสร้างเครื่องพิมพ์แบบคลาสสิก
แท่นพิมพ์กว้าง171มม.มีคุณภาพสูงพิมพ์
คานโลหะมาตรฐาน
สองแถวแฟนไฟฟ้าขนาดใหญ่ AC อบแห้ง
ไฟ LED ที่ทำความสะอาดตำแหน่งและเตียงพิมพ์
4 in 1 ระบบการควบคุมความร้อน
หลังการพิมพ์เตียง-Front-หัวพิมพ์เครื่องทำน้ำอุ่น
ความดันเป็นบวกระบบจ่ายหมึก
ระบบหมึกกวาดล้างเฉพาะกิจ
ฐานหัวพิมพ์แบบยก
ฐานป้องกันหัวพิมพ์ที่มีเอกลักษณ์
ระบบการป้อนวัสดุแบบมัลติฟังก์ชั่น

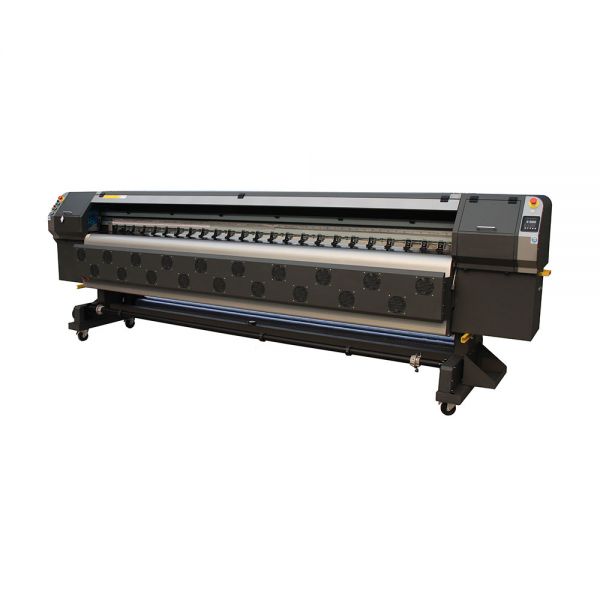

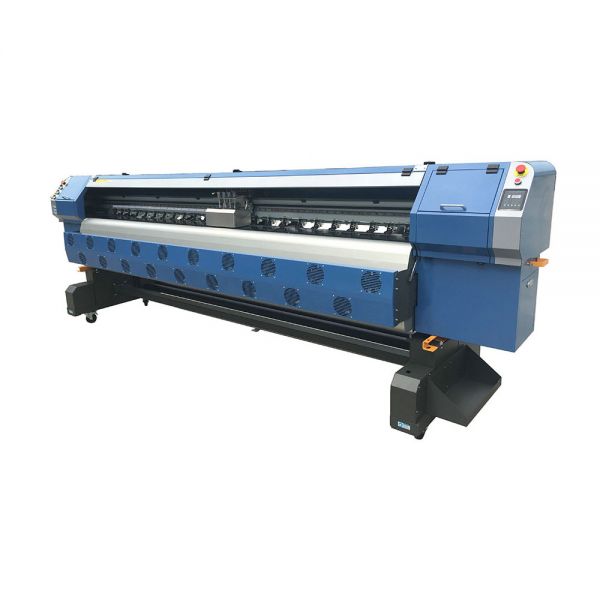

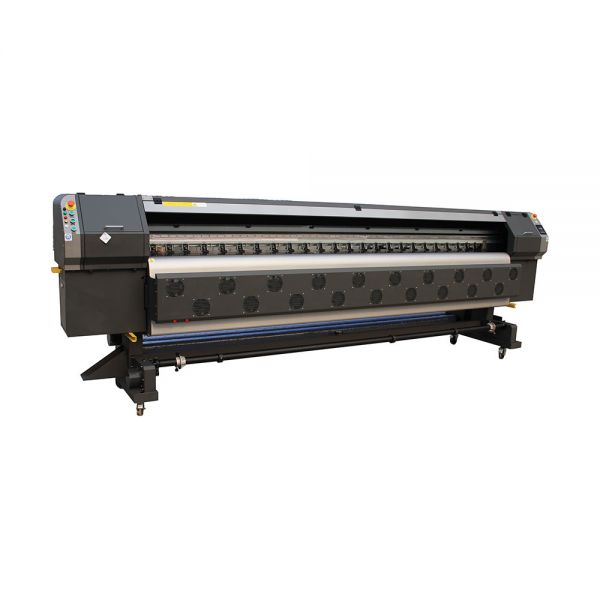

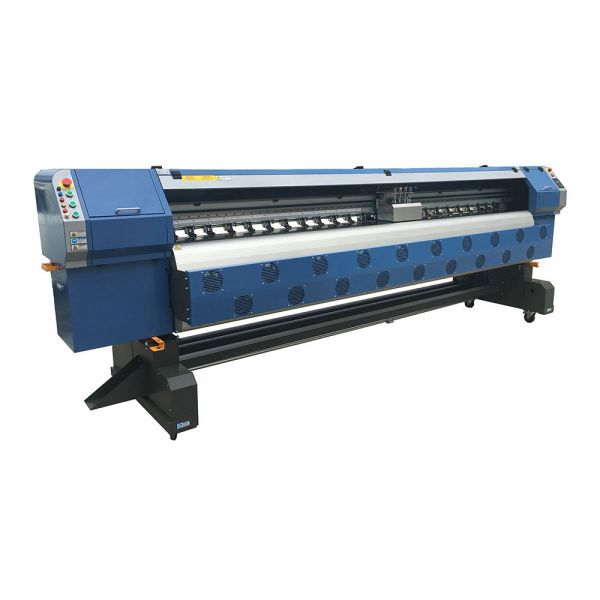

Perfect color C4/C8 Inkjet Printer

Specialn Configurations

Positive pressure ink supply system
Two rows of big fans
Standard Steel beam for carriage
24 pcs for pinch rolles
High quality 171mm wide printing bed

Brand parts:
BYHX-A-KM512i-4H Board
Honsoft UltraPrint RIP software
Japanese PANASONIC 400W AC servo motor
Japanese NSK bearing
Taiwan Hiwin linear guide with two pcs mute slider
15MM Italy Megadyne belt
American Value Plastics tube connector
Germany IGUS drag train
Germany IGUS Power cable
Korea Autonics sensor
JYY DC ink Pump
JYY Solenoid Valve

Configuration:
Rear-Printing bed-front-Printhead heater
Adjustable vacuum or printing bed
Lift type carriage
Unique printhead protection stack
4 in 1 heating control system
LED lights at cleaning postion and printing bed
Multifunction Feeding system
16*6cm Main beam for the body
12mm Ymotion axis
Steel XY holders



Details:

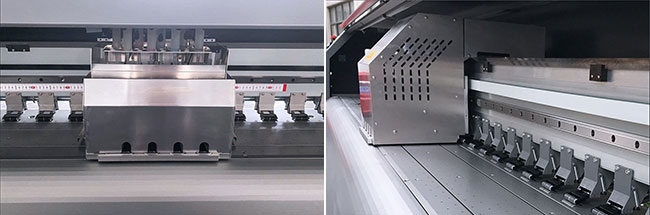

Carriage Position System: 180DPI Grating PositioningSystem
Carraige Lifting System: Manual Screw Type Carraige Lifting System
Printhead Protection System: Carriage Anti Colision System
Main Girder Structure: Square Pipe Welds
Carriage Beam: 4200mm Thickened Sheet Metal Beam
Linear Guide Way: Taiwan Hiwin linear guide with two pcs mute sliders

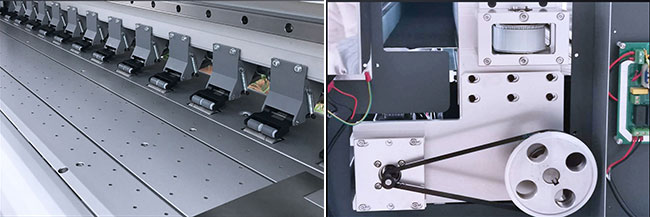

Pinch Roller: 34PCS High Precision Aluminum MadePinch Roller





Printing Bed: 200mm Wide Printing Bed
Material Suction System: Adjustable Vacuum Suction System
LED Lighting System: Printing Bed Lighting System
Heating System: Rear Cover-Printing Bed-Front Cover
X Driving Mode: Belt&Pulley
Y Driving Mode: 20mm Diameter Steel Axis
XY Motor Bracket: Aluminum Machined Brackets





Printhead Cleaning System: Individual lnk Purging System

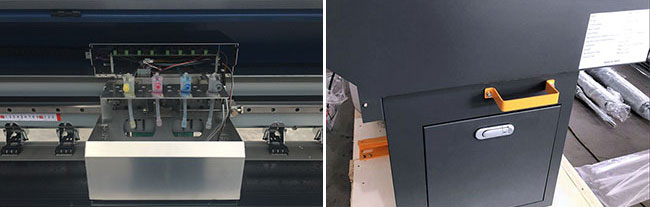

Subtank Heater: Subtank Heater
Side handle: High quality handle, easy to move the machine

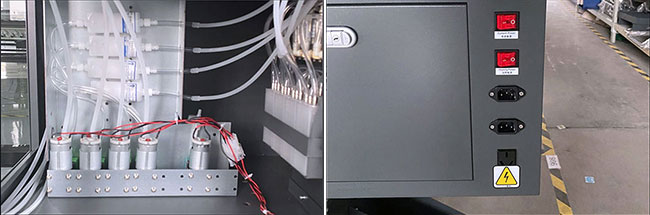

Ink Supply System: Positive pressure ink supply system                                           Mains lnput System: Independent System Power lnput And Heating Power Input

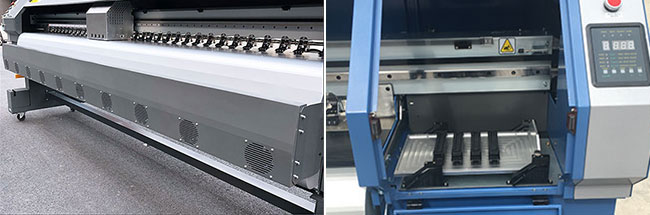

Image Drying System : Intelligent IR Heating Drying System Carriage Capping System : Capping station

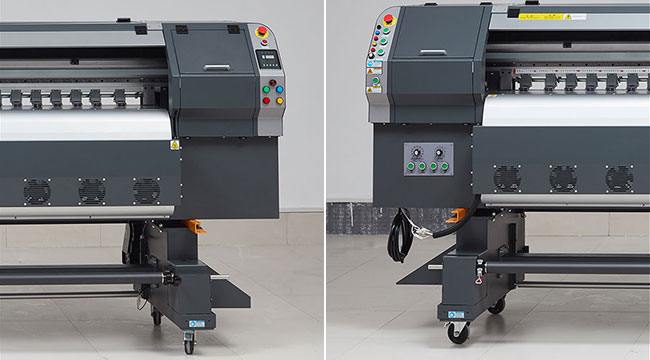

Right side
4 in1 Heating Control System: Unified Operation, Fast And
Effective
Ink Supply Alarm Lamp: Flash And BUzz when Ink Supply
Is Abnormal, Avoid TheProblems

Left side
Start/ stop: One Click Start/Stop To Prevent Misoperation
Home Sensor: Metal lnduction, Long Life
Purging Button:KCMY,Purging Seperately.




 Application:

ระยะเวลารับประกัน
1. รับประกันเครื่องและอะไหล่ 1 ปี แต่ต้องใช้หมึกของผู้ให้เช่าเท่านั้น
2. กรณีเซอร์วิสลูกค้าไกลเกิน 50 กม. บริการฟรี 3 ครั้ง รวมวันติดตั้งเครื่อง ครั้งที่ 4 เป็นต้นไปหากเกินต้องคิดค่าน้ำมันรถเพิ่ม 5 บาท/กม. และค่าเซอร์วิสช่างครั้งละ 1,500 บาท
3. สินค้าซื้อแล้วไม่รับเปลี่ยนคืน บริษัทจะทำการซ่อมให้เท่านั้น

สินค้าที่ไม่อยู่ในประกัน
1. หัวพิมพ์ทุกรุ่น และ ส่วนที่หมึกผ่านประกอบด้วย ปั้มหมึก ปั้มอากาศ กล่องลูกลอย ฟิวเตอร์ ซับแท้งค์ กระบอกน้ำ ท่อหมึก ดัมเปอร์ หัวดูด ชุดหัวดูด
2. ให้บริษัทอื่นซ่อมหรือเปลี่ยนอะไหล่ (หรือเปลี่ยนเอง) โดยไม่ได้รับความยินยอมจากผู้ให้เช่า
3. อะไหล่ที่เปื้อนหมึกจำนวนมาก
4. สาเหตุจากการใช้งานผิดวิธี
5. หากเครื่องเสียหายโดยสาเหตุอื่นอันเนื่องมาจากอุบัติเหตุหรือภัยธรรมชาติ หรือไม่ทำตามขั้นตอนที่ผู้ให้เช่าแนะนำ ทางผู้ให้เช่าจะไม่รับผิดชอ
