เครื่องเจียรเอนกประสงค์ U3 --- U3 Universal Tool Cutter Grinder

See larger image and other views (with zoom)

เครื่องเจียรเอนกประสงค์ U3 --- U3 Universal Tool Cutter Grinder

รหัสสินค้า:ECG-GD-U3

ราคา Unit : ฿ 22,304 - 24,244/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 30-45 วัน)
ราคาขายส่ง :
- จำนวน (sets) ส่วนลด Amount/set
- Need more quantities, please click Bulk Order

จำนวน: set(s) Total Cost:
THB ฿24,244
น้ำหนักการส่ง: 132.0lb (60kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

Related Products

- Metal Letters Bending Tool for 3D Channel Letters (Enhanced Version)
- ฿4,546 / set
- Buy Now >>

Manual for U2 _ U3 Universal Tool Cutter Grinder:

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions:

Application:
This machine is suitable for all kinds of diameter, shape, Angle of high speed steel, hard alloy and other materials engraving sharps, circular knives, straight shank milling cutters, cutting knives, drill bits, ball end milling cutters, turning cutters and other unilateral or multilateral tools.

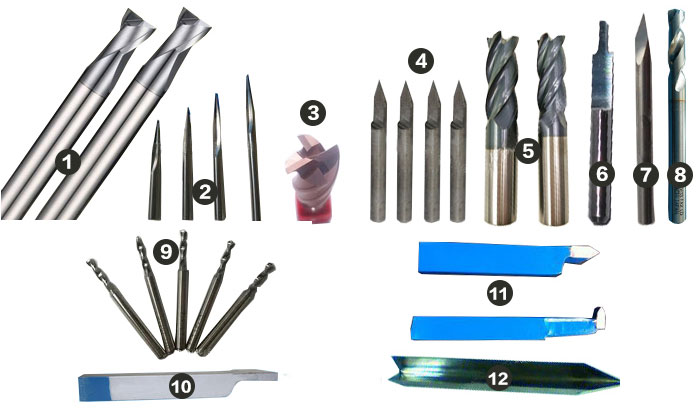

Note: U2 and U3 knife grinder can only grind the front plane of the tool, U3 cannot grind the bit, and U2 can grind 3-8 bits. See below:

1. 2 edge milling cutter
2. 2 edge groove carving knife
3. 3 edge milling cutter
4. Radius sharp knife
5. 4 edge milling cutter
6. Radius flat groove knife
7. Three-sided edge carving
8. High speed steel drill
9. Alloy drill
10 / 11 / 12. Turning tool

Product Highlights:
• Maximun collect capacity: Φ25mm.
• Taper angle: 0~ 180°.
• Relief angle: 0~ 45 (degree).
• Negative angle: 0~ 52 (degree).
• Cup grinding wheel: 100x35x20mm.
• The universal index head is provided at 24 positions so that any particular angle of shape can be obtained.
• It is allowed for the grinding to rotated 3600 or 100 with the End Mill Twist Drill Lathe tool, it only needs to be attached to the index head, and there is no complex setup.

Warranty and after sales services:
One year of warranty except the spare parts.
24 hours technical support by mail or phone.
User friendly English manual on how to use the machine and accomplish the maintenance.

Below optional-accessories, need to contact customer service to purchase separately.

This product has no attributes!

Q&A

Q	Does the price of U3 Universal Tool Cutter Grinder include collets and attachement,like diamond wheel?
A	Yes, it includes the attachement. ตอบกลับโดย sign in china
Q	Does the machine include the drill bit holder, lathe tool holder and end mill holder and will it take C5 collets. Regards Anthony
A	Dear friend,thanks for questions.Yes,this machine include all parts that you asked.Usually we will match with 3pcs of 5C collects.Any questions,feel free to contact with us. ตอบกลับโดย sign in china

Name	ECG-GD-U3
Max. Collet Capacity	Φ25mm
Max. Grinding Dia.	Φ25 mm
Taper Angle	0~ 180 (degree)
Relief Angle	0~ 45 (degree)
Negative Angle	0~ 52 (degree)
Grinding Spindle	5200 r.p.m.
Cup Grinding Wheel	100x35x20 mm
Motor	1/3HP 220V 50HZ
Net Weight	50 kg
Gross Weight	60 kg
Machine Dimensions	45x40x35 cm
Packing Size	56x47x47 cm

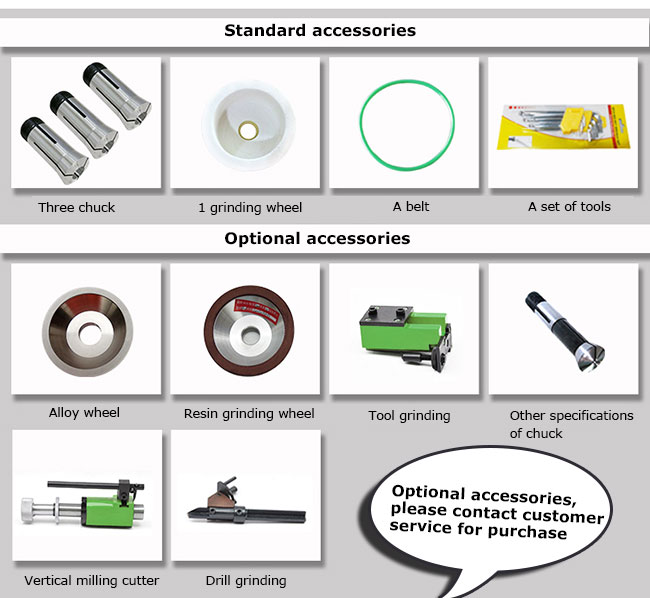

Standard Accessory	Diamond Wheel Dresser
	Collets three(Standard): 6,8,12mm.Ps:The other size is 6.5$ each
	Wrench and Spanner Set
	Grinding Wheel
	Wheel Mount
	Aligning Finger
	Lock Pin
	Drive Belt
Optional Accessory	END mill grinding attachment
	Twist drill grinding attachment
	Lathe tool grinding attachment
