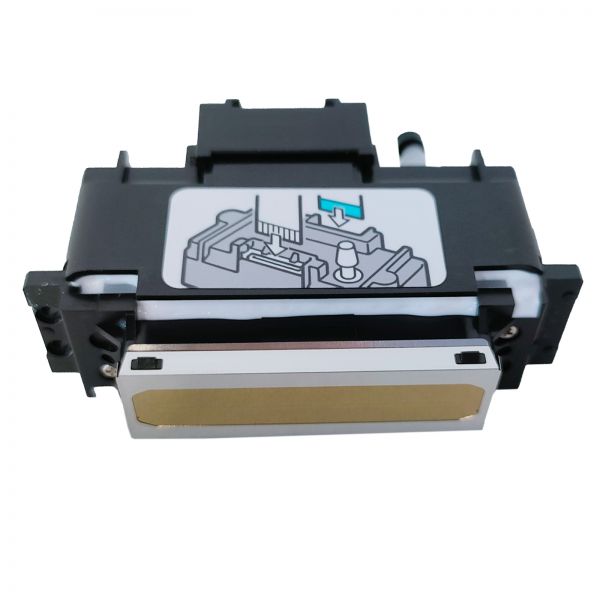

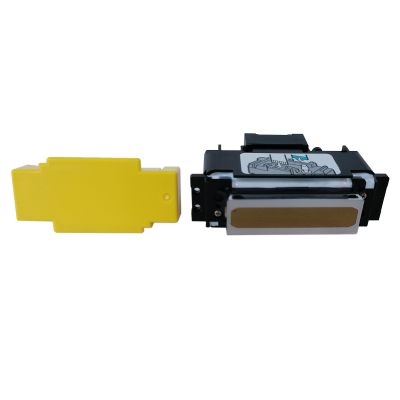

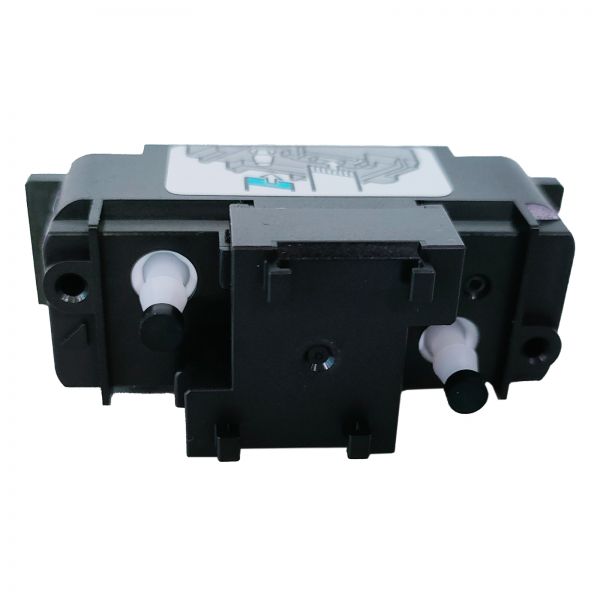

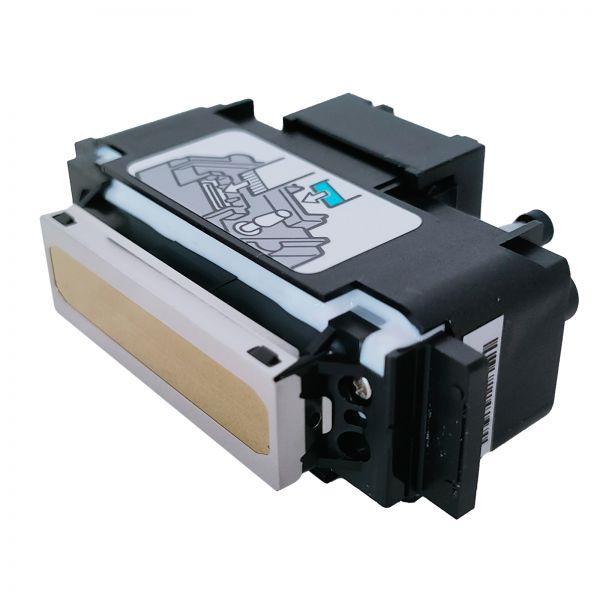

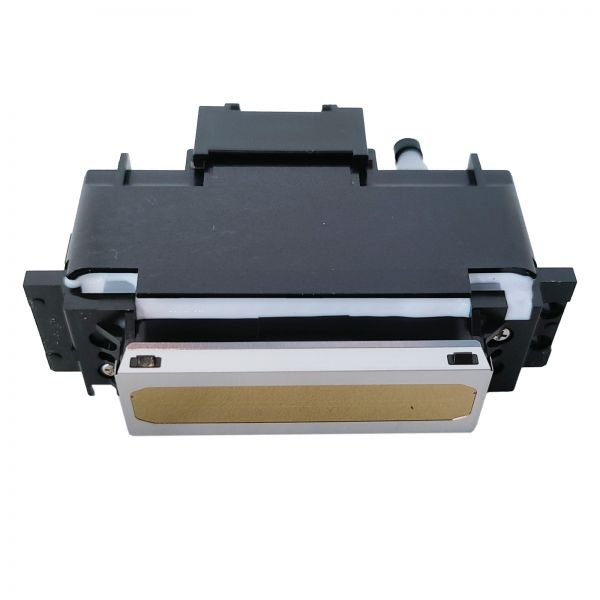

หัวพิมพ์ Ricoh GH2220 --Ricoh GH2220 Printhead
  • หัวพิมพ์ Ricoh GH2220 --Ricoh GH2220 Printhead
  • หัวพิมพ์ Ricoh GH2220 --Ricoh GH2220 Printhead
  • หัวพิมพ์ Ricoh GH2220 --Ricoh GH2220 Printhead
  • หัวพิมพ์ Ricoh GH2220 --Ricoh GH2220 Printhead
  • หัวพิมพ์ Ricoh GH2220 --Ricoh GH2220 Printhead
  • หัวพิมพ์ Ricoh GH2220 --Ricoh GH2220 Printhead

See larger image and other views (with zoom)

หัวพิมพ์ Ricoh GH2220 --Ricoh GH2220 Printhead

   |   158 Transactions

รหัสสินค้า:PRH-RICOH-004

Buyer Protection

หัวพิมพ์ที่มีปัญหาขาดไม่เกิน2% ไม่ถือว่าคุณภาพมีปัญหา ไม่สามารถเปลี่ยนหรือคืนได้

หัวพิมพ์ Ricoh GH2220

ด้วยอุตสาหกรรมได้ขยายโอกาส  สำหรับการพัฒนาสินค้า ซึ่งมีช่วงซิลิโคน ที่มีความละเอียดแม่นยำสูงขึ้น

โดยหัวพิมพ์ของ Ricoh - GH  นี้ใช้เวลาอย่างยาวนานมากกว่า 10 ปี สำหรับการศึกษาวิจัยค้นคว้า เพื่อเพิ่มประสิทธิภาพ สินค้าหัวพิมพ์ ซึ่งขณะนี้ เราได้ผลิตทั้งสินค้า หัวพิมพ์ รวมถึงสินค้า หมึก solventเป็นของตนเองแล้ว



รองรับการใช้งานสำหรับ หมึกน้ำและหมึก  solvent

หัวพิมพ์นี้รองรับการใช้งาน สำหรับหมึก solvent ได้เป็นอย่างดี



ด้วยเทคโนโลยีการหยดของหมึกพิมพ์ ที่หลากหลาย  สำหรับช่วยแสดงการพิมพ์ในรูปแบบสีเทา (gray scale )

โดยหัวพิพม์นี้รองรับ รูปแบบการหยดที่หลากหลาย  ซึ่งมีประสิทธิภาพสามารถควบคุมการหยดของหมึกพิมพ์ ซึ่งถูกปล่อยออกมาจากหัวฉีดด้วยความเร็วสูงได้  ได้อย่างรวดเร็วทันที่ ก่อนที่หมึกพิมพ์ จะถูกปล่อยลงสู่พื้นผิวส่วนกลาง ซึ่งช่วยให้สามารถควบคุมปรืมาณการหยดของหมึกพิมพ์ ได้อย่างเต็มที่ ด้วยรูปแบบการปล่อยจากปริมาณหยดหมึกพิมพ์ขนาดเล็ก ไปจนถึงหมึกพิมพ์ขนาดใหญ่





Ricoh GH2220 Printhead
Features:

Expanding industrial opportunities with new precision fabricated silicon range.
The GH Print Head is a result of over 10 years of Ricoh research and manufacturing optimization and is now made available for OEMs to incorporate in their aqueous and solvent ink based printer offerings.

Supports water and solvent based inks.
In addition to water-based inks, these print heads support solvent inks as well.

Multi-drop technology enables gray scale expressions.
These print heads support multi-drop-based droplet control for instantly consolidating the ink that is discharged from the nozzle at high speeds before it reaches the surface of the medium. Droplet volume control enables full control of ink discharge from small to large droplets.


Specifications / รายละเอียดเฉพาะ
Method / วิธีการ   Piston pusher with metallic diaphragm plate /แรงดันลูกสูบ กับแผ่นโลหะไดอะแฟรม
Print Width / ช่วงความกว้างการพิมพ์   32.4 mm(1.28")

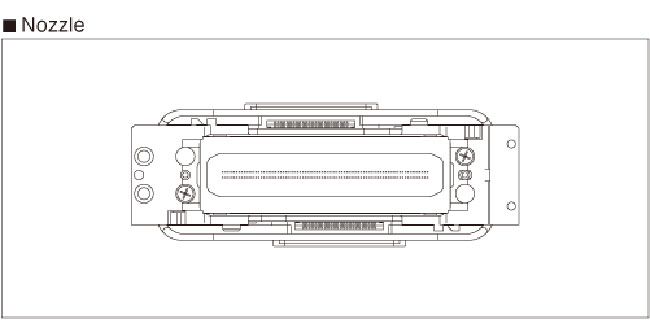

Number of nozzles / หมายเลขหัวพิมพ์(หัวฉีด)
384
Nozzle spacing (Within a row) 1/150"(0.1693 mm)/row
Nozzle spacing (Row to row distance) ระยะห่างระหว่างหัวฉีด(หัวพิมพ์) ,(ภายในแถว) 0.931 mm
Compatible ink / หมึกซึ่งรองรับการใช้งาน   Aqueous, Solvent / หมึก  Aqueous, Solvent

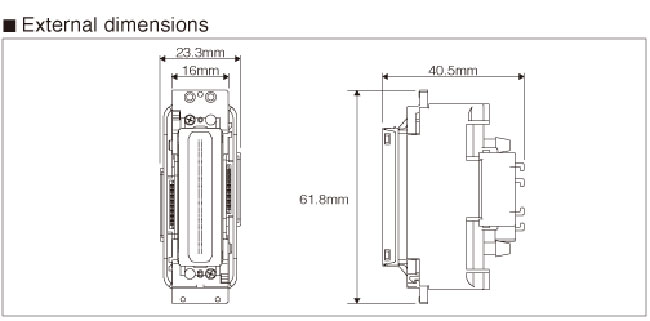

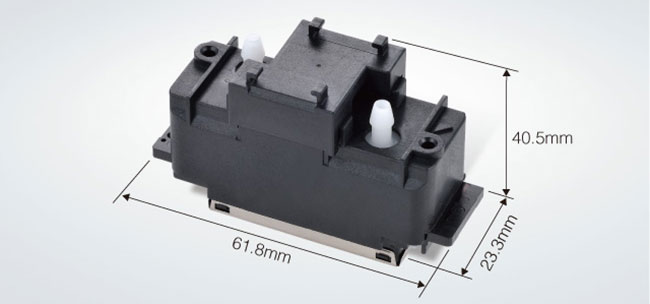

Total printhead dimensions /ขนาดโดยรวมของหัวพิมพ์   61.8(W) × 40.5(D) × 23.3(H) mm (2.43" × 1.59" × 0.92")
Weight / น้ำหนัก   36g
Ink colors supported / รองรับสีหมึกพิมพ์  2 colors / 2 สี
Temperature around the head / อุณภูมิรอบๆหัวพิมพ์   10-32ºC
Temperature control / การควบคุมอุณหภูมิ   No heater or thermistor/ไม่มีเครื่องทำความร้อนหรือเทอร์โม
Life / อายุการใช้งาน  30 billion actuations per nozzle / การใช้งาน 30ล้านครั้ง / หัวฉีด
Jetting frequency / ความถี่การพ่น Binary mode : 30kHz / Grey-scale mode : 24kHz
Drop volume / ปริมาณการหยด   Binary mode : 3-5pl / Grey-scale mode : 21±2pl
*depending on the ink (*ขึ้นอยู่กับหมึก)
Viscosity range / ช่วงความหนืด 6-16 mPa•s
Surface tension / ความกระชับ 25±1mN/m
Maximum gray scale / ระดับสูงสุด ของรูปแบบสีเทา  4 levels  (4 ระดับ)* depends on ink characteristics (ขึ้นอยู่กับลักษณะของหมึก)
Alignment mechanism  /รูปแบบกลไกการจัดตำแหน่ง Frame-abutting / ประชิดกรอบ


Details / รายละเอียด :

หมายเหตุ :
1. สำหรับหัวพิมพ์ต้องให้ช่างบริษัทที่ชำนาญเป็นคนติดตั้ง หากไม่ใช้ช่างบริษัทติดตั้งไม่มีการรับผิดชอบใดๆทั้งสิ้น
2. โดยปกติ หากชิ้นส่วนอะไหล่ รวมถึงปัจจัยหลายด้าน ได้เข้าสู่การติดตั้ง ลงบนเครื่องพิมพ์แล้ว เราจะไม่รับคืน หรือเปลี่ยนสินค้า ในส่วนของ อิเล็คโทนิค หรือชิ้นส่วนของอะไหล่บริการ ดังนั้นเมื่อสินค้าได้ถูกการส่งมอบ โปรดตรวจเช็คความเสียหาย ก่อนรับสินค้า และหากพบความเสียหาย หรือปัญหาใดๆ โปรดปฎิเสธ การรับสินค้า และโทรแจ้งเราที่เบอร์ 089-199-9408 หรือ 02-9359453
3. เมื่อทำการสั่งซื้อสินค้า หัวพิมพ์จากเรา โปรดตรวจเช็ค ข้อมูล รุ่นของหัวพิมพ์ และหากเมื่อได้รับรายการ สินค้าของคุณแล้ว โปรดตรวจสอบหัวพิมพ์ ว่าสามารถ เข้ากันได้ กับรุ่นที่คุณต้องการหรือไม่ ถ้าหากคุณพบปัญหาใดๆ โปรดติดต่อเราอย่างเร่งด่วน เท่าที่สามารถทำได้ ก่อนทำการติดตั้งหัวพิมพ์ลงบนเครื่องพิมพ์ เนื่องจากว่า หากหัวพิมพ์ ได้ทำการติดตั้งลงบนเครื่องพิมพ์แล้ว เราไม่รับคืน หรือเปลียนสินค้า
4. การติดตั้ง หัวพิมพ์ ค่าบริการ1500 เฉพาะกรุงเทพ ต่างจังหวัด ฟรีเซอร์วิส เฉพาะ สาขาภูเก็ต หาดใหญ่ สุราษฐ เชียงใหม่ เชียงราย พิษณูโลค ขอนแก่น อุบลลูกค้าต้องรับผิดชอบ ค่าเดินทางและค่าที่พัก
5. วันหยุดราชการหากต้องการเซอร์วิสค่าเซอร์คิดแยก
