เครื่องสกรีนเสื้อ , 4 สี , 4 แผ่นรองรับ การสกรีน รูปแบบหมุน ,สามารถรับ ลูกบิตขนาดเล็กได้ --- 4 Color 4 Station Micro-adjust Screen Press

See larger image and other views (with zoom)

เครื่องสกรีนเสื้อ , 4 สี , 4 แผ่นรองรับ การสกรีน รูปแบบหมุน ,สามารถรับ ลูกบิตขนาดเล็กได้ --- 4 Color 4 Station Micro-adjust Screen Press

รหัสสินค้า:SPM-TJ-E442L

ราคา Unit : ฿ 31,527 - 35,030/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)
ราคาขายส่ง :
- จำนวน (sets) ส่วนลด Amount/set
- Need more quantities, please click Bulk Order

กรุณาเลือกประเภท
China Warehouse

จำนวน: set(s) Total Cost:
THB ฿35,030
น้ำหนักการส่ง: 213.4lb (97kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

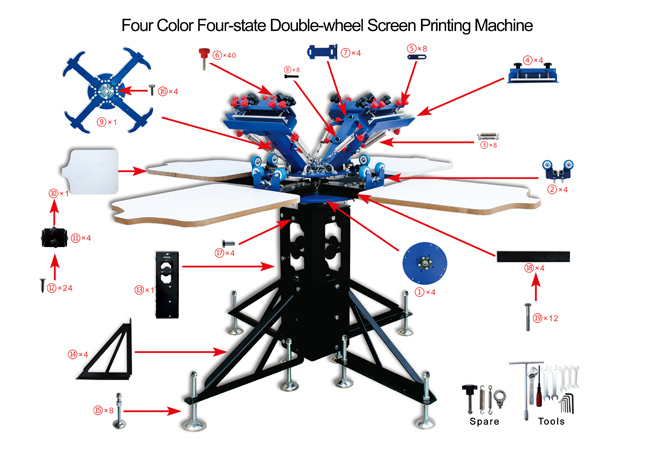

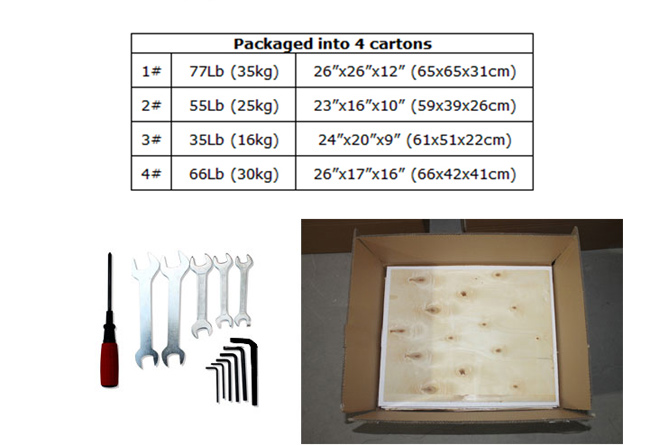

Packing List:

Install Video of the 4 Color 4 Station/ 6 Color 6 Station Screen Printing Machine

The Operation Video for 4 Color 4 Station/6 Color 6 Station Screen Printing Machine

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions:

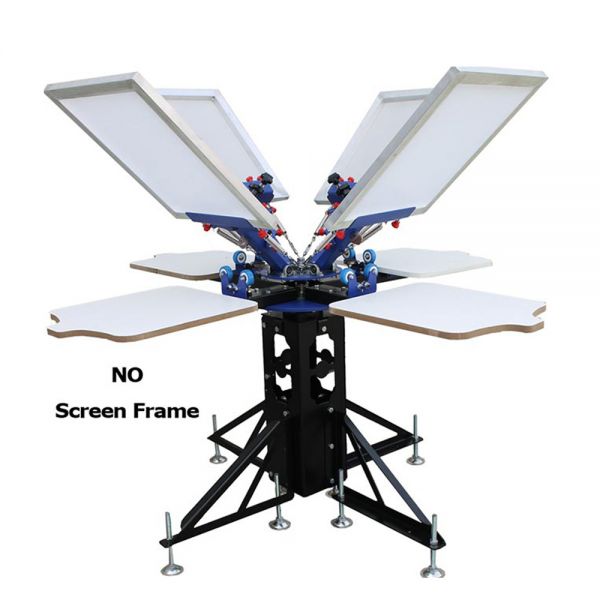

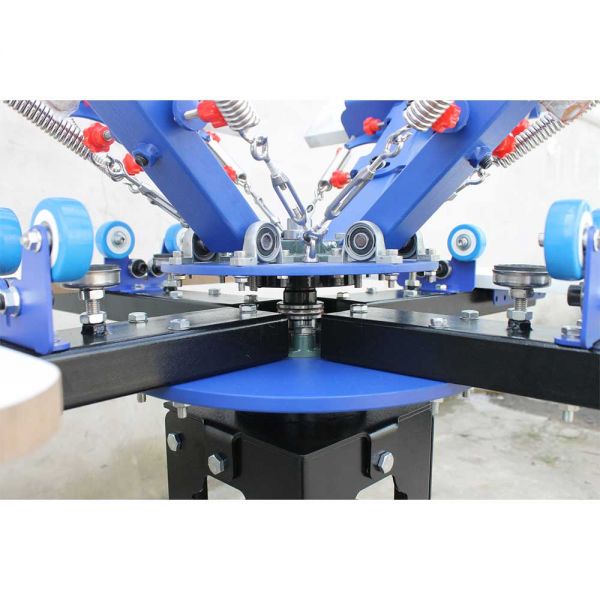

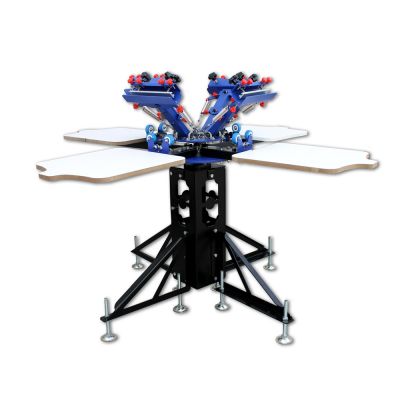

4 Color 4 Station Micro-adjust Screen Press

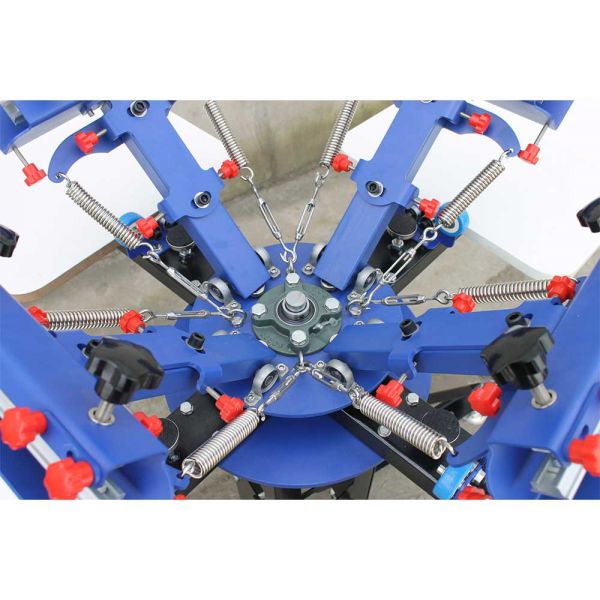

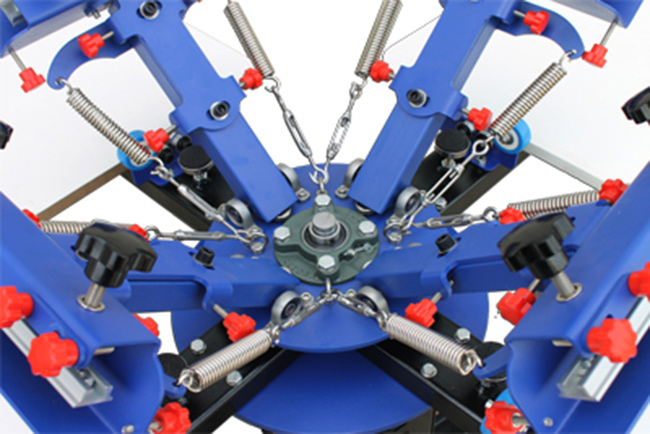

Our 4 Color 4 Station Screen Press can apply 4 screens to 4 stations simultaneously. The screen layer and the pallet layer can rotate independently, which makes it easier for multi-color printing, material loading and unloading and finally will bring much wider range of applications and faster printing effects.
Max frame size capacity: 16"x20" (40cmx50cm)

Feature:

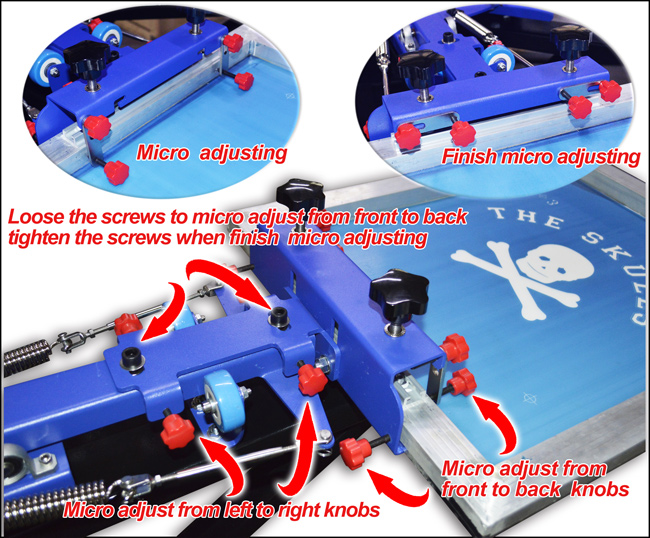

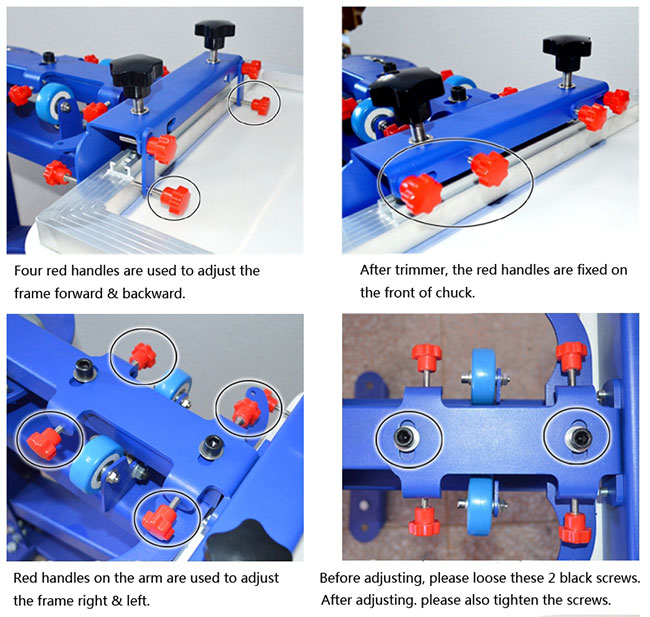

Comparing with the original 4 color 4 station printer, this new type machine has a function of micro-adjust/ registration. Using the Red Handles to Adjust the Screen Printing Frame and move the printer arm right & left lightly.

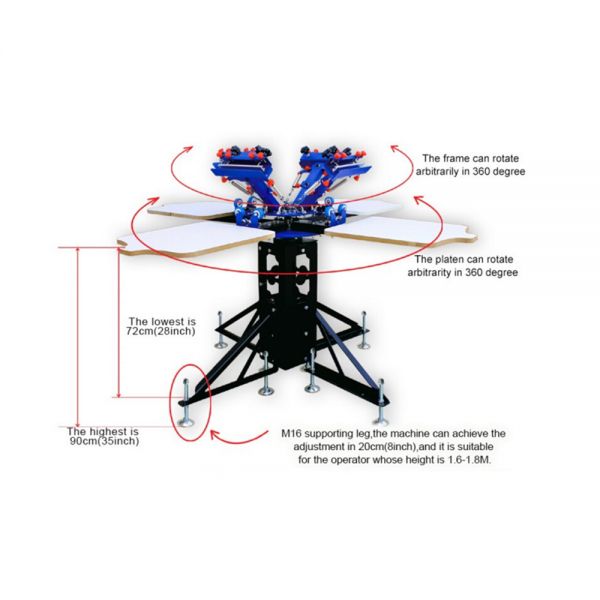

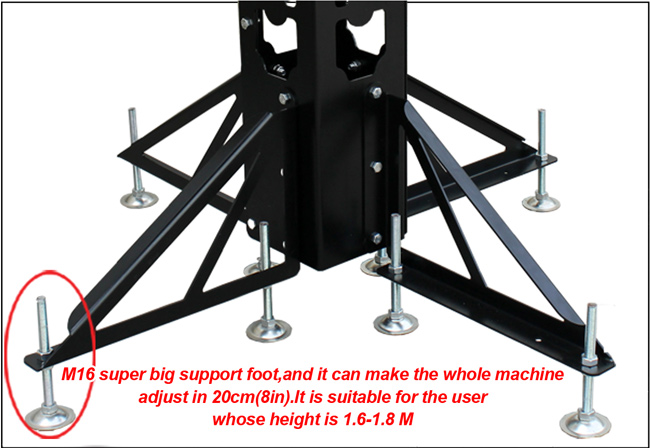

Bottom metal stand could adjust the height from 28"-35".

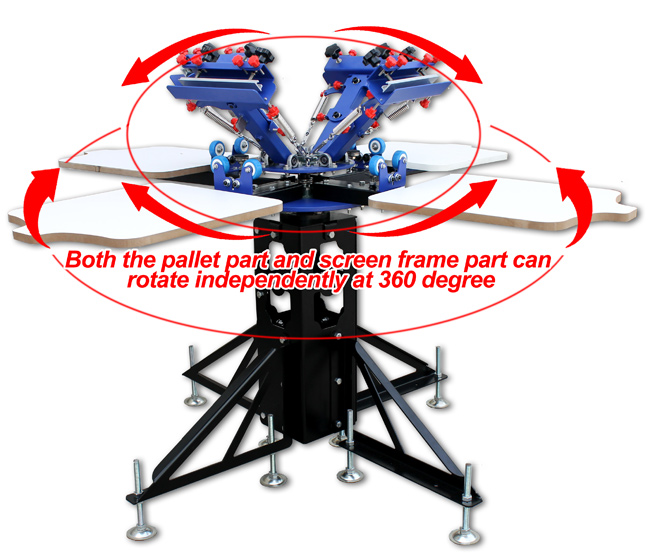

The frame & Pallet can Double Rotate Arbitrarily in 360 Degree.

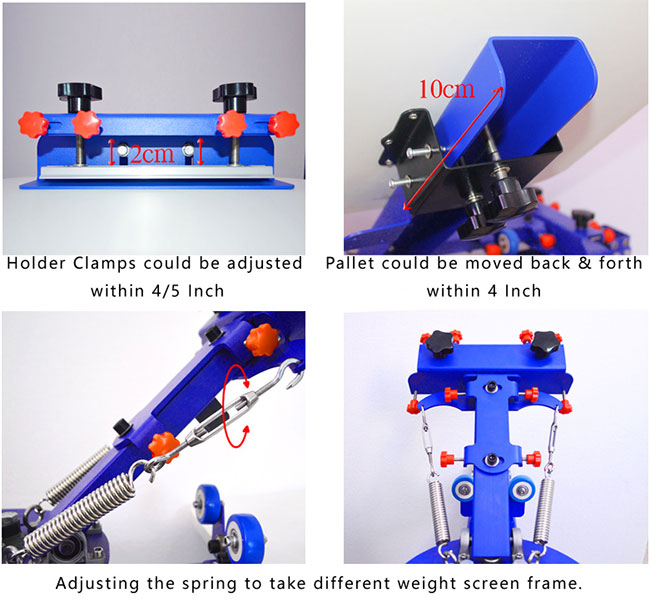

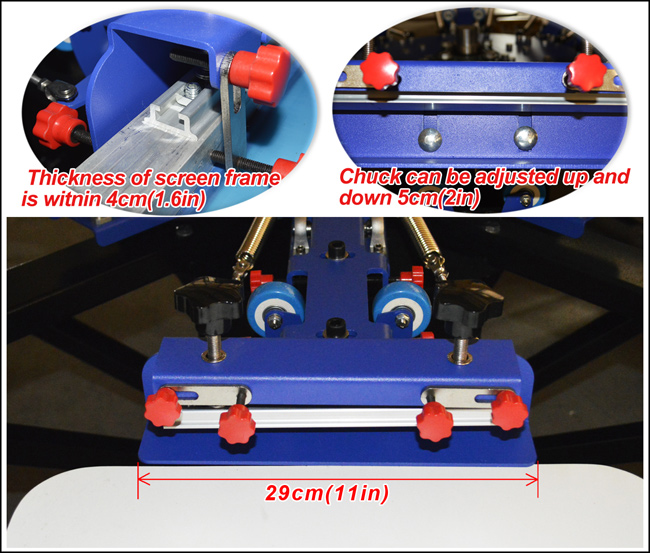

Screen clamp can be moved up and down, which is suitable for screen frame within 1.2" (3cm).
All-metal construction, advanced electrostatic spraying and electroplating, durable, easy to clear and no rust.

Process:

Details:

Type	4 Color 4 Station SP

Q&A

Specification
Product Code	SPM-TJ-E442L /SPM-TJ-E442L-US
Product Name	E442L Floor type micro-adjust four color four station double wheel overprinting screen printing machine
HS Code	8443192290
Product Color	blue

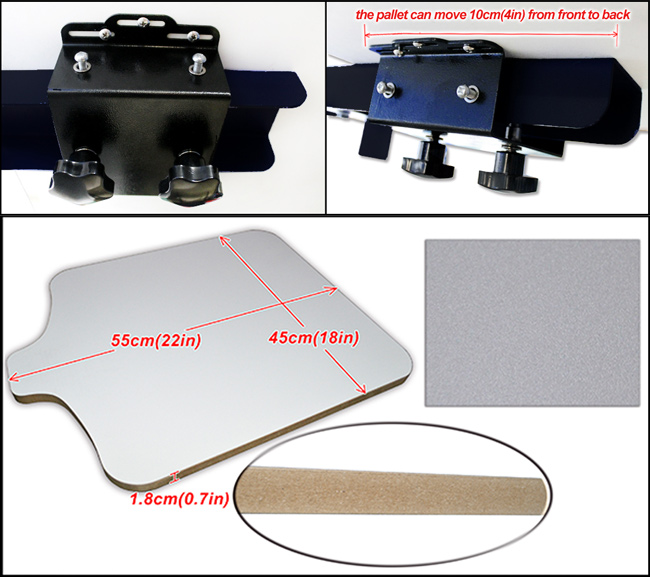

Pallet Size	22 x 18 in /55 x 45 cm
Max Frame Size(OD)	27.5 x23.6 in /70 x 60 cm
Max Frame Thickness	1.57 in /4 cm
Printing Height	0.4 in/1 cm
Machine Diameter	78.7 in/200 cm
Machine using material	Steel plate
Machine surface treatment	Electrostatic spraying
Attachment material	Stainless steel or zinc plating, nickel plating
Operation	Manual
Printing Color	4 Color
Printing Surface	Flat
Printing Products	T-shirt, Cloth, Clothing, Leather, Backpack, Towel, etc.
Net weight	206.8 lb /94 kg
Gross weight	213.4 lb /97 kg
Packing size	30.9 x 30.9 x 19.9 in /78.5 x 78.5 x 50.5 cm
Packing volume	0.3m³
Packing material	Export carton
