1-1 น็อตลูกบิดสำหรับปรับเครื่องสกรีน   --- 1-1 Micro Adjustable Screen Press Head
  • 1-1 น็อตลูกบิดสำหรับปรับเครื่องสกรีน   --- 1-1 Micro Adjustable Screen Press Head

See larger image and other views (with zoom)

1-1 น็อตลูกบิดสำหรับปรับเครื่องสกรีน --- 1-1 Micro Adjustable Screen Press Head



รหัสสินค้า:SPM-TJ-006321

  • ราคา Unit : ฿ 6,054 - 6,727/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 14-20 วัน)

    ราคาขายส่ง :
    • จำนวน (sets) ส่วนลด Amount/set
      1. 1 0% ฿6,727
      2. 2 - 10 5% ฿6,391
      3. 11 - 20 10% ฿6,054
    • Need more quantities, please click Bulk Order
  • จำนวน: set(s) Total Cost: ฿6,727
  • น้ำหนักการส่ง: 36.3lb (16.5kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

1-1 น็อตลูกบิดสำหรับปรับเครื่องสกรีน

1. ทำการติดตั้งอุปกรณ์หัวเครื่องโดยการถอดสลักเกลียววางอุปกรณ์หัวเครื่องลงบนโต๊ะหรือแป้นสกรีนปรับตำแหน่งที่เหมาะสมแล้วขันน็อตสลักเกลียวให้แน่น

2. ติดตั้งเครื่องเจาะแรงโน้มถ่วง

3. ติดตั้งบล็อคสกรีนและตรวจสอบว่าคุณได้ทำการติดตั้งไว้เป็นอย่างดีแล้วหรือไม่

4. ปรับบล็อคสกรีนด้วยอุปกรณ์น็อตลูกบิดขนาดเล็กจากนั้นนำไปใช้ในขั้นตอนกระบวนการพิมพ์

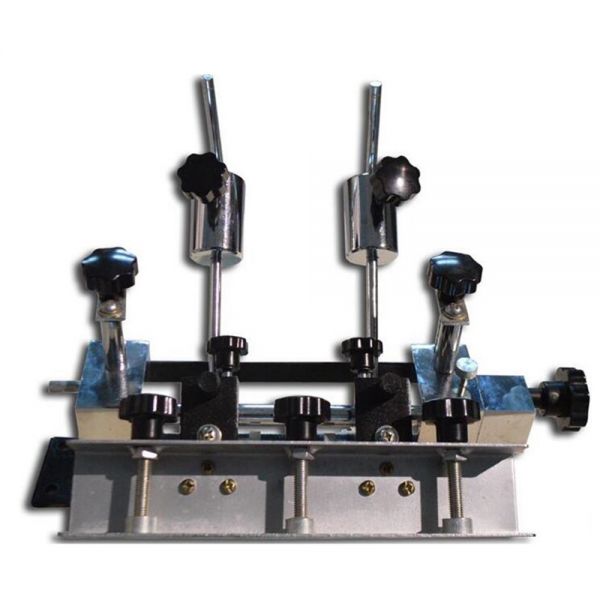

1-1 Micro Adjustable Screen Press Head

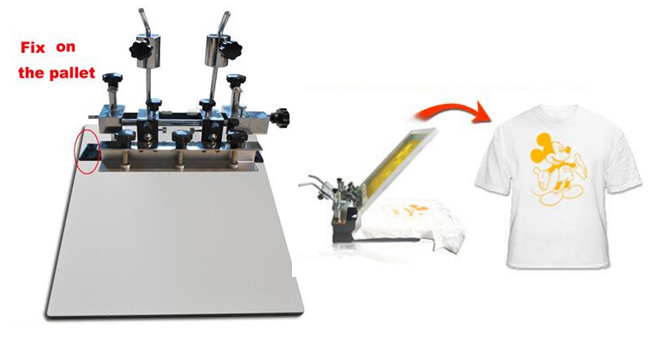

1. Install the Machine Head. Remove the bolts, put the machine head on to the table or pallet, adjust the proper position and then screw the bolts tightly.
2. Install the Gravity Hammers.
3. Install the Stretched Screen Frame to check whether you have well installed it or not.

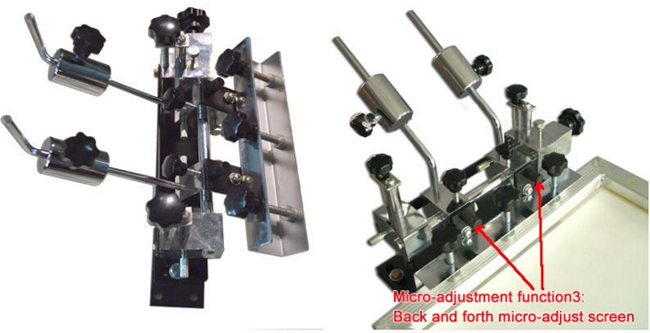

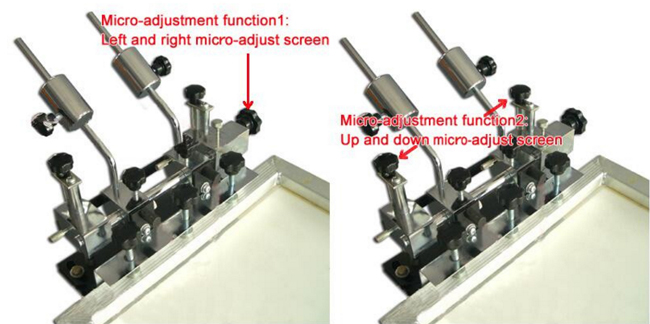

4. Adjust the screen plate with its micro adjusting functions, then apply it into printing process.





รายละเอียด :

น้ำหนักหัวพิมพ์: 9.7 กก. (22 ปอนด์)

ขนาดเครื่อง: 46 * 20 * 27.5 ซม

ฟังก์ชั่น: น็อตลูกบิดขนาดเล็กสำหรับปรับ / สีที่ตรงกัน

ขนาดบรรจุภัณฑ์: 47.5 * 21.5 * 29.5 ซม. (19 "* 9" * 12 ")

น้ำหนักรวม: 16.5 กก. (37 ปอนด์)





Parameters:
Printing Head Weight: 9.7kg(22lb)
Machine Size: 46*20*27.5cm
Function: micro adjust/matching color
Packing Size: 47.5*21.5*29.5cm (19"*9"*12")
Gross Weight:16.5 kg (37lb)
