เครื่องดัด สำหรับ อะคริลิค, กระจกแก้ว อินทรีย์,กระดานพลาสติก,วัสดุพลาสติก ฯลฯ (รุ่นZD-1200R)---ZD-1200R Bending Machine

   |   169 Transactions

รหัสสินค้า:SIT-ZD-1200R

  • ราคา : ฿ 89,800/set   (ขอส่วนลดพิเศษ) (สินค้าพร้อมส่ง)

  • จำนวน: set(s) Total Cost: ฿89,800
  • น้ำหนักการส่ง: 550.0lb (250kg) freightขนส่งสินค้า

  • inquire

    Our Brazil branch company will contact you to confirm your order.

Buyer Protection

เครื่องดัด สำหรับ อะคริลิค, กระจกแก้ว อินทรีย์,กระดานพลาสติก,วัสดุพลาสติก ฯลฯ (รุ่นZD-1200R)

เครื่องตัด ZD-1200R นี้  ถูกนิยมนำมาใช้  อย่างแพร่หลาย สำหรับดัด กระจกแก้ว อินทรีย์,อะคริลิค,กระดานพลาสติก,วัสดุพลาสติก  ยกตัวอย่างเช่น วัสดุ PVC,วัสดุ PP รวมถึงวัสดุอื่นๆอีกมากมาย ใช้สำหรับกระบวนการผลิตชิ้นงาน โดยการดัดด้วยความร้อน  ซึ่งเครื่องดัดนี้  ใช้อุณหภูมิความร้อนในการดัด  โดยรังสีอินฟราเรด จากหลอดควอทซ์    ซึ่งมีคุณสมบัติให้ความร้อนวัสดุ  ได้อย่างสม่ำเสมอ  สามารถประมวลผลชิ้นงานได้อย่างรวดเร็ว สำหรับดัดมุมฉาก  แท่นทำงานมาพร้อม ระบบน้ำเย็นหมุนเวียน และระบบทำความเย็น  จึงไม่ก่อให้เกิดความร้อนบนแท่นทำงาน  ตัวเครื่องสามารถควบคุมอุณหภูมิได้อย่างถูกต้องแม่น พร้อมจอแสดงผลรูปแบบดิจิตอล โดยใช้เวลาไม่นาน  และมีความรวดเร็ว สำหรับการประมวลผลชิ้นงาน  และให้ประสิทธิภาพที่ดีเป็นอย่างยิ่ง  จึงสามารถมั่นใจได้กับการดัดชิ้นส่วน ได้อย่างตรง และมีความราบเรียบอย่างสมบูรณ์แบบ   อีกทั้งอุณหภูมิความร้อนยังสามารถปรับได้ตามระดับความหนา ของแผ่นวัสดุ  หรือชิ้นงาน  รวมถึงป้องกันอุณหภูมิความร้อนที่สูงมากจนเกินไป ซึ่งอาจจะส่งผลต่อการทำลายชิ้นงาน



คุณสมบัติ :

*ระบบปุ่มควบคุม ที่ชาญฉลาด ซึ่งสามารถดำเนินการได้อย่างง่าย มีความปลอดภัย และสะดวกรวดเร็วเป็นอย่างยิ่ง

*จอแสดงผลอิเล็กทรอนิกส์รูปแบบดิจิตอล สามารถปรับมุมได้  อุปกรณ์มีประสิทธิภาพ ที่ยอดเยี่ยมมากยิ่งขึ้น สามารถปรับได้อย่างอิสระตามความต้องการของคุณ

*สามารถดัดโค้งงอได้  อย่างหลากหลายมุมมอง

* ระบบประหยัดพลังงาน  ระดับอุณหภูมิคงที่  เพื่อตอบสนอง  ระดับจุดอุณหภูมิ การหลอมละลาย ที่มีความแตกต่างกัน

* สามารถระบายความร้อนได้อย่างรวดเร็ว  พร้อมระบบการหมุนเวียนของน้ำเย็น จากพลังงานลม   จึงสามารถมั่นใจได้  สำหรับความร้อน  ที่ใช้ดัด  โดยไม่ก่อให้เกิดการเปลี่ยนรูปต่อชิ้นงาน แต่อย่างใด



รายละเอียดตัวเครื่อง :

รุ่น  :  ZD-1200R

พลังงานหลัก :  380V (โวลต์) 50-60HZ

พลังงาน : 4800 วัตต์ ( สามารถปรับได้)

ขีดจำกัดการดัด : ความยาว ไม่จำกัด / ความกว้าง 120 ซ.ม.

ระบบทำความเย็น  :  ระบบน้ำเย็นหมุนเวียน / ระบบทำความเย็น

ขนาดตัวเครื่อง :  2250 X 730 X 1700 ม.ม.

น้ำหนัก :  250 กิโลกรัม

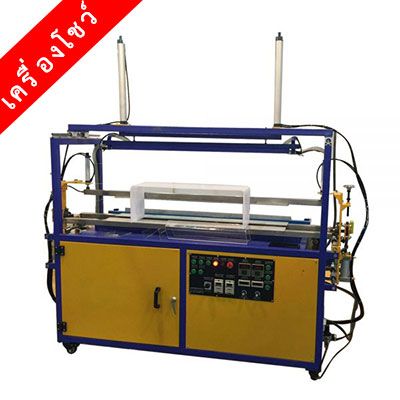

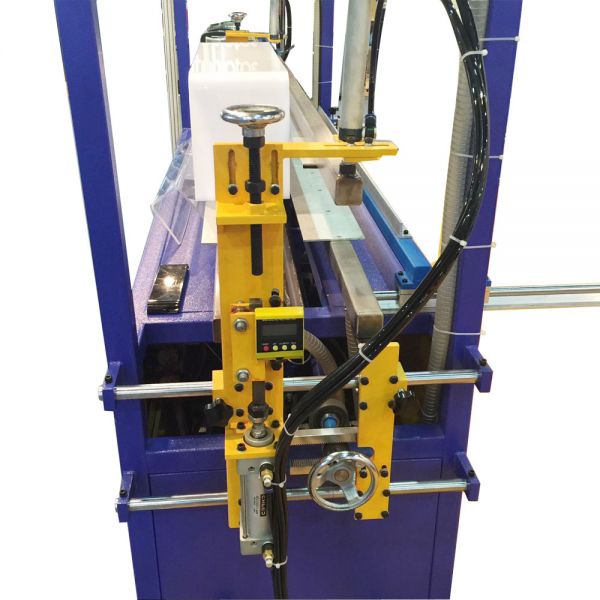

 ZD-1200R Bending Machine

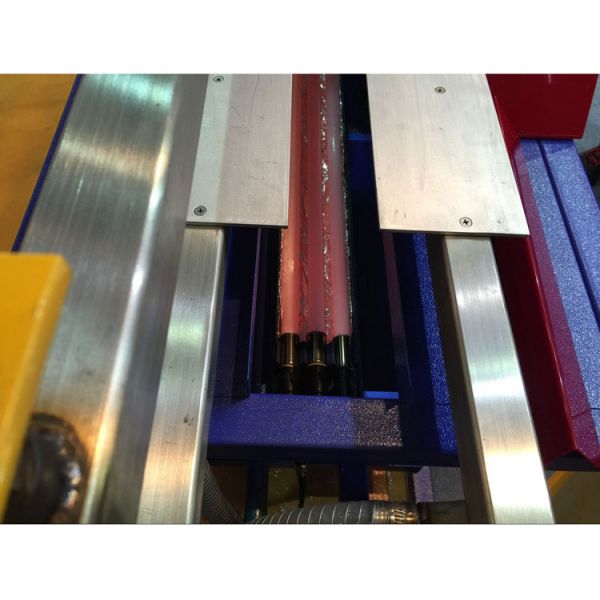

ZD-1200R Bending machine is widely used in Organic glass, acrylic, plastic board, PC materials such as PVC, PP etc.hot bending Production Process .It's hot and important machine in bending .This machine is using Infrared quartz tube heating method, to make the material heated evenly, no paste board.lt work fast,right angle .The worktop is with water circulating cooling and Air cooling system then no hot worktop,accurate temperature regulator,Digital angel display.Short creating time,faster and better.make sure the bending part has been made straightly and smoothly.Heating temperature can adjust according to the thickness of the plate and workpiece , avoiding the workpiece overheating being bump .



Feature:

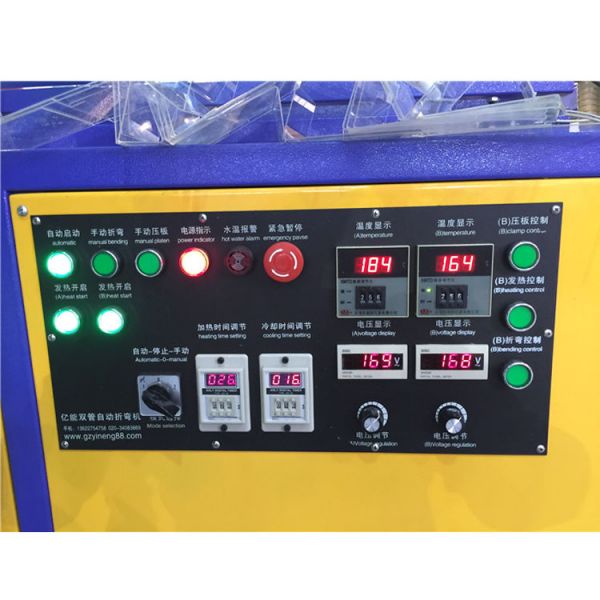

* Intelligent button control system,the operation is simple, safe and more quickly.

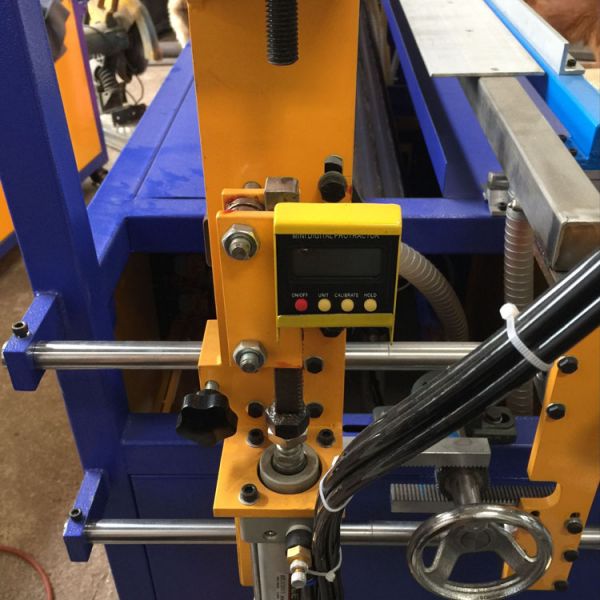

* Electronic digital display adjust the angle, the device could be more certainty, free to adjust according to need.

* Can bend arc and multiple perspectives.

* Constant temperature energy-saving heating system, temperature is adjusted to meet different melting point temperature.

* Rapid cooling with wind cooling water circulation system, ensure the hot bending workpiece no deformation.



Specification

Model: ZD-1200R

Main Power Input: 380V 50-60HZ

Power: 4800W (adjustable )

Bending Limit: Length:unlimited  Width:120cm

Cooling Systems: Water circulation chilling/Air-Cooled

Dimension: 2250 X 730 X 1700mm

N.W.: 250KG
