 เครื่องเชื่อม  โลหะ      (  เชื่อมเย็น  )        รุ่น  	SZ-1800   --- SZ-1800 High Precision Cold Welding Machine
  •  เครื่องเชื่อม  โลหะ      (  เชื่อมเย็น  )        รุ่น  	SZ-1800   --- SZ-1800 High Precision Cold Welding Machine

See larger image and other views (with zoom)

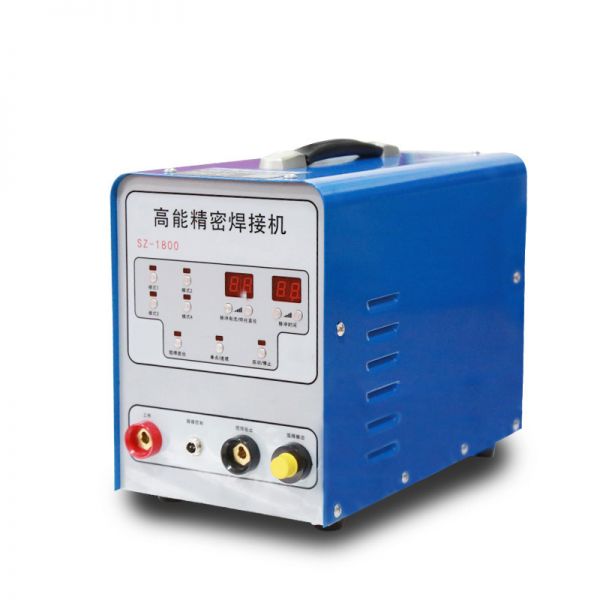

เครื่องเชื่อม โลหะ ( เชื่อมเย็น ) รุ่น SZ-1800 --- SZ-1800 High Precision Cold Welding Machine

   |   113 Transactions

รหัสสินค้า:SIT-SZ-1800

  • ราคา : ฿ 56,560/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 6-9 วัน)

  • จำนวน: set(s) Total Cost: ฿56,560
  • น้ำหนักการส่ง: 41.8lb (19kg) freightขนส่งสินค้า

Buyer Protection

เครื่องเชื่อม  โลหะ      (  เชื่อมเย็น  )        รุ่น  SZ-1800

รายละเอียด:

รุ่นสินค้า: SZ-1800

พลังงาน    : AC220V ± 20%

อัตรา     : 50Hz

กำลังไฟ         เฉลี่ย: 10-1800 วัตต์

อัตรา        :> 40 กิโลวัตต์

ช่วง    ขั้วไฟฟ้า    : 0.1 มิลลิเมตรต่อ 1.0 มิลลิเมตร

วัสดุ   ขั้วไฟฟ้า      : อลูมิเนียม      ทองแดง

ขนาด: 400 * 220 * 290 มม

น้ำหนัก: 19 กก


คุณสมบัติ      :

เครื่องเชื่อมนี้          ต้องมีพลังงานไฟฟ้า              ที่เก็บอยู่            ในคอนเดนเซอร์              เพื่อปล่อยออกมา           สู่ตำแหน่ง          ระหว่างขั้วไฟฟ้า     ทังสเตน          และชิ้นงาน                  ผ่านทางส่วนโค้ง           โดยส่วนโค้งไฟฟ้า           ที่มีอุณหภูมิสู                    จะทำให้ชิ้นงานโลหะ                   และชิ้นงานเชื่อมนั้น              ติดกันได้                    อย่างรวดเร็ว                                และรวมเข้าไว้         ด้วยกัน                        เพื่อให้บรรลุเป้าหมาย



คุณสมบัติ      การเชื่อม   :     ทำงานได้         ในระยะที่เวลาสั้น / ความคลาดเคลื่อน        การการแพร่กระจาย       ของความร้อนน้อย

กระบวนการทำงาน                         ระหว่างการเชื่อมยึดติด            กับชิ้นงานนั้น              สามารถทำได้                   ภายในไม่กี่       มิลลิวินาที           ดังนั้นในแง่ของเมทริกซ์ชิ้นงาน                 ความร้อนที่น้อย             และอุณหภูมิที่เพิ่มขึ้น            ไม่ก่อให้เกิดการหลอมละลาย             หรือการเปลี่ยนสี         ที่จะตามมา             ภายหลังจากการเชื่อม           ไม่มีการเสียรูป          หรือการเปลี่ยนสี        ที่จะเกิดตามมา          (ใช้สำหรับ     สัมผัสโดยตรง              บนชิ้นงานได้    )



ดัชนีหลัก     ทางเทคนิค   :

วัสดุที่ใช้ได้                 :         วัสดุโลหะต่างๆ    (รวมถึงทองแดง       และอลูมิเนียม) ยกเว้นอลูมิเนียม     อัลลอยด์      ที่แข็ง          และวัสดุที่มีจุดหลอมละลายต่ำ              (เช่น Zn / Sn ฯลฯ )




การใช้งาน      :

•   สำหรับเชื่อม        อุปกรณ์ในครัว     / โต๊ะสแตนเลส    / อ่างล้างจาน

•   สำหรับเชื่อม       สินค้าสแตนเลส      /    ป้ายตัวอักษร      สแตนเลส        / กรอบป้าย      โฆษณา /    ประตู      และหน้าต่าง / กล่องไฟ / กล่องไฟหลัก        / กล่อง      ไฟฟ้า

•   สำหรับการเชื่อม            แผ่นสเตนเลส   ,     แผ่นสแตนเลส      สีทองโรส   (E.g. Rose Gold Plate       / แผ่นสแตนเลส     แบบกระจกสะท้อน        / แผ่นสเตนเลส     /   สเตนเลส     ที่กั้นเป็น    2   ชั้น     / เหล็ก    / สเตนเลส   รุ่น 200   /  สเตนเลส   รุ่น 300 ฯลฯ )

•   สำหรับการเชื่อม                   ข้อบกพร่อง                ของการกัดกร่อน     เป็นต้น











SZ-1800 High Precision Cold Welding Machine

Specification:

Product Model: SZ-1800
Inout Power: AC220V±20%
Rate: 50Hz
Average Power: 10-1800W
Rate: >40KW
Electrode Range: 0.1MM-1.0MM
Electrode Material: Steel copper aluminum
Size: 400*220*290MM
Weight: 19KG

Fetaure:

This machine shall have the electric energy that stored in the condenser released into the position between tungsten electrode and the workpiece through pulsed arc. The high-temperature electric arc would melt the metal workpiece and welding stick rapidly and make a combination to reach the target.

Welding Features: Short-time Operation/ Less Thermal Diffusivity
The operation process between welding stick and the workpiece could be completed within dozens of milliseconds. So in terms of the workpiece matrix, less heat and temperature rise to the materoNo anneal or discoloring would come up. No deformation or discoloring would take place after welding (Available for touching directly).

Main Technical Indexes:
Application Materials: Workpieces made of various metal materials(including copper and aluminum) except hard alloys and materials of low fusion points (e.g. Zn/ Sn etc.)

Application:

•Kitchen Equipment/ Stainless-steel Table Board/ Sink
•Stainless-steel Products/ Stainless-steel Advertisement Characters/ Advertisement Frames/ Doors and Windows/ Light Box/ Main Case/ Electricity Box
•Available for stainless steel panel welding ( E.g. Rose Gold Plate/ Mirror Board/ Colored Stainless Steel Sheet/ Duplex Stainless Steel/ Checkered Steel Plate/ Series 200 Stainless Steel/ Series 300 Stainless Steel etc.)
•Defects of Cavity Corrosion etc.
