เครื่องตัดร่องลึกเอนกประสงค์  --- Gun Drill (Deep Hole Drilling) Tool Grinding Machine
  • เครื่องตัดร่องลึกเอนกประสงค์  --- Gun Drill (Deep Hole Drilling) Tool Grinding Machine

See larger image and other views (with zoom)

เครื่องตัดร่องลึกเอนกประสงค์ --- Gun Drill (Deep Hole Drilling) Tool Grinding Machine



รหัสสินค้า:ECG-MD600

  • ราคา Unit : ฿ 96,172 - 104,535/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 14-20 วัน)

    ราคาขายส่ง :
    • จำนวน (sets) ส่วนลด Amount/set
      1. 1 0% ฿104,535
      2. 2 - 3 5% ฿99,308
      3. 4 - 10 8% ฿96,172
    • Need more quantities, please click Bulk Order
  • จำนวน: set(s) Total Cost: ฿104,535
  • น้ำหนักการส่ง: 528.0lb (240kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection



เครื่องตัดร่องลึกเอนกประสงค์

ใช้สำหรับงานตัดบนโต๊ะตัด  เพื่อให้การตัดชื้นงานกระทำได้อย่างสม่ำเสมอราบเรียบ
ตัวมอเตอร์ สามารถหมุดได้  360 องศา  สามารถประยุกต์ใช้เป็นเครื่องเจียรในบางชิ้นงาน
ใช้งานได้อย่างหลากหลาย วัตถุประสงค์






ใช้งานได้อย่างหลากหลายวัตถุประส่งค์ ใช้งานง่าย  ให้ความเร็ว และความแม่นยำในการตัดสูง



คุณสมบัติ :
ระยะตัดตามยาวโต๊ะ : 185 มม
ระยะ cross  saddle : 120 มม
ขนาดโต๊ะตัด  :125    x  520  มม
หัวตัดแนวตั้งปรับได้  :140  มม
หัวตัดเอียงแนวตั้งได้ : 360 องศา
ขนาดจานตัด  : 125   50 x 31.75  มม
ความเร็วรอบจานตัด : 3600/2800 รอบต่อนาที
ขนาดมอเตอร์  :  1 แรงม้า  แรงดันไฟฟ้า  220  โวลต์ , 380 โวลต์
น้ำหนักสุทธิเครื่อง / น้ำหนักรวมบรรจุภัณฑ์:  170/240  กิโลกรัม
ขนาดกล่องบรรจุ  ก x ย x ส  : 750 x 700 x 800 มม


เครื่องตัดเอนกประสงค์ และอุปกรณ์ตัด มาพร้อมกับอุปกรณ์การใช้งานเสริมสำหรับการใช้งานที่หลากหลาย
อุปกรณ์มาตรฐาน :50H และ 50C จานตัดเอนกประสงค์
อุปกรณ์เสริม:50D ตัวตัดขอบ, 50k จานตัดอเนกประสงค์  50Q สำหรับเจาะ  จานตัดแนวงกลม  หัวปรับ  R-Type , 50S  และ   3-jaw  มอเตอร์

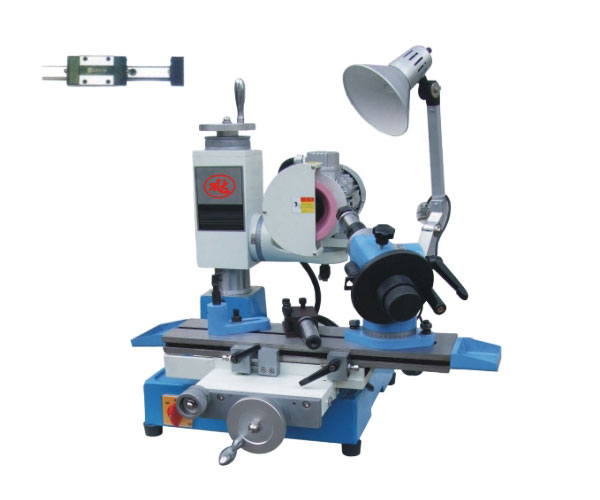

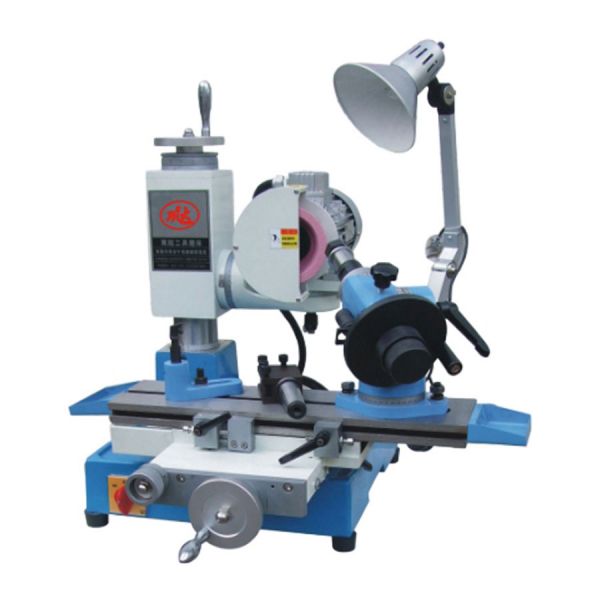

ECG-MD600: Universal Cutter and tool Grinder

เครื่องตัดร่องลึกเอนกประสงค์

Adopting precise roll guide on the table, it makes the table is stable and operated smoothly.
Then motor could be rotated 360degree, it could increase the grinding function and range of the machinery.
With variety of options can be provided for different purposes.


Features:
Variety of options that provides different purposes.
Easy set up.
It is easy to operate.
Fast and highaccuracy of the Grinding.

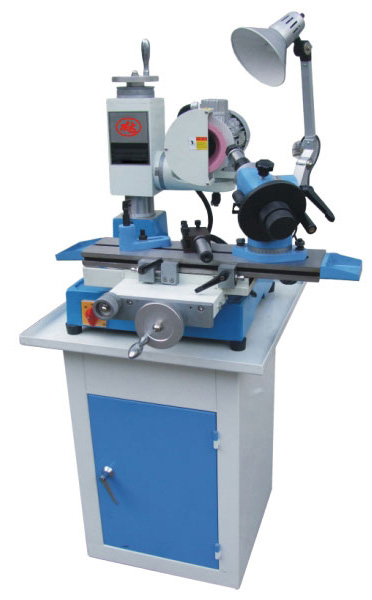

ECG-MD600 (No Stand) ECG-MD600F (With Stand)
Specifications:
Longitudinal travel of table: 185mm
Cross travel of saddle: 120mm
Working table area: 125x520mm
Vertical adjustment wheel head: 140mm
Vertical tilting range of wheel head: 360°
Size of wheel: 125x50x31.75mm
Speed of wheel: 3,600 RPM /2800RPM
Motor: 1 HP, 220V /380V 50HZ
N.W. /G.W.: 170kgs /240kgs
Size of packing (L x W x H): 750x700x800mm



The machine Universal Cutter and tool Grinder comes with different accessories, each one has different uses.
The standard accessories are:
50H universal grinding attachment tool, 50C universal grinding attachment tool.

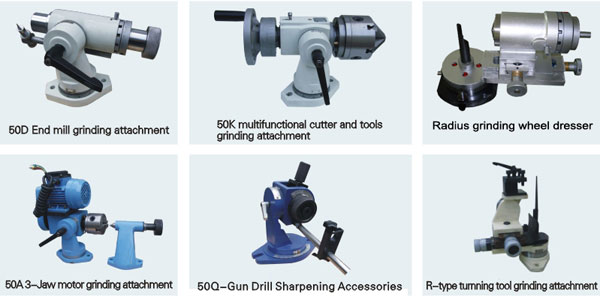

The optional accessories are: 50D end mill grinding attachment, 50k Multifunctional cutter and tools grinding attachment, 50Q gun drill grinding attachment, radius grinding wheel dresser, R-type turning tool grinding attachment, 50S 3-Jaw motor grinding attachment.

Standard accessories: อุปกรณ์มาตรฐานมีดังต่อไปนี้

Optional accessories: อุปกรณ์เสริมมีดังนี้
