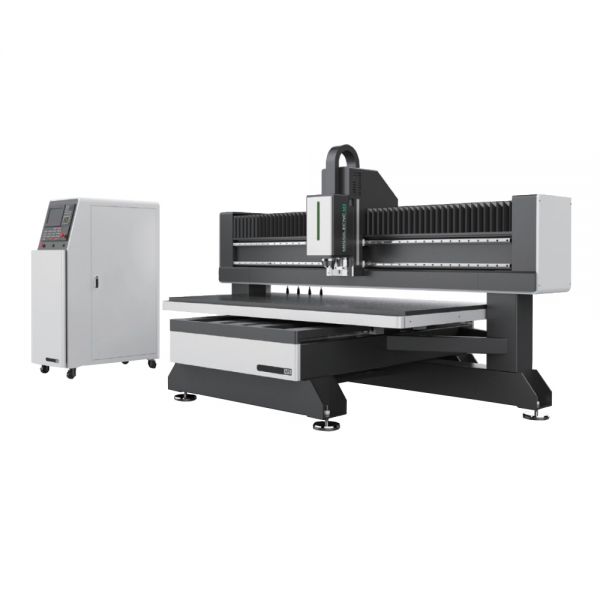

เครื่อง CNC Router โต๊ะเคลื่อนย้ายได้สำหรับอักษร 3D คริลิค M9  Table Moving CNC Router Machine For Acrylic 3D Letters M9
  • เครื่อง CNC Router โต๊ะเคลื่อนย้ายได้สำหรับอักษร 3D คริลิค M9  Table Moving CNC Router Machine For Acrylic 3D Letters M9
  • เครื่อง CNC Router โต๊ะเคลื่อนย้ายได้สำหรับอักษร 3D คริลิค M9  Table Moving CNC Router Machine For Acrylic 3D Letters M9
  • เครื่อง CNC Router โต๊ะเคลื่อนย้ายได้สำหรับอักษร 3D คริลิค M9  Table Moving CNC Router Machine For Acrylic 3D Letters M9
  • เครื่อง CNC Router โต๊ะเคลื่อนย้ายได้สำหรับอักษร 3D คริลิค M9  Table Moving CNC Router Machine For Acrylic 3D Letters M9

See larger image and other views (with zoom)

เครื่อง CNC Router โต๊ะเคลื่อนย้ายได้สำหรับอักษร 3D คริลิค M9 Table Moving CNC Router Machine For Acrylic 3D Letters M9

   |   20 Transactions

รหัสสินค้า:SIT-CNC-2513M9

Buyer Protection

เครื่อง CNC Router โต๊ะเคลื่อนย้ายได้สำหรับอักษร 3D คริลิค M9

คุณสมบัติ:
M9 เป็นหนึ่งใน "เรือธง" รูปแบบของตัวอักษร 3D CNC Router ใน บริษัทของเรา. นำมาใช้กับการออกแบบการย้ายโต๊ะสามแกนกับไต้หวัน, ระดับความเร็วสูง, เสียงน้อย, บอลสกรู; ไต้หวันระดับการบดรางสแควร์; ที่นำเข้า servo motor andreducer จากประเทศญี่ปุ่น; เครื่องมือปรับเปลี่ยนแบบ linear type 4; เป็นเครื่องที่มีความแม่นยำสูง M9 ออกแบบเฉพาะสำหรับคำเล็ก ๆ

พารามิเตอร์ของผลิตภัณฑ์:

X, Y, Z พื้นที่ทำงาน: 2500x 1300x200 ม.ม.
X, Y, Z ความถูกต้องของตำแหน่งในการดักฟัง: ± 0.02 มม
X, Y, Z ความแม่นยำในการจัดตำแหน่ง: ± 0.02 มม
ความเร็วสูงสุดในการเดินทาง: 50000mm / นาที
แม็กซ์ ความเร็วในการทำงาน: 20000mm / นาที
กำลังแกน: 7.5 กิโลวัตต์
ไดรฟ์และมอเตอร์: YASKAWA Servo
ความจุของเครื่องมือ: 4
แรงดันไฟฟ้าที่ใช้งานได้: AC380V
ระบบปฏิบัติการ: NC Studio สำหรับ ATC


Table Moving
CNC Router Machine For Acrylic 3D Letters M9

Features:

M9 is one of the“flagship" model of 3D letters CNC Router in our company. Adopted with table moving design; three-axis with Taiwan grinding level, high-speed, voice-less ball screw transmission;Taiwan grinding level square rail; imported servo motor andreducer from Japan; linear type 4 tools changing. It is one high precision machine. M9 is specifcally designed for mini words making.

Product Parameters:
X,Y,Z Working Area: 2500x 1300x200mm
X,Y,Z Traveing Positioning Accuracy: ± 0.02mm
X,Y,Z Repositioning Accuracy: ± 0.02mm
Max.Traveling Speed: 50000mm/min
Max. Working Speed: 20000mm/min
Spindle Power: 7.5KW
Drive & Motor: YASKAWA Servo
Tool Storage Capacity: 4
Working Voltage: AC380V
Operating System: NC Studio For ATC

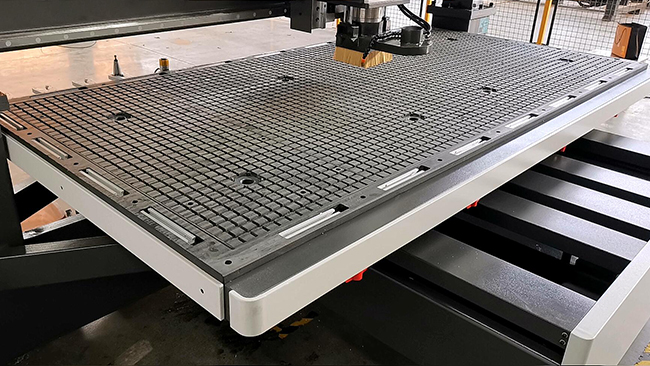

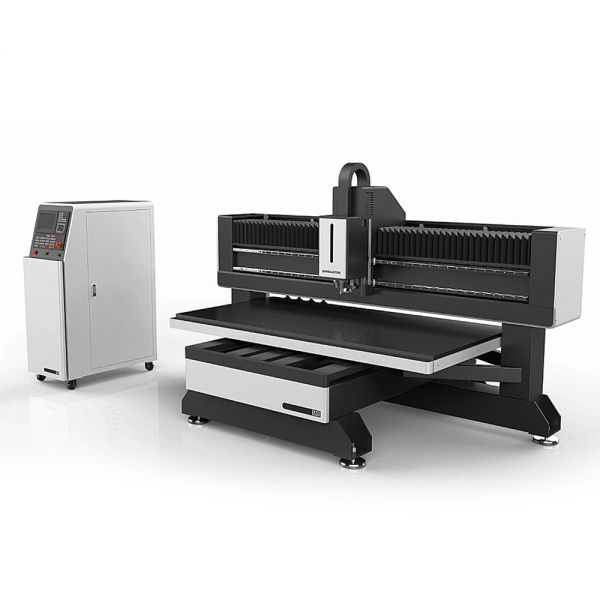

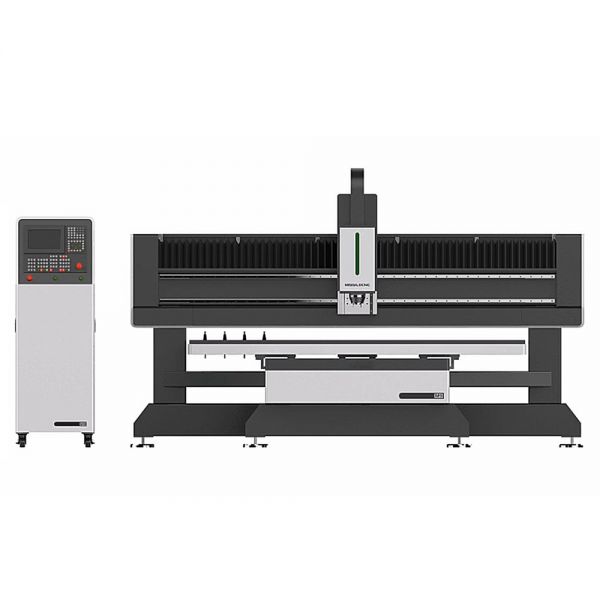

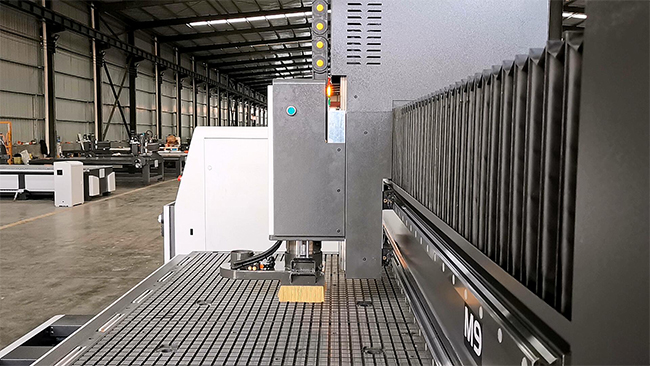

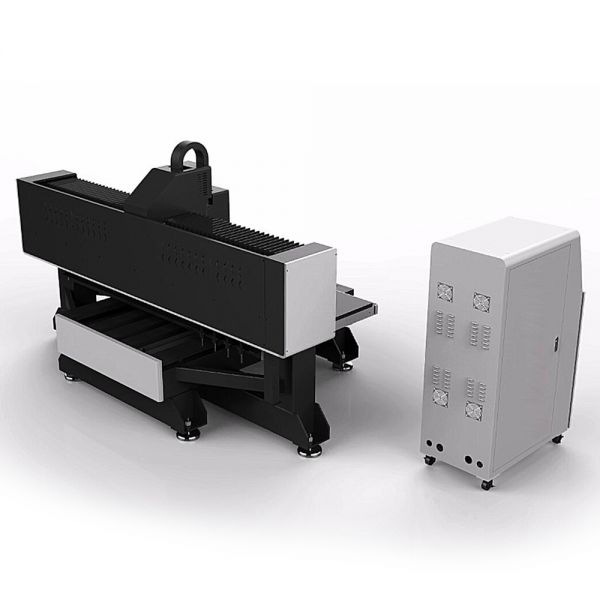

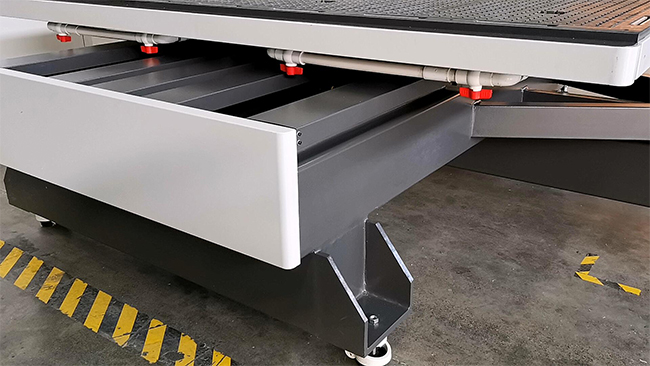

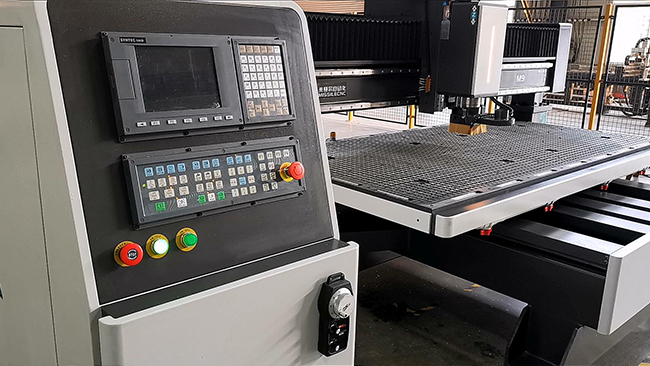

Details:

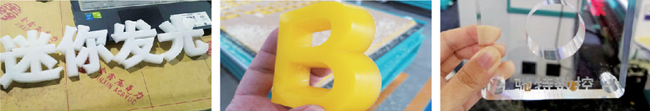

Samples:

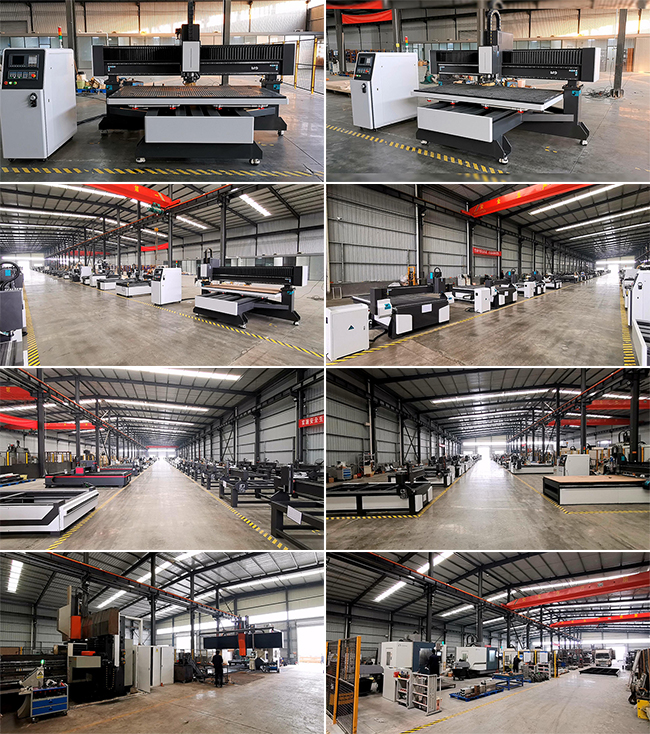

Factory:
