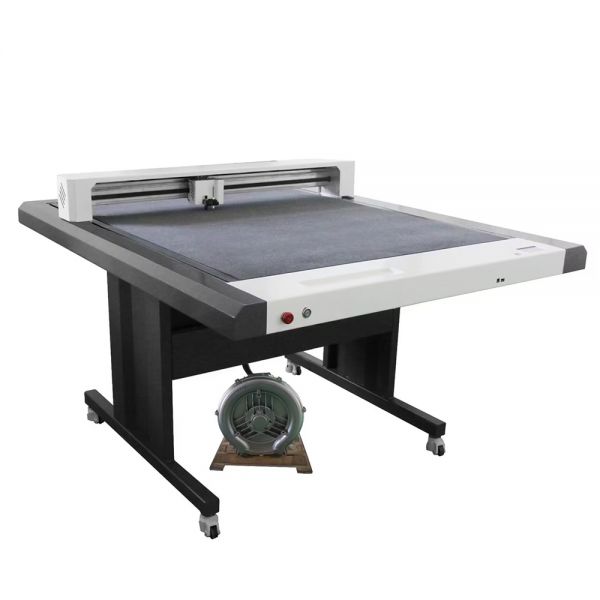

4060/6090/90120cm Digital Flatbed Cutter and Plotter

See larger image and other views (with zoom)

4060/6090/90120cm Digital Flatbed Cutter and Plotter

รหัสสินค้า:SIT-KX-FC6090

ราคา Unit : ฿ 124,800/pc (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

กรุณาเลือกประเภท

40*60cm 60*90cm 90*120cm

จำนวน: pc(s) Total Cost:
THB ฿124,800
น้ำหนักการส่ง: 462.0lb (210kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions:

4060/6090/90120cm Digital Flatbed Cutter and Plotter
Features:

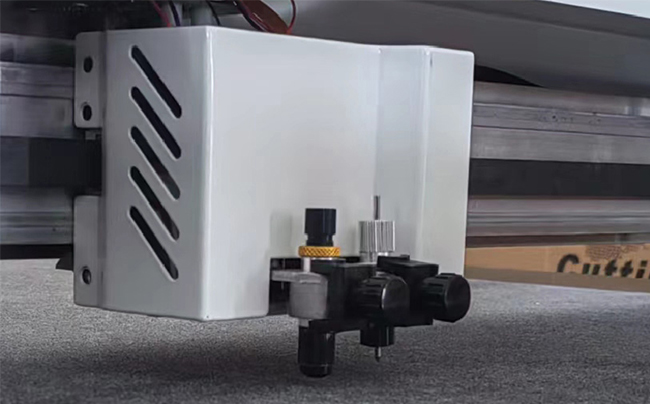

• Dual cutting head, perforated cutting, half cutting and creasing in one compact unit.
• Servo drivers control. Silent, precise and powerful servo drives for best cutting results.
• No cutting dies required, it can avoid the customer's constant modifications in designs which cause cost in sampling or proofing.
• CCD positioning, automatic patrol edge, can automatically scan points in cutting different shapes of designs, high precision, the real effects cut out same as the bit molded products.
• Comes with DragonCut Software, which reduces media waste and processing time. Compatible with a variety of different software, different computer operating systems, supporting independent research and development of dragon cutting software, unique contour recognition technology for JPG, PNG, BMP and other image format files without contouring operation but can accurate extraction with one-click generation of contours.

Suitable for cardboard, PVC, spray film, and a variety of flexible materials
• Pneumatic vacuum suction of media. With usage of the vacuum adsorption technology to firmly hold the medium and cut it more stably, and the paper doesn’t run around.
• Direct USB makes the flat bed cutter reliable and convenient. Plug and play, simple installation, no additional drivers needed.
• The linear guide of the flat bed cutter ensures high speed and few errors.
• The flat bed cutter has an LCD touch screen in English.
• Contour cutter cuts thin films and card up to 500gsm / 600micron. Cutting speed pressure can be adjusted as needed.
• Cuts typical SRA3 sheet in 30-60 seconds.
• Maximum cutting thickness is 1.3mm (0.05in)
• Fast speed: 10 seconds automatic positioning, one image can be completed in a few minutes, the machine is workable in 24 hours operation, possible for small volume production and no need of cutting die.

Comparing with the laser cutting machine, it doesn’t make black edges on cutting material, no burnt on thin cutting material, during working time there is no glare light as well as no smells.

Specification:

Model	JKF4060	JKF6090	JKF9012
Machine size	9908901000mm	129010601000mm	129015601000mm
Flatbed size	610*430mm	600*850mm	1100*850mm
Control panel	4.3 inches touch screen
Driver	Stepper motor
Max. cutting speed	1200mm/s
Max. cutting force	1000g
Max. cutting thickness	1mm
Interface	USB + U disk
Carriage	Single position carriage
Positioning	Color sensor, automatic positioning
Type of tool	Cemented carbide blade
Plotting pen type	all types diameter 11.4mm plotter pen
Plotting instruction	DMPL / HPGL automatic identification
Software	Anycut/CorelDRAW
Air pump	1.5KW
Power supply	AC220V 50HZ
Operating enviroment	Temperature:+5°C to +35°C, relative temperature 30%-70%
Operating language	English
Operating system	Windows XP,Vista,Windows7/Windows8/Windows10

Details:

Why do we need this Flatbed Cutting Plotter?
A. Some customers like to cut hard or thick medias, like PVC, reflective film, abrasive paper, hard paper, magnetic paper, PET, etc.
B. As we know, vinyl cutting plotter can not cut off media, to avoid cutting the mat. However, when some media need to be cut off in some cases, a flatbed cutter is necessary.
C. To cut soft media, which can not be realized by a cutting plotter, a flatbed cutter is a good choice.

Application:
Cuts cardboard, Kraft paper, plastic board, fibrous cardboard, rubber sheet and marking film etc.

Application Field:
Prototype and light production, on - demand packaging and sheet card cutting system - also suitable for sheet labels.

Process Material:
cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet and thin film etc.
PVC: Less than 0.4mm (0.0157in)
Reflective film: All types
Sandblast, Hard paper: Less than 450gsm
Magnetic Sticker: Less than 600micron
PET: Less than 0.3mm (0.0118in), vinyl, etc.

Process:

Certificate:

This product has no attributes!

Q&A

Model	SIT-KX-FC6090
Mainboard	32-bit CPU, 4Mb cache memory
Control panel	4.3 inches touch screen
Driver	Stepper motor
Flatbed size	600*900mm
Max. cutting speed	800mm/s
Max. cutting force	1200g
Max. cutting thickness	1mm
Interface	USB + U disk
Carriage	Single position carriage
Positioning	Color sensor, automatic positioning
Mechanical resolution	0.0254mm/step
Repeatability	0.127mm
Type of tool	Cemented carbide blade
Plotting pen type	all types diameter 11.4mm plotter pen
Plotting instruction	DMPL / HPGL automatic identification
Power supply	AC220V 50HZ
Operating enviroment	Temperature:+5℃ to +35℃, relative temperature 30%-70%
Operating language	English
Operating system	Windows XP,Vista,Windows7/Windows8/Windows10
