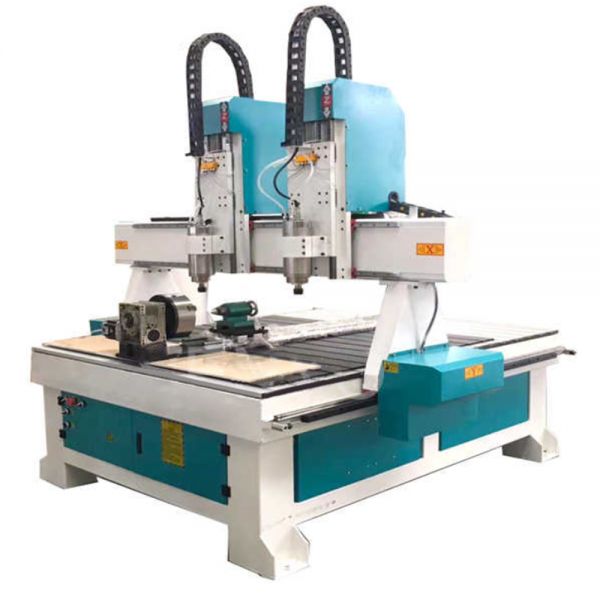

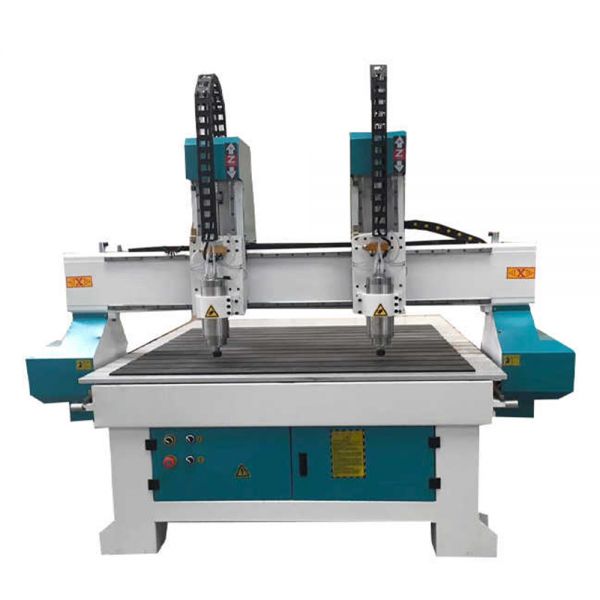

QL-1325 2 Heads Router CNC
  • QL-1325 2 Heads Router CNC
  • QL-1325 2 Heads Router CNC

See larger image and other views (with zoom)

QL-1325 2 Heads Router CNC

   |   15 Transactions

รหัสสินค้า:SIT-QL-1325-2

Buyer Protection

Features:

a:TWO spindles can use TWO SAME tools for two same work processing at the same time.The whole thick square welded tube frame with high-temperature artificial aging treatment to ensure strong,durable,without any deformation.

b: Y axis is adopted two-motor drives and high precision gears , rack drive to ensure high power , smooth operation.

c: The breakpoint memory ,power outages continue carving , processing time and other functions ,to ensure the situation In the next day to continue processing.

d: Intelligent protecting system that protect wood working machine from damages resulted from false operation.

e: Just a touch of the automatic lubrication system. Easy to complete regular maintenance.

f: The highest speed , the idling speed is up to 42m/min or more , in the production of wave plate engraving is up to 20 meters above.

Specifications:

Machine type QL-1325 Optional configuration
Working stroke 1300*2500*200 Can be customized
The structure of the machine Steel structure body, surface profile Square table / adsorption bed structure
The size of the machine 1950*3100*1650
Spindle power 3KW water cooled spindle The specified power / air / multi head
The maximum working speed 15m/min
Working voltage AC380V, 50HZ AC220V, 50HZ
Operating system Weihong system DSP handle or designated system
Working way Stepper motor Servo motor
Carving instruction G code, HPGL, U00, MMG, PLT
Transmission mode XY axis gear rack, Z axis ball screw drive
Available tool φ3.175-φ12.7

Details:

Application:

1.This machine is widely used in furniture processing industry, home decoration,wood working decoration,doors manufacturing, wood art craft and so on. it is also widely used in processing for single lines, milling,3D embossing, cutting and engraving etc.

2.Efficient manufacturing of wooden products, advertising billboard, acrylic cutting,letter mold form-ling and mass cutting. Also the machine can engrave on iron, brass,aluminum, plastic and wood boards and other non-metal materials.
