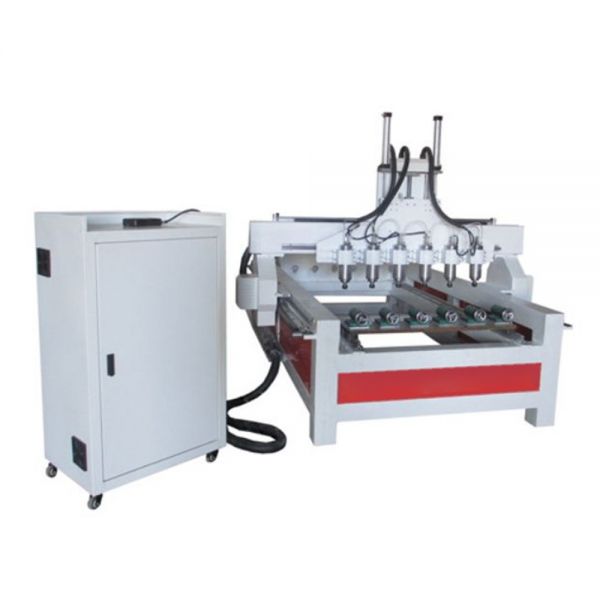

QL-1325 6 Heads Router CNC
  • QL-1325 6 Heads Router CNC

See larger image and other views (with zoom)

QL-1325 6 Heads Router CNC

   |   14 Transactions

รหัสสินค้า:SIT-QL-1325-6

Buyer Protection

Description:
1.6 Spindle Multi Head Cnc Machine
2.Time-saving woodworking CNC router
3.High-efficiency cnc router
4.Can work for cylinder materials and plate materials

Specifications:

Machine type QL-1325 Optional configuration
Working stroke 1300*2500*200 Can be customized
The structure of the machine Steel structure body, surface profile Square table / adsorption bed structure
The size of the machine 1950*3100*1650
Spindle power 3KW water cooled spindle The specified power / air / multi head
The maximum working speed 15m/min
Working voltage AC380V, 50HZ AC220V, 50HZ
Operating system Weihong system DSP handle or designated system
Working way Stepper motor Servo motor
Carving instruction G code, HPGL, U00, MMG, PLT
Transmission mode XY axis gear rack, Z axis ball screw drive
Available tool φ3.175-φ12.7
