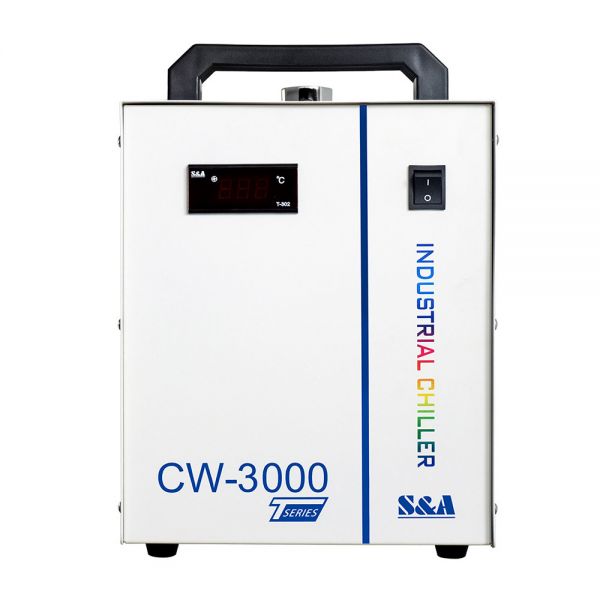

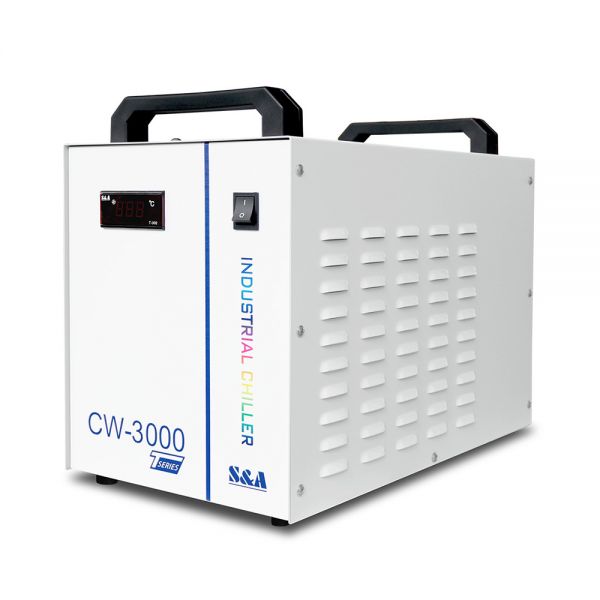

S&A CW-3000TG Thermolysis Industrial Water Chiller (AC220V 50Hz) for 60W or 80W CO2 Glass Laser Tube

See larger image and other views (with zoom)

S&A CW-3000TG Thermolysis Industrial Water Chiller (AC220V 50Hz) for 60W or 80W CO2 Glass Laser Tube

รหัสสินค้า:SIT-CW-3000TG

ราคา Unit : ฿ 5,008/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿5,008
น้ำหนักการส่ง: 26.4lb (12kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

Wooden Box: There is total one carton box.

Machine Dimension	490mm x 270mm x 380mm (19.3" x 10.6" x 15")
Machine Weight	9.5kg(20.9lb)
Package	Carton box
Packing Size	590mm x 390mm x 480mm (23" x 15.4" x 19")
Gross Weight	12kg(26.5lb)

Caution: The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction, children supervised not to play with the appliance!

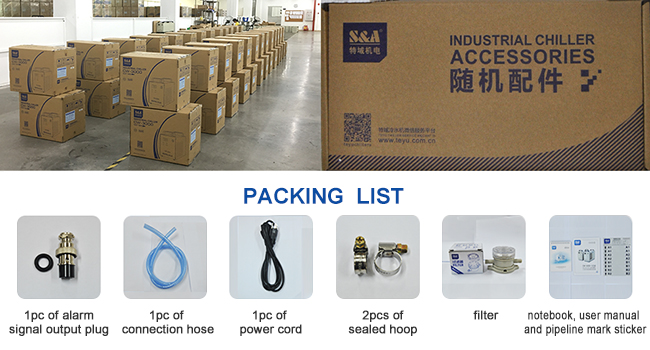

Packing List:

	CW3000 water chiller machine	1 set
	Power cable	1 pc
	Connection hose	1 pc
	Sealing washer	2 pcs
	250V/2A spare fuse (Mounted on the power socket interface within the insurance reserve)	1 pc
	User manual	1 pc
	Alarm signal output plug	1 pc

CW 3000 Water Chiller

Agent Certificate of Authorization

User Manual for CW-3000 Series Water Chiller

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

CAUTIONS

We are authorized as "S&A" brand name product agent.
All of S&A water chillers are certified with design patent. Counterfeiting is not allowed,
Please recognize S&A logo when you purchase S&A water chillers.

Description

S&A CW-3000 series thermolysis type water cooler has compact design,with energy saving,high cost performance,good protection and alarm system.
This Water Chiller has been sold largely to Europe, South America, Asia and other markets;
Economic cooling equipment, easy to install and operate, compact and easily movable.

Remarks: CW3000 water chillers are equipped high speed fans inside, NOT able to control the water temperature. Please confirm before place an order. The products are nonrefundable after selling, only if quality issue.

Used for:

It is designed for cooling the one CO2 glass laser tube under 80W of the laser engraving and cutting machine. (Its emitting rate is lower than 60%, you can choose CW5000 water Chiller if you want the emitting rate higher than 60 %.)

Features：

Specific disconnection alarm securing protection;
High cost performance, low failure rate;
Radiating Capacity is 50W / ℃;
Forces circulation, 9L cooling tank capacity;
It can extend the using life of laser tube and ensure the engraving effect better.
Comprehensive reference to the international radiator - type cooling system;
Small thermolysis water cooler;
With completed water flow and over high temperature alarm functions;
Professional forced air - cooled radiator;
CW-3000 Laser Water Chiller is suitable for small water cooling device;
Provide stable working conditions for laser devices;
High heat dissipating capacity and not easy to be blocked.

SPECIFICATION

Model	SIT-CW-3000TG
Voltage	AC 1P 220V
Frequency	50/60Hz
Current	0.45A
Machine power	0.10KW
Radiating capacity	50W/℃
Max.lift	10M
Max.flow	10L/min
N.W	9.5Kgs
G.W	12Kgs
Protection	flow alarm
Tank capacity	9 L
Inlet and outlet	OD 10mm barbed connector
Dimension	49X27X38 cm (L X W X H)
Package dimension	59X39X48 cm (L X W X H)

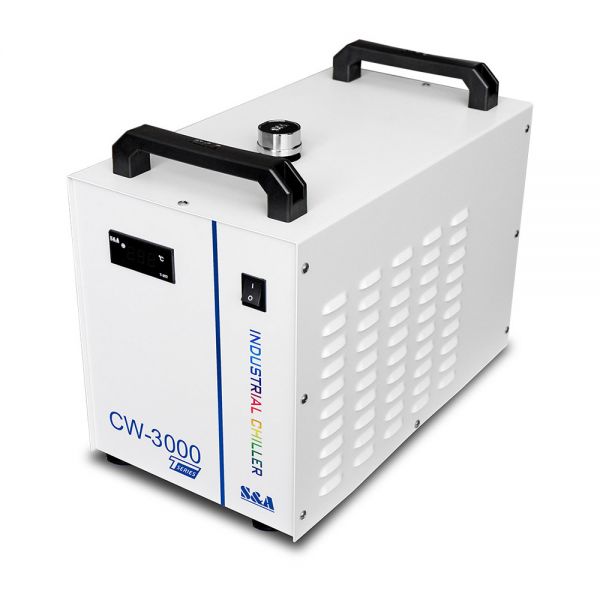

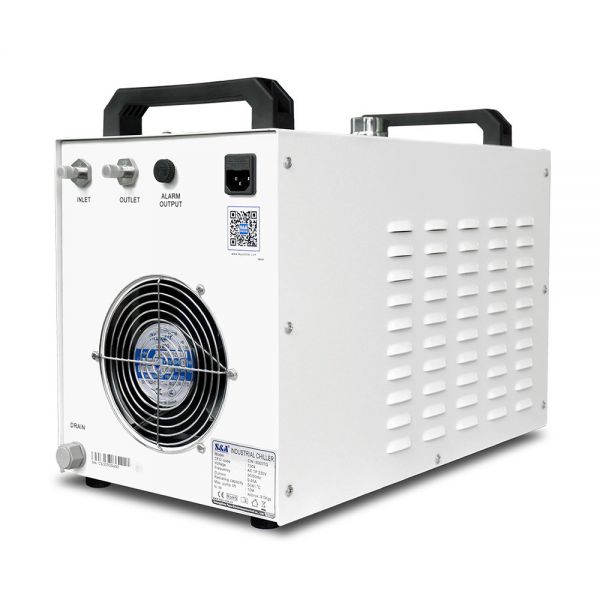

CONTOUR AND PARTS INTRODUCTION

Independent production of sheet metal and heat exchanger . 9L cooling tank, fast cooling.
Adopt IPG fiber laser for welding and cutting sheet metal, adopt minimize risks of water and refrigerant leakage and improve quality

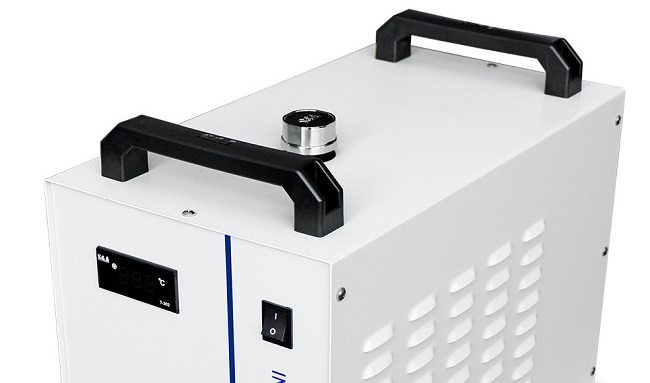

Ease of moving and water filling.
The firm handle can help move the water chillers easily.

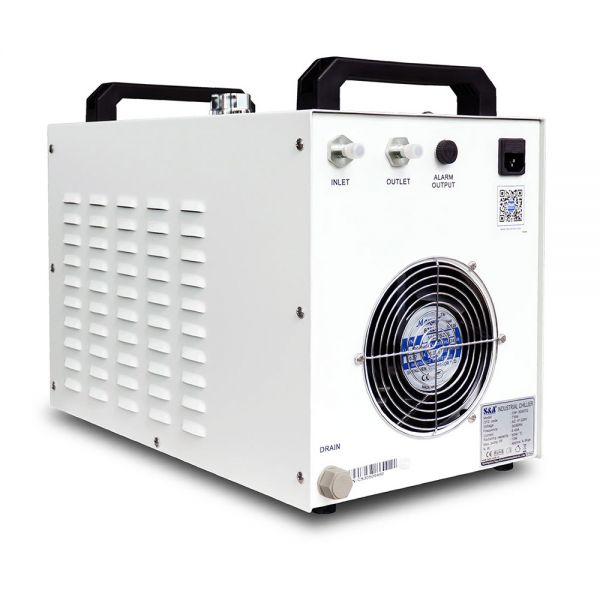

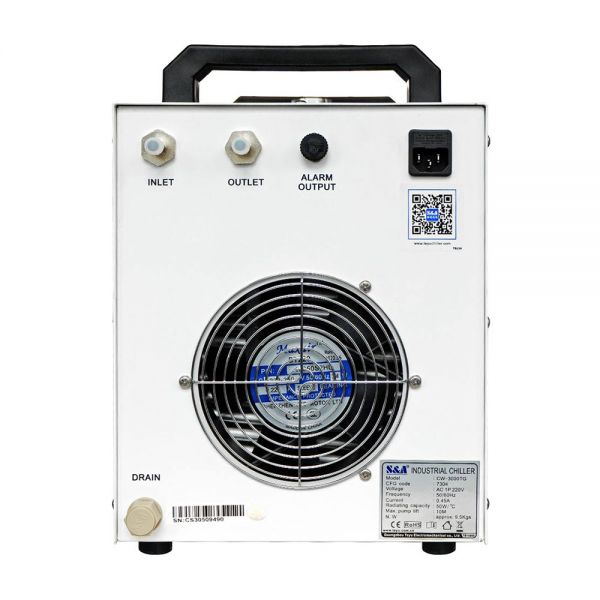

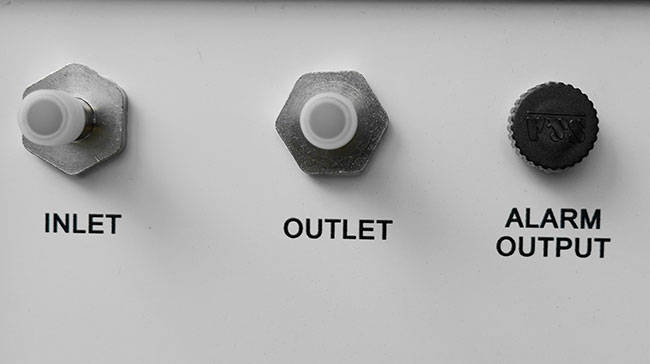

Inlet and outlet connector equipped. Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

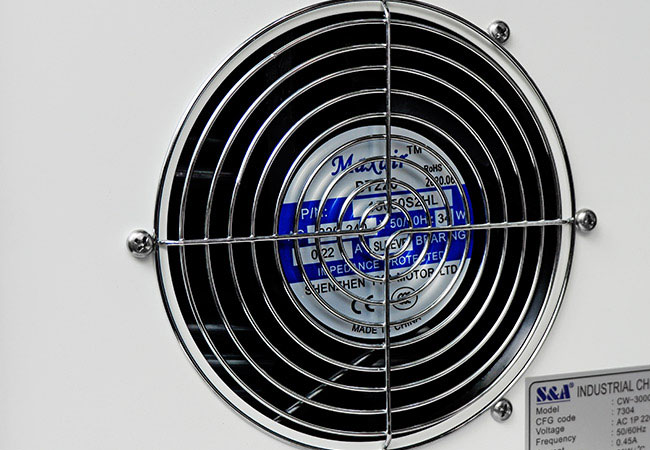

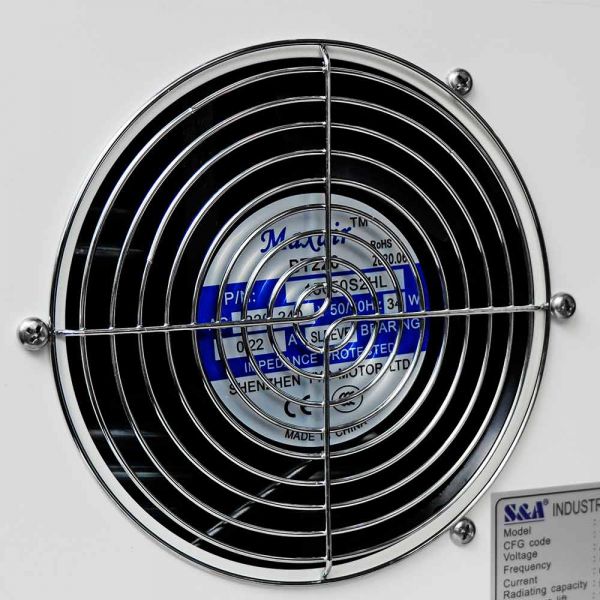

High speed fan of famous brand installed.
Adopt SAN JU brand from Taiwan with quality assurance and low failure rate.

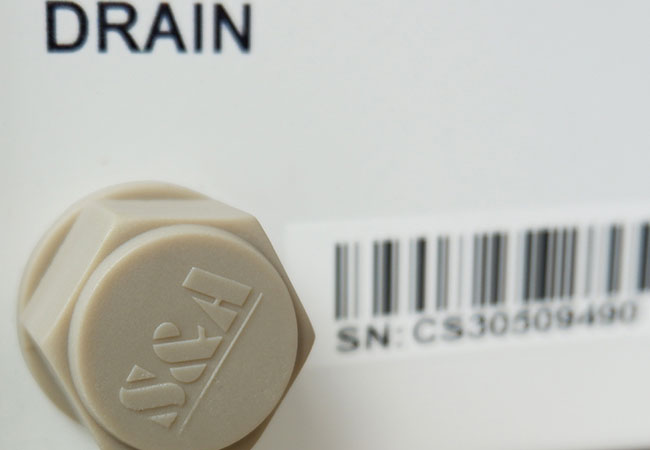

Easy water draining
It is suggested to replace the cooling water(distilled water or purified water as cooling water) every 3 to 6 months.

Connection diagram between water chiller and laser machine

Water outlet of the water tank connects to water inlet of the laser machine while water inlet of the water tank connects to water outlet of the laser machine. Aviation connector of the water tank connects to the aviation connector of the laser machine.

FLOW ALARM AND OUTPUT PORTS

In order to guarantee the equipment will not be damaged while cooling water circulation is out of control, CW-3000series water cooler possess a low flow alarm protection.

(1) Flow alarm output ports and the wiring diagram

(2) ALARM DESCRIPTION

Causes of the cooling water circulation alarm and the working condition table

Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 5A, working voltage less than 300V.

MAINTENANCE

Method of exchanging water in the water tank and the exchanging frequency

Method of exchanging water in the water tank

Drain the waste water out of the water tank through the drain outlet and fill the clean water into the tank through the filling hole

Exchanging Frequency

The purified water should be exchanged once a month and the running water should be exchange twice a month. The quality of the circulating water will directly influence the service life the laser tube.It is recommended to use purified water.

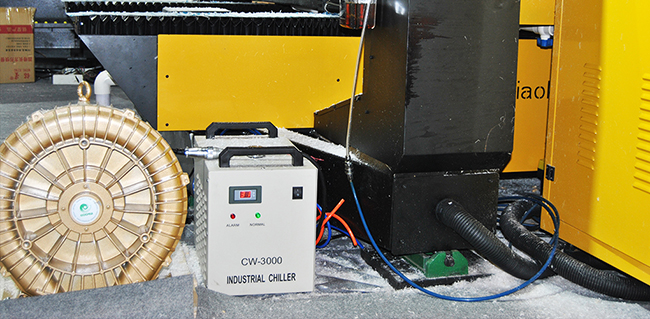

Application

S&A CW-3000 chiller for 3KW CNC spindle machine

S&A CW-3000 water cooler for 60W co2 laser machine

S&A CW-3000 chiller for dual 1.5KW engraving machine

S&A CW-3000 chiller for 80W co2 laser cutting machine

S&A CW-3000 chiller for acrylic laser cutting machine

Certificate

With 11 patent certificates and won Quality integrity Level A certificate; ISO 9001, CE, RoHS and REACH environmental certificated. Conforms to air transport requirements, energy saving and environment friendly.

Warehouse

18,000 square meters brand new industrial refrigeration system research center and production base ，Strictly execute ISO production management system, using mass modularized standard produces, and standard parts rate up to 80% which are the source of quality stability.
Annual production capacity of 60,000 units, focus on large, medium and small power chiller production and manufacture.

Test System

With excellent laboratory testing system, simulates actual working environment for chiller. Overall performance testing before delivery: aging test and complete performance test must be executed on each finished chiller.

Packing

Installation

It is very simple to install this industrial cooling machine. The first time installation of the new machine can be carried out by following steps.

Open the package to check if the machine is intact and all the necessary accessories are completed.

Open the injection port to feed cooling water. (Do not let the water spill over!)

According to system conditions, please connect the water inlet and outlet pipe well.

Plug in power, turn on the power switch. (Do not start up without water in the water tank!)

(1) Power switch turned on, the circulation pump of the chiller starts working. The first time of operating may cause more bubbles in the pipe leading to a flow alarming occasionally, but running for a few minutes later, it will go back to normal.
(2) After the first boot, you must immediately check whether the water pipe leaks.

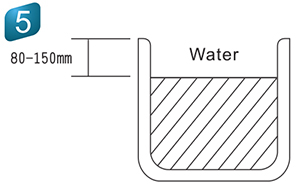

Check the water level of the water tank again. (It should be 80-150cm from the surface of water to the injection port)

Cautions

Please ensure that the power supply and electrical outlet are in good contact and the earth wire must be firmly grounded!

Please make sure there is stable and normal voltage for the working chiller!

As the refrigeration compressor is more sensitive to the power supply and voltage, so the operating voltage of our standard product is of 210 ~ 240V (110V model is of 100 ~120V). If you do need a wider operating voltage range, customization is available for us.

Unmatched power frequency can cause the chiller damage!

Please choose model of 50Hz or 60Hz according to actual circumstance.

To protect the pump, it’s strictly forbidden to run the chiller without water in the storage water tank!

The new machine is packed after draining whole water in the tank, so please make sure the tank has water inside before machine starting, otherwise it’s easily to have the pump damaged.
To drain through circulating pump is strictly prohibited!

Please be sure that the air inlet and air outlet are in good ventilation!

There must be at least 30cm from obstructions to the air outlet which is in the back of the cooler, and should leave at least 8cm between obstructions and the side air inlet.

The cooling water must be drained if the cooler is out of use for long time or before being transported.

To protect laser heating devices , the radiator fan of cooler will suspend to work when water temperature is lower ( about 10℃ ) , and it will restart to run when water temperature rises to higher ( about 20 ℃).

Troubleshooting

Failure	Failure Cause	Approach
Machine turned on but unelectrified
	Power cord is not plugged in place	fuse burnt-out
	Plug the power cord in place	Replace the fuse inside the power interface which is in the back of machine
Flow alarm (panel red light) with water pipe directly connect to the outlet, inlet, there is no water flow	Water level in the storage water tank is too low	Feed water and check the pipe leakage
When used with the device, flow alarm (panel red light), but a direct connection with the pipe outlet and inlet, there is water flowing but not alarming	Blockage in circulating water pipeline	Check circulating water pipeline
Ultra-high temperature
	Chiller of poor ventilation	Excessive heat load
	To improve the ventilation	Reduce the heat load or to use other models
A normal boot, but the fan does not work	The water temperature below 20 degrees	A normal phenomenon, no processing
Switch on with alarming after adding water or changing water
	Water drop in electric circuit	Damaged pumps dry transfer
	Natural drying or drying off cap	To replace or repair water pumps,prohibited anhydrous boot
Slow outfall drainage	The injection port is not open	Open the injection port

ช่วงการควบคุมอุณหภูมิ	5~35℃
อัตราการไหล	9L / min
แรงกด	10M
ความเย็น	50W / ℃

Q&A

Model	CW-3000TG
Power Supply	220-240V, 50HZ
Current	0.45A (AC220 – 240V)
Machine powe	0.10KW
Machine power	0.10 KW
Tank Capacity	9L
Cooling	Radiator that forces the wind cooling
Amount of Cooling	50W / ℃
Way of Circulation	Water pump forces circulation
Maximum Flow	9L / min
Maximum Pumping Lift	10m
Inlet and Outlet	OD 10mm barbed connector
Protection	Flow alarm
