Full Set Manual Pad Printing Machine Kit(Printer&Exposure Unit&Ink Cup&Polymer Plate&Silicone Pads&Film&Brush)
  • Full Set Manual Pad Printing Machine Kit(Printer&Exposure Unit&Ink Cup&Polymer Plate&Silicone Pads&Film&Brush)

See larger image and other views (with zoom)

Full Set Manual Pad Printing Machine Kit(Printer&Exposure Unit&Ink Cup&Polymer Plate&Silicone Pads&Film&Brush)



รหัสสินค้า:PPM-SZTJ-KIT02

  • ราคา Unit : ฿ 14,437/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • จำนวน: set(s) Total Cost: ฿14,437
  • น้ำหนักการส่ง: 52.8lb (24kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

Full Set Manual Pad Printing Machine Kit(Printer&Exposure Unit&Ink Cup&Polymer Plate&Silicone Pads&Film&Brush)

Pad printing is a printing process that can transfer a 2-D image onto a 3-D object. This is accomplished using an indirect offset (gravure) printing process that involves an image being transferred from the printing plate (cliché) via a silicone pad onto a substrate (surface to be printed). The unique properties of the silicone pad enable it to pick the image up from a flat plane and transfer it onto a variety of surfaces.

Physical changes within the ink film both on the cliché and on the pad allow it leave the etched image area in favor of adhering to the pad, and to subsequently release from the pad in favor of adhering to the substrate (material being printed).
This pad printing set is the compact all-in-one solution for anyone who wants to print irregular surface on various substrates shape, helps you realize your dream and start your first pad printing workshop with all the pad printing products at discounted and always affordable prices.

Our pad printing kit is the solution for getting started professionally with serial pad printing. our pad printing kit is also ideal for those who want to learn pad printing,Our pad printing kit includes pad printer machine inks, photopolymer plates, pads and everything you need to start your new job immediately.you don’t need to prepare any other things if you own the kit, With our richly illustrated text instructions for pad printing and our popular tutorial videos, we offer full support for this set and enable a successful entry into the world of pad printing right away.

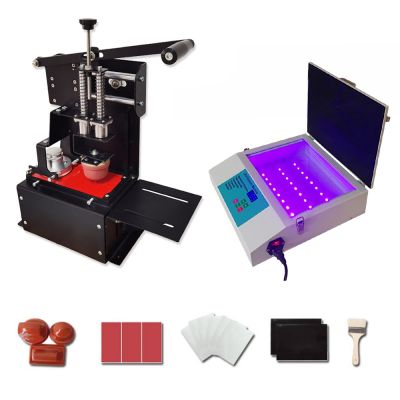

Items included:

Application:
Pad printing is used for printing on various substrates like Plastics, Metals, Glass and Ceramics,Paper and Cardboard,Leather.It is primary used in places where the printing area is small and/or the contour or surface of the object is not flat or hard to reach by other printing process.

Manual Pad Printer with 2.7in Ink Cup

Specifications:
Printing plate size:7.87in x 3.9in(200mm x 100mm)
Max printing area:2.7in x 2.7in(70mm x 70mm)
Printing speed:500pcs/h
Ink cup:closed ink cup with ceramic ring
Packing size: 19.7in x 11.8in x 9.4in(500mm x 300mm x 240mm)
Gross Weight:35.2lbs(16kg)



8in x 11.8in 16W Mini LED Exposure Machine Screen Printing Equipment
Parameters:

Time Range: 0-999 seconds
Voltage: 110V or 220V
Exposing area:8in x 11.8in (210mm x 300mm )
Digital Auto-Off timer with Auto-Repetition
LED Light strip
21 x30 cm exposure capacity
Light power: 16W
Machine size: 12.6in x 12.5in x 4in (320mm x 317mm x 108mm)
Heavy duty extruded steel frame
User-friendly desktop design with long-term life span
Packing size: 16.9in x 16.9in x 7.5in(430mm x 430mm x 190mm)
Gross Weight: 11lbs(5kg)

Materials:
