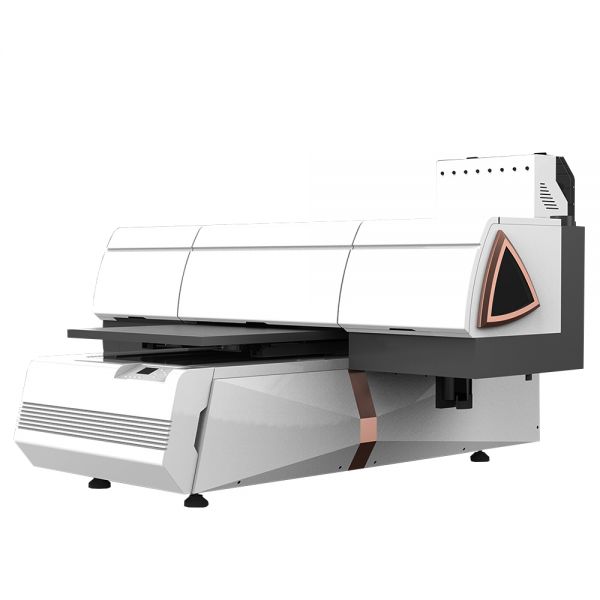

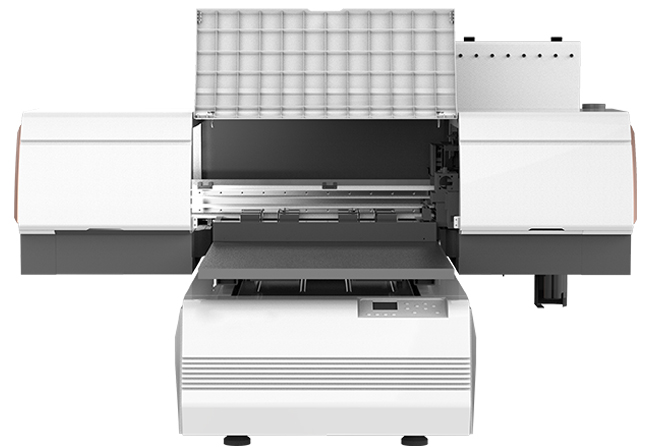

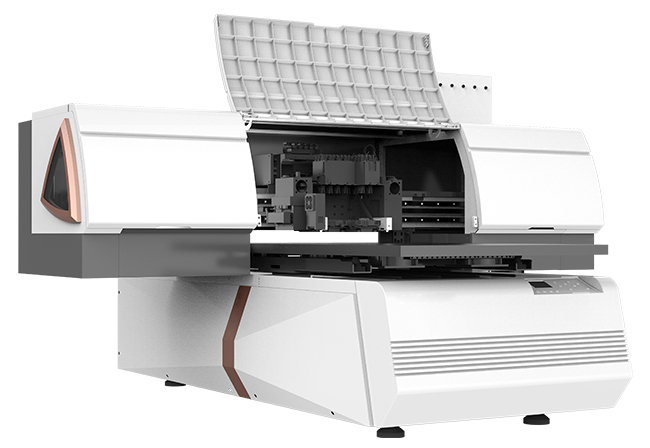

60*90 UV Printer with 3 Epson Printheads
  • 60*90 UV Printer with 3 Epson Printheads
  • 60*90 UV Printer with 3 Epson Printheads
  • 60*90 UV Printer with 3 Epson Printheads

See larger image and other views (with zoom)

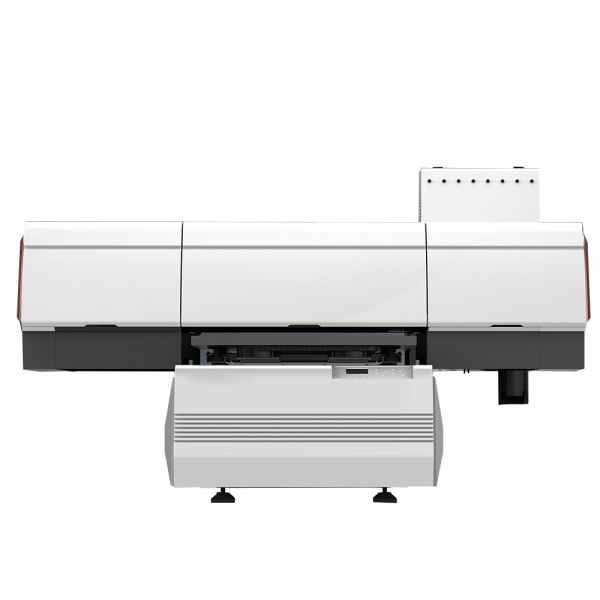

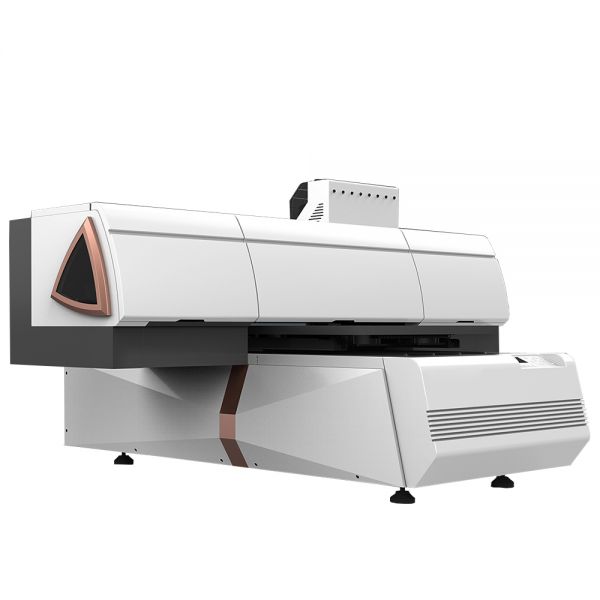

60*90 UV Printer with 3 Epson Printheads

   |   34 Transactions

รหัสสินค้า:SIT-NC-6090MAX-3200

  • ราคา Unit : ฿ 480,734/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน25-45วัน)

    • กรุณาเลือกประเภท

    กรุณาเลือกประเภท: 3-head Cylinder
  • จำนวน: set(s) Total Cost: ฿480,734

  • น้ำหนักการส่ง: 792.0lb (360kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to Cart
Buyer Protection

60*90 UV Printer with 3 Epson Printheads

Description:
It is the best choice for startups and medium-size businesses! Our ink delivery system prevents the white ink from clogging Printhead. Hassel-free operation. Breaking through the bottleneck of digital printing technology, can achieve a piece of paper printing, no plate-making, full-color image printing. The original design and manufacture was mainly used for the printing of rigid materials, which broke the limitation that inkjet technology can only print on soft materials.

1. Personalized design, unique suction platform to ensure flat printing;
2. Support CMYKLcLm+W+V printing at same time with fast speed, high efficiency and time saving;
3. Compared with the modified machine, more compact structure, less application boards, more stable performance, and more convenient maintenance;
4. Epson I3200 printhead, cost-effective, high precision, easier to maintain and replace;
5. Intelligent ink supply system: new board control, built-in ink heating system, ink circulation in the ink tube to prevent ink precipitation;
6. New ink stack design, cleaning and moisturizing function, ink car self-locking function, lock the ink cart when not printing, prevent the ink stack from rebounding;
7. Independent flashing setting: designed for printhead flashing, which makes the printhead use more smoothly. The aluminum beam is equipped with an air purification system to remove dust, moisture and other interference printing factors.

Application:
For printing gifts, crafts,paper, glass,cup,mobile phone cell, glass, acrylic, PVC,boards ,leather, canvas,etc.

Specification:

Printhead configuration Epson i3200-U1*1White Epson i3200-U1HD*1Color Epson i1600-U1*1Vanish
Print head picture
Nozzle spray force rang 2-12mm 2-12mm 2-12mm
Number of nozzles 3200(indivual) 1600(indivual) 3200(indivual)
Distance between nozzls 1/300(inch) 1/300(inch) 1/300(inch)
Number of nozzle rows 8 8 4
Maximum number of support ink colors 4 8 4
Droplet ejection performance
(droplet volume an dejection fre quency)		 2 levels of grayscale 5pl(43.2kHz) 5pl(43.2kHz) 5pl(43.2kHz)
3 levels of grayscale 6,12.5 pl(21.6kHz) 6,12.5 pl(21.6kHz) 6,12.5 pl(21.6kHz)
4 levels of grayscale 3.8,6.2,9.3 pl(21.6kHz) 3.8,6.2,9.3 pl(21.6kHz) 3.8,6.2,9.3 pl(21.6kHz)
Print size 600*900mm
Print height 0-180mm
Print version White,Color&Varnish
Print mode CMYK Lc Lm Lk LIk+W+V
Resolution 720*600dpi/720*900dpi/720*1200dpi
Printer dimension 1676mm*1638mm*975mm
N.W. 226KG
Packing size 1.86m*1.81m*1.05m
G.W. 430KG
Rip software FlexiPRlNT MiniServer 22 Nocai Edition
Print speed range High quality mode (8pass) 9-23min/version
Standard production mode (6pass) 7-17min/version
High-speed production mode (4pass) 4-12min/version
Graphic and text format Tiff,Jpg,Eps,Pdf,Png,AI
Connection method Cable
Voltage AC220V/110V+10，50HZ~60HZ
Rated power 470W
Working environment Temperature 20°C-28°C
Humidity 35%-65%
Operating conditions Dust Avoid dusty environments
Illumination Avoid direct sunlight
Ink type Environmentally friendly UV curing ink
Fixture (optional)
Electric cylinder fixture
Support cylinder diameter Φ30-120mm
Support cylinder length 40~430mm
Applicable materials Spray paint cup, stainless steel, plastic, glass, ceramic,wood, acrylic,etc.
Round bottle printing method C+W (Round bottle mode does not support varnish printing)
Round bottle printing speed 3-20min/indivual
Cylindrical fixture packaging dimensions 68*39*14cm
Cylindrical fixture packaging weight 12KG

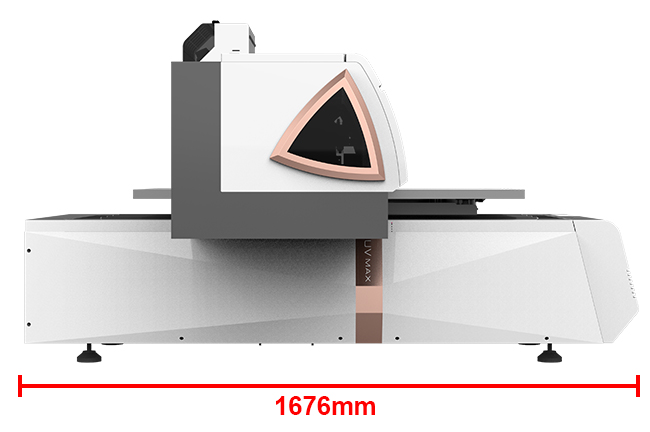

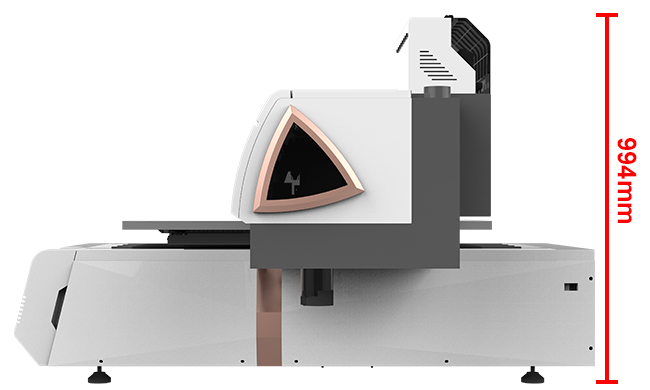

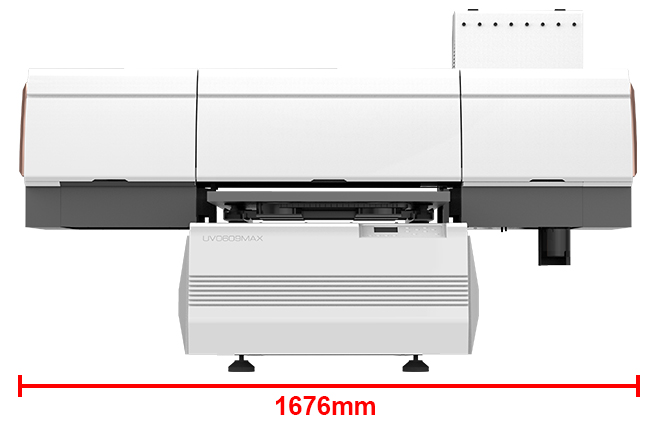

Product size:
Details:

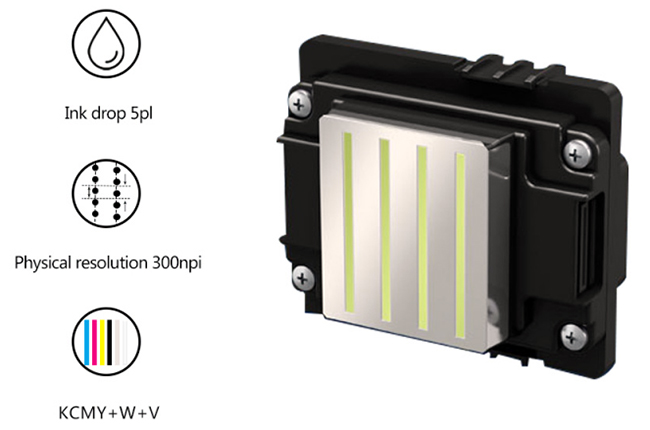

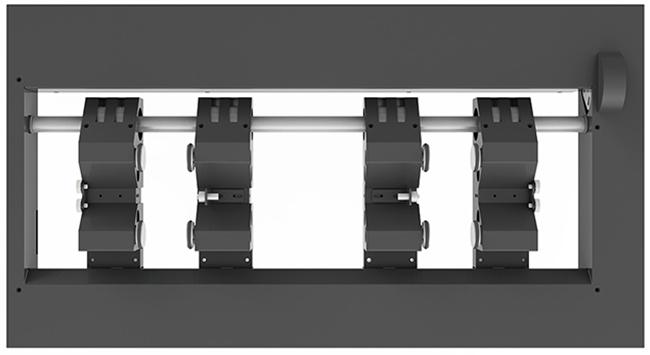

EPSON I3200-U1 Printhead
High precision, high efficiency, bright and delicate colors.

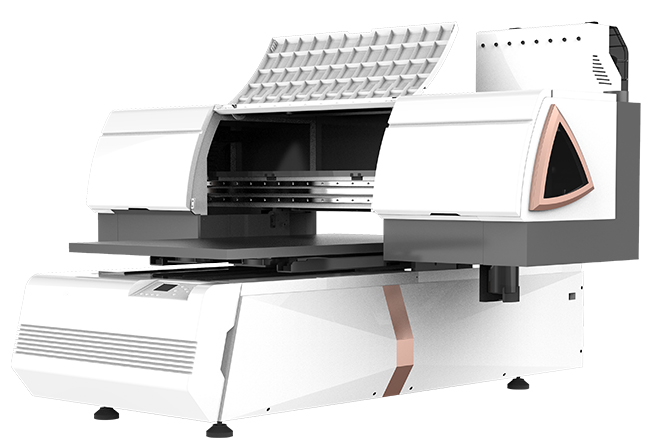

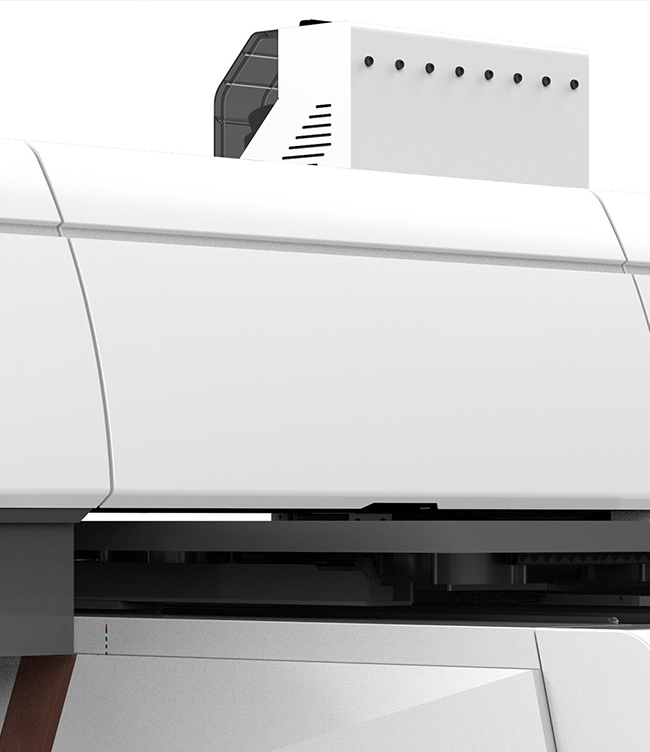

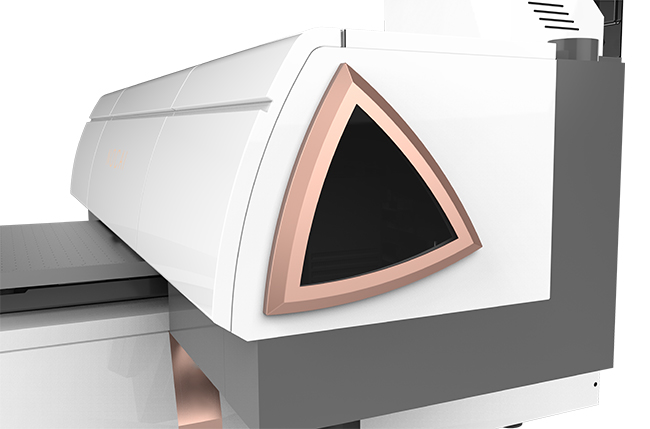

Full Coverage Shade Cover
Light, dustproof, more safety.

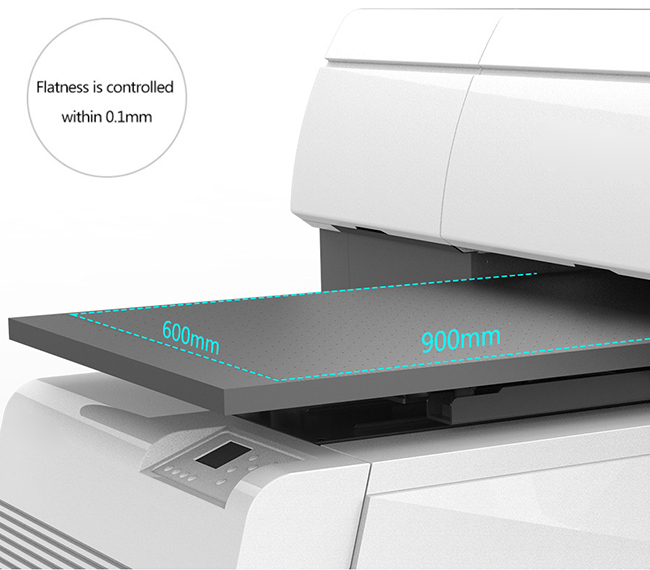

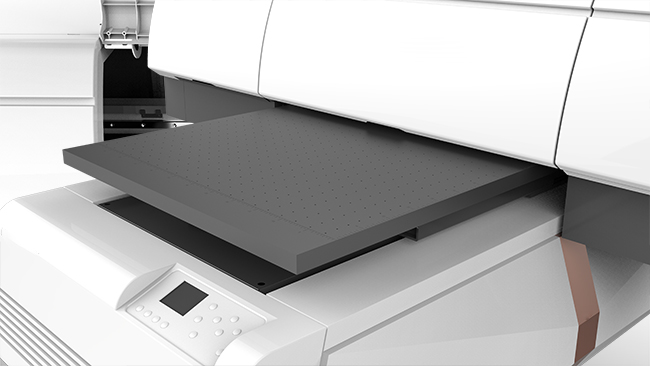

Standard scale printing platform
Made of aluminum plate material, internal honeycomb structure, Not easy to deform, high flatness.

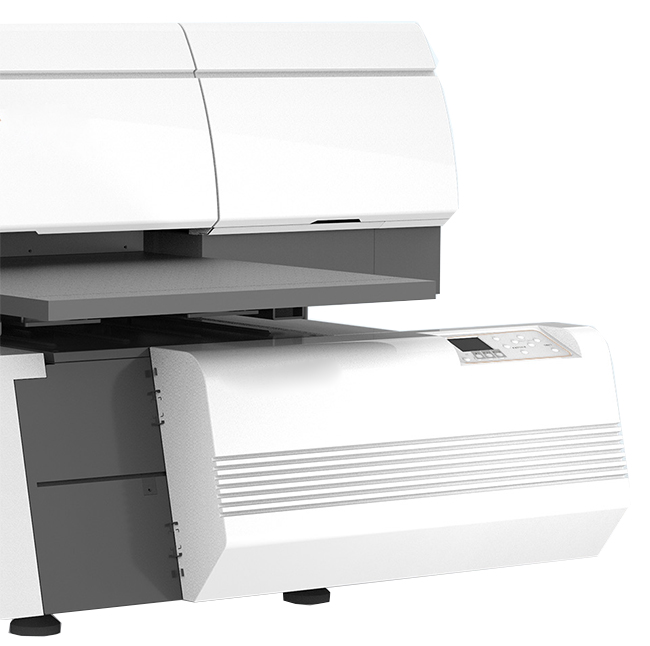

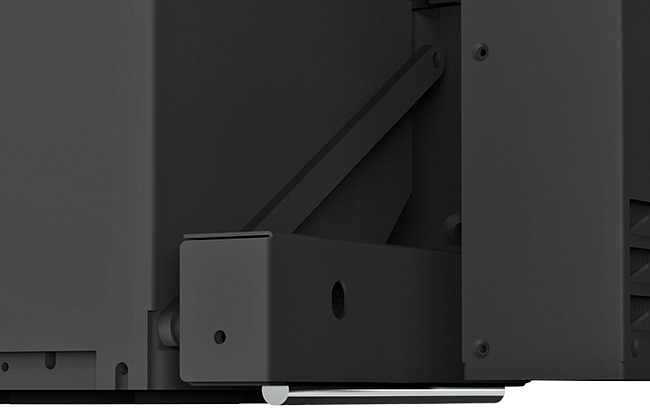

Retractable control panel
The panel can be stretched and adjusted, and the operation is convenient.

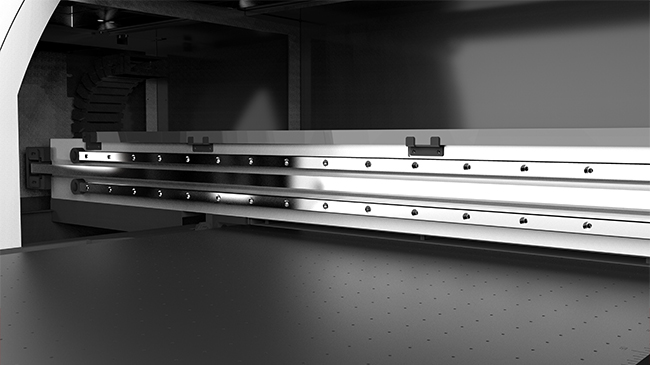

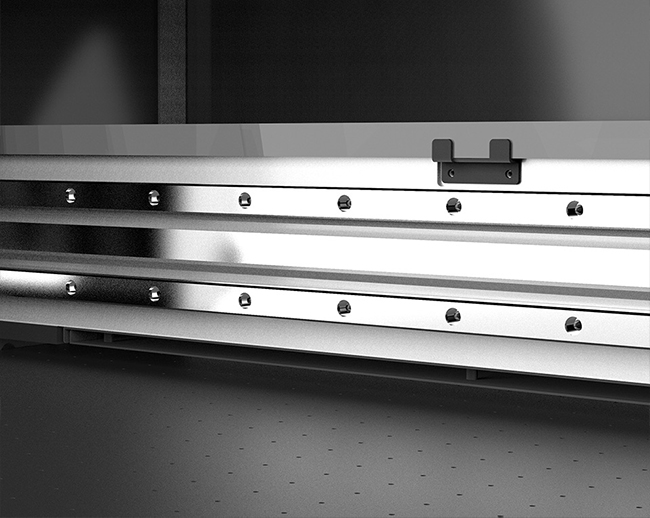

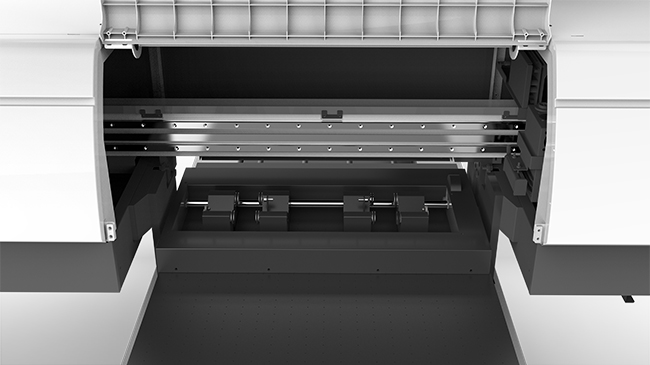

Double row linear guide
x-axis adopts double-row linear guides, which makes printing more stable and ensures printing accuracy.

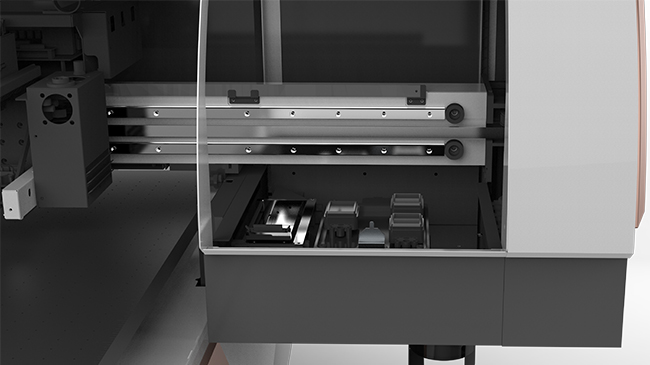

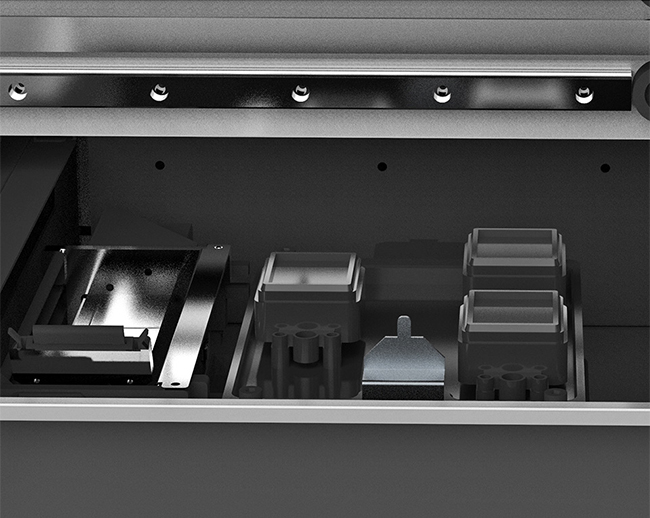

Lifting ink station design
Driven by motor, accurately control the position, intelligently protect the print head.
Smart Touch Collision Avoidance System
The bottom of the ink car is equipped with an anti-collision sensing device to protect the print head and the product from being scratched.

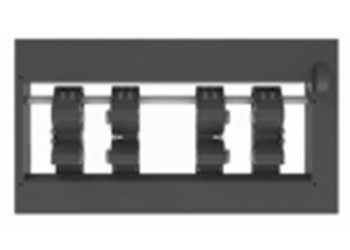

Electric Cylindrical Fixture
Accurate alignment, convenient operation, and 360 degree rotation printing.

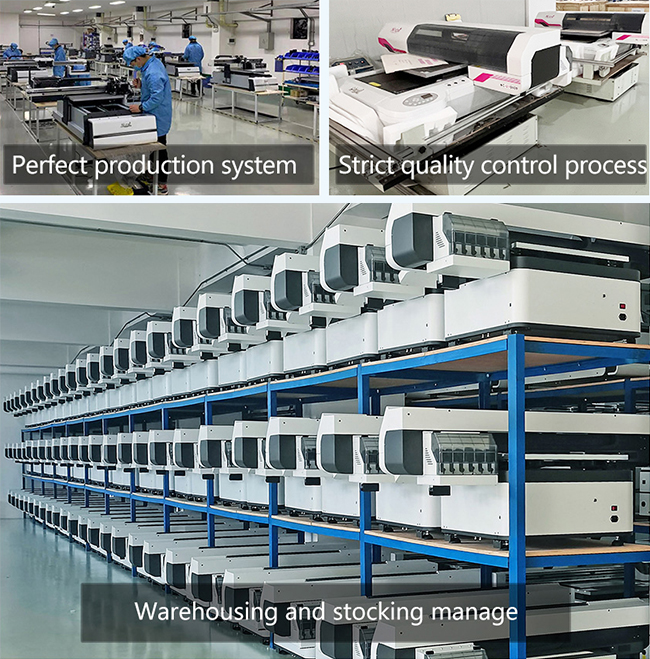

Application:Factory:
