CWUL-10BITY Industrial UV Laser Water Chiller System For 10W-15W UV Laser Marking Machines
  • CWUL-10BITY Industrial UV Laser Water Chiller System For 10W-15W UV Laser Marking Machines

See larger image and other views (with zoom)

CWUL-10BITY Industrial UV Laser Water Chiller System For 10W-15W UV Laser Marking Machines



รหัสสินค้า:CWUL-10BITY

  • ราคา Unit : ฿ 30,999/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • จำนวน: set(s) Total Cost: ฿30,999
  • น้ำหนักการส่ง: 59.4lb (27kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

CWUL-10BITY Industrial UV Laser Water Chiller System For 10W-15W UV Laser Marking Machines

TEYU high-efficiency heat dissipation industrial chiller CWUL-10 is the perfect cooling solution for your 10W-15W UV laser marking machines! It delivers high temperature stability of ±0.3℃ and a refrigeration capacity of up to 1080W, providing active cooling for UV laser marker to ensure stable laser output. Being in a compact and lightweight package, this portable water chiller is built to last with low maintenance, ease of use, energy efficient operation and high reliability.

Features

1. Cooling capacity of 1080W
2. ±0.3°C precise temperature control
3. Temperature control range 5°C ~35°C
4. Active cooling
5. Compact and lightweight package
6. Easy water fill port
7. Visual water level
8. Integrated alarm functions
9. Easy maintenance and mobility

Specification

Model  CWUL-10BITY
Voltage  AC 1P 220-240V
Frequency  60Hz
Current  0.4~5A
Max. power consumption  1KW
Compressor power  0.35 kW
 0.47HP
Nominal cooling capacity  2559Btu/h
 0.75kW
 644Kcal/h
Precision  ±0.3℃
Pump power  0.09kW
Tank capacity  6 L
Inlet and outlet  Rp1/2"
Max. Pump pressure  2.5bar
Max. pump flow  15L/min
Refrigerant  R-134a
Reducer  Capillary
N.W.  24Kg(53lb)
G.W.  27Kg(59.5lb)
Dimension  22.8" x 11.4" x 20.5" (58cm x 29cm x 52cm)
Package Dimension  25.6" x 14.2" x 22" (65cm x 36cm x 56cm)


Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

PRODUCT INTRODUCTION

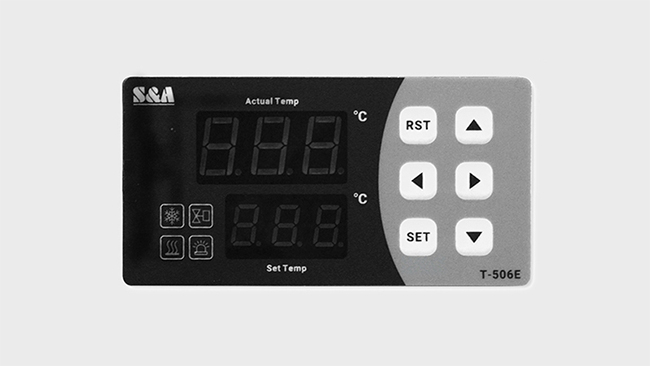

Intelligent temperature controller
The temperature controller offers high precision temperature control of ±0.2°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.

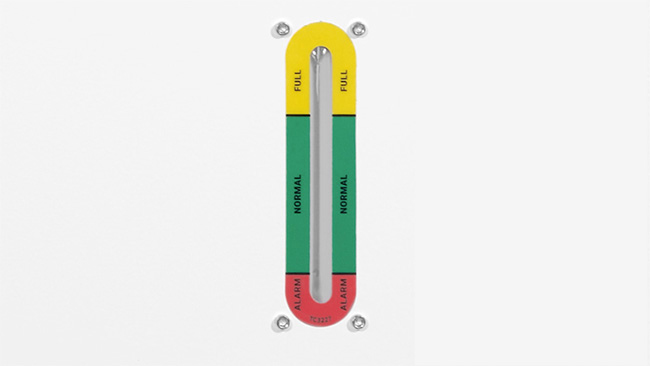

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

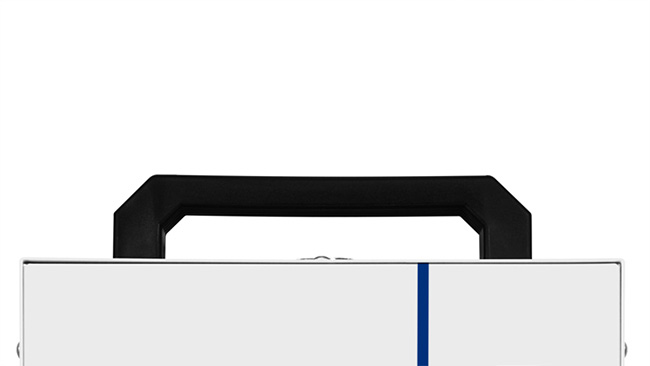

Integrated top mounted handles
The firm handles are mounted on top for easy mobility.
