S&A RMUP-500AI 6U Rack Mount Industrial Chiller Unit for Cooling 10W-15W UV Lasers Ultrafast Laser
  • S&A RMUP-500AI 6U Rack Mount Industrial Chiller Unit for Cooling 10W-15W UV Lasers Ultrafast Laser

See larger image and other views (with zoom)

S&A RMUP-500AI 6U Rack Mount Industrial Chiller Unit for Cooling 10W-15W UV Lasers Ultrafast Laser



รหัสสินค้า:CW-RMUP-500AI

  • ราคา Unit : ฿ 64,017/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • จำนวน: set(s) Total Cost: ฿64,017
  • น้ำหนักการส่ง: 52.8lb (24kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

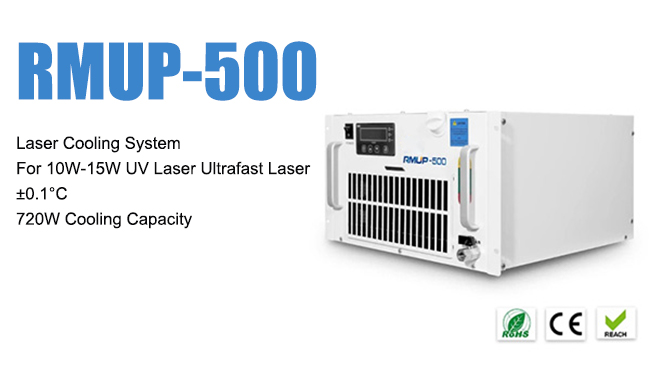

S&A RMUP-500 6U Rack Mount Industrial Chiller Unit for Cooling 10W-15W UV Lasers Ultrafast Laser
TEYU rack mount water chiller RMUP-500 features a 6U rack mount design and is perfect for 10W-15W UV laser and ultrafast laser applications. Mountable in a 6U rack, this industrial water cooling system allows the stacking of related devices, indicating a high level of flexibility and mobility.
It delivers extremely precise cooling of ±0.1°C stability with PID control technology. A water level check is installed in the front with thoughtful indications. Water temperature can be set between 5°C and 35°C with constant temperature mode or intelligent temperature control mode for selection.

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

Features:
1. With environmental refrigerant.
2. Rack mount design, long working life and simple operation.
3. ±0.1℃ precise temperature control.
4. Equipped with RS485 Modbus RTU protocol
5. 12 types of alarm codes
6. Intelligent detection functions such as water level, flow rate and water temperature
7. Heating of the coolant water at low ambient temperature
8. Toolless maintenance of dustproof filter screen
9. CE approval; RoHS approval; REACH approval

Specification
Model CW-RMUP-500AI
Voltage AC 1P 220~240V
Frequency 50Hz
Current 0.6~5.2A
Max. power consumption 0.98KW
Compressor power 0.32kW
0.44HP
Nominal cooling capacity 2217Btu/h
0.65kW
558Kcal/h
Pump power 0.09 kW
Max. Pump pressure 2.5bar
Pump flow 15 L/min
N.W 21Kgs(46.3lb)
G.W 24Kgs(52.9lb)
Refrigerant R-134a
Precision ±0.1℃
Reducer Capillary
Tank capacity 5.5L
Inlet and outlet Rp1/2"
Dimension 19.3" x 18.9" x 10.2" (490 x 480 x 260mm)
Package dimension 23" x 21" x 13.4" (590 x 530 x 340mm)



CONTOUR AND PARTS INTRODUCTION

Digital temperature controller
The T-801B temperature controller offers high precision temperature control of ±0.1°C.

Front mounted water fill port and drain port
The water fill port and drain port are mounted in the front for easy water filling and draining.

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

Modbus RS485 communication port
The RS485 communication port enables communication with the laser system.

Cooling fan of famous brand installed.
With high quality and low failure rate.
