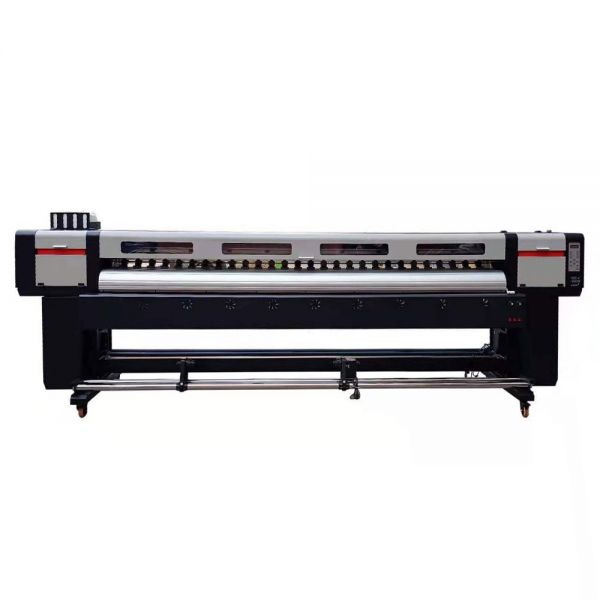

3.2m Eco Solvent Printer with 2 Epson I3200E Printheads

See larger image and other views (with zoom)

3.2m Eco Solvent Printer with 2 Epson I3200E Printheads

| 7 Transactions

รหัสสินค้า:SIT-POLAR-3200A

ราคา : ฿ 293,587/set (ขอส่วนลดพิเศษ) (สินค้าพร้อมส่ง)

จำนวน: set(s) Total Cost:
THB ฿293,587
น้ำหนักการส่ง: 1210.0lb (550kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
ฟิลเตอร์ที่กรองหมึก (5 ไมครอน) สำหรับเครื่องพิมพ์ Infiniti/JHF/Allwin/Phaeton/CrystalJet (หมึก Solvent)

฿23.25/pc

ฟิลเตอร์ที่กรองหมึก (5 ไมครอน) สำหรับเครื่องพิมพ์ Infiniti/JHF/Allwin/Phaeton/CrystalJet (หมึก Solvent)

฿23.25/pc

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 7

Buyer
ราคา Unit
จำนวน
Order Date

Adg****
$299901.00
1 set
2025-04-19

Myr****
$299901.00
1 set
2025-02-19

Dal****
$311921.00
1 set
2024-12-04

Han****
$308705.00
1 set
2024-09-28

Ber****
$324784.00
1 set
2024-08-07

Fre****
$327999.00
1 set
2024-06-06

Bar****
$338999.00
1 set
2024-03-25

3.2m Eco Solvent Printer with 2 Epson I3200E Printheads

Product Description:
1.The main beam adopts the latest bridge design scheme, and the structure is more perfect and stable.
2.Hiwin silent linear guide, less noise, longer life.
3.the car anti-collision function, greatly reducing the chance of accidental injury to the nozzle.
4.The trolley adopts the Raytheon servo motor, which drives the linear decoding with high precision, with small error and more stable performance.
5.The intelligent drying system is synchronized with the printing, that is, it is dry, safe and energy-saving.6.one central axis, platform partition suction, make paper more stable and more accurate.
7.lifting smallframe, according to printing supplies, free to adjust the height of the nozzle,easy to adjust.8.lack of ink, paper shortage alarm system, more intelligent, humane.
9.HOSON Gigabit network port board, high performance, high precision, high speed.
10.GigabitEthernet port data transmission, anti-interference, transmission stability is not interrupted, paper is not stuck.11.2.5Llarge ink cartridge design, secondary ink system, long-term printing and continuous ink.

Specification:

Print Head	2pc I3200
Print speed	Draft 3pass: 40m²/h
	Production 4pass: 30m²/h
	High quality 6pass: 20m²/h
Ink type	Sublimation ink, water-basic ink, ECO Solvent Ink
Ink supply method	2.5L large ink bottle continuous system, lack of ink alarm
Width	3200mm
Material type	Canvas, sticker, flex banner
Head height	from 2-8mm stepless adjustable
Heating system	lnfrared segment heating,air drying double drying
Anti-warping paper	Combined uniform resistance anti-warping paper
Automatic collecting device	Heavy bearing around 60KG
Data transfer interface	Gigabit network port
RIP Software	MainTop
Input power	220V,Printer 1KW, Dryer 6KW
Packing Size	47301010830MM
Gross Weight	500kg

Details:

Install the tripod:

Component Names:
1.Main Body
2.Paper Feeding System
3.Dryer
4.Iron Legs
5.Crossbeam
6.Support Fixing Plate
7.Leg Frame
8.Paper Collecting System

Leg Frame Installation:
1. Install the left and right base feet at the bottom ends of the left and right iron legs, and secure them using 8 inner hex bolts (M5×10). Attach the casters with brakes to the left and right base feet using 16 inner hex bolts (M5×10).
Note: Tighten in the direction of the arrow, as shown in the diagram.

2. Install the tie rods and crossbeam between them and secure with 22 inner hex bolts (M5×10), as shown in the diagram.

3. Fix the support fixing plate to the left and right iron legs and the left and right base feet using 6 inner hex bolts (M5×10).

Then, secure both ends of the support fixing plate using 4 inner hex bolts (M6×25).

Place the assembled paper collection motor module and the paper collecting module onto the aluminum tube.

Then secure them using 2 straight-knurled handles (M5×25) to the left and right support parts, as shown in the diagram.

4. Attach the fan support components to the left and right iron legs using 8 inner hex bolts (M5×10).

Then fix the assembled dryer onto the support using 8 inner hex bolts (M4×10), as shown in the diagram.

5. Fix the support fixing plate to the left and right iron legs and the base feet using 6 inner hex bolts (M5×10).

Then secure both ends of the support fixing plate using 4 inner hex bolts (M6×25).

Place the assembled paper feeding module onto the aluminum tube.

Then secure it using 2 straight-knurled handles (M5×25) to the left and right support parts, as shown in the diagram.

6. After completing the steps above, mount the main body onto the leg frame. Align the circular holes and secure using 4 inner hex bolts (M5×10) (tighten in the direction shown by the arrow), as shown in the diagram.
