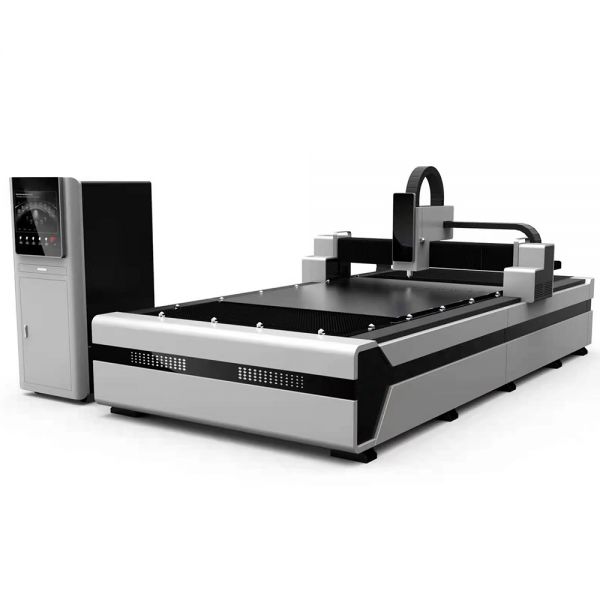

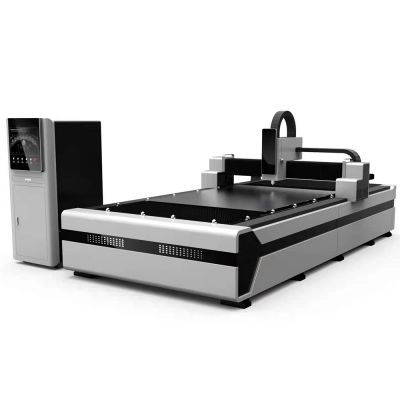

2000x6000mm 6000W Fiber Laser Cutting Machine

See larger image and other views (with zoom)

2000x6000mm 6000W Fiber Laser Cutting Machine

| 16 Transactions

รหัสสินค้า:SIT-FIBER-JM2060

ราคา Unit : ฿ 2,160,484/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

กรุณาเลือกประเภท

Heavy Duty Economy

จำนวน: set(s) Total Cost:
THB ฿2,160,484
น้ำหนักการส่ง: 15620.0lb (7100kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,288 - 1,464/set

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿1920/set

ชุดดัดป้ายตัวอักษรโลหะรูปแบบแกนคู่ระยะความกว้างการดัด 100 ม.ม.--- Dual-axis Metal Channel Letter Angle Bender Bending Tools, Bending Width 100mm

฿1,288 - 1,464/set

1200mm เครื่องดัดอะคริลิก ด้วยความร้อน สำหรับดัดแผ่น PVC , อะคริลิก , พลาสติก เพื่อผลิตป้ายไฟกล่องแสง , ขนาดตัวเครื่อง 48"(1200 ม.ม.) ความหนาของ วัสดุอะคริลิก 1 - 6 ม.ม.

฿1920/set

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 16

Buyer
ราคา Unit
จำนวน
Order Date

Ale****
$2160484.00
1 set
2024-12-17

Vla****
$3856238.00
1 set
2024-11-20

Alb****
$3816484.00
1 set
2024-10-24

Mau****
$2160484.00
1 set
2024-10-01

Car****
$3895994.00
1 set
2024-09-10

Rah****
$2273009.00
1 set
2024-08-15

Glo****
$2295514.00
1 set
2024-07-13

Oli****
$2295514.00
1 set
2024-06-20

Tab****
$4094236.00
1 set
2024-05-18

Mer****
$2295514.00
1 set
2024-04-22

Ils****
$2273009.00
1 set
2024-03-21

Ast****
$2273009.00
1 set
2024-02-16

Han****
$3895994.00
1 set
2024-01-11

Kit****
$2227999.00
1 set
2023-12-03

Mor****
$4015260.00
1 set
2023-10-18

Hil****
$2205494.00
1 set
2023-09-10

2000x6000mm 6000W Fiber Laser Cutting Machine

Details:

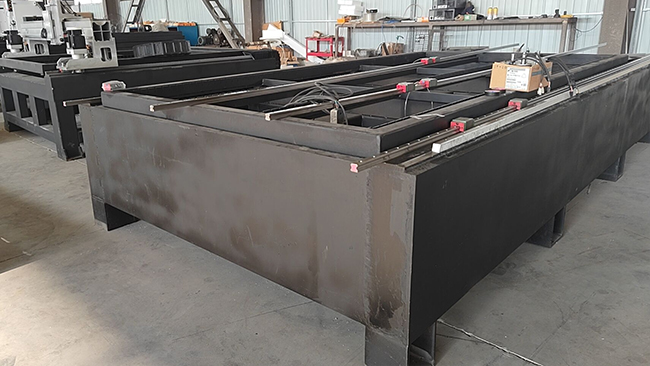

Economy machine bed

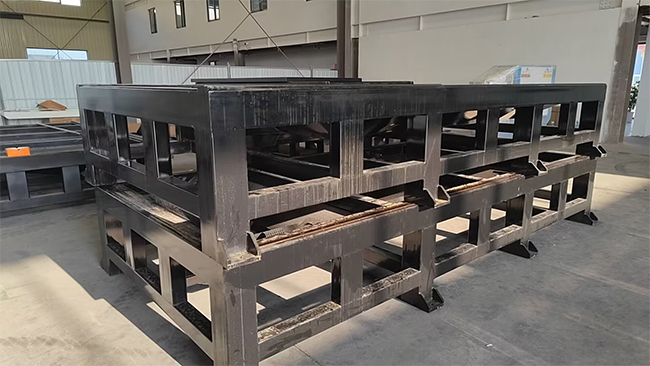

Heavy duty machine bed
The heavy-duty thermally isolated hollow bed is welded with high-quality steel plates and pipes. After welding, stress relief annealing, secondary aging treatment, and ultra-large gantry milling machine precision processing ensure that the bed has sufficient structural stability and shock resistance. Withstand higher acceleration. There is no connection inside the bed to block heat transfer, avoiding the heat generated by cutting from being transferred to the bed and affecting the processing accuracy. The bed will not be deformed after long-term use, which improves the service life of the equipment.

Specification:

Model	JM6020
Laser device	6000W Raycus
Cutting length	0~6000mm
Cutting width	0~2000mm
Wavelength	1060-1080 nm
Beam quality (BPP,mm*mrad)	1.27
Positioning accuracy	±0.05mm/m
Repeated positioning	±0.03mm/m
Maximum airspeed	80m/min
Controlling system	TubePro
Electromechanical	SCHNEIDER
Cutting bed	6020
Water cooling	Specialized
Dust exhausting fan	Specialized
Document	Specialized
Document	Operating
Power parameters	Three-phase AC 380V 50Hz
Protection Level of Total Power Supply	IP54
Outline size	9000x2900x2400

Cutting Thickness:

Material	Good quality thickness
Carbon steel	40mm
Stainless steel	30mm
Brass	25mm
Aluminum	20mm

Cutting Parameters:

Material	Thickness [mm]	Speed [m/min]	Gas
Carbon steel	5	23-28	N2/Air
	6	18-20
	8	14-16
	10	44816
	12	44783
	14	44720
	16	44687
	18	3.2-4
	20	2.7-3.2
Carbon steel	10	2-2.3	O2 Positive focus
	12	1.8-2
	14	1.6-1.8
	16	1.5-1.6
	20	1.3-1.4
	22	1.2-1.3
	22	1.4-1.5
	25	1.2-1.4
	30	1.2-1.3
	40	0.6-0.9
	40(Not Q235)	0.3-0.6
	50	0.2-0.3
	60	0.2-0.25
	70	0.18-0.2
	80	0.12-0.15
Stainless steel	1	50-60	N2
	2	50-60
	3	40-45
	4	30-35
	5	22-24
	6	18-22
	8	13-16
	10	44846
	12	44783
	14	44720
	16	44687
	18	3.2-4
	20	3-3.2
	25	1.5-2
	30	1-1.2
	40	0.5-0.8
	50	0.2-0.3
	60	0.15-0.2
	70	0.1-0.13
	80	0.08-0.1
	90	0.05-0.06
	100	0.04-0.05
Aluminum	1	55-60	N2
	2	40-45
	3	30-35
	4	25-30
	5	18-20
	6	16-18
	8	44846
	10	44814
	12	44687
	14	44656
	16	44624
	18	44595
	20	1.5-2
	25	1-1.2
	30	0.8-1

Cutting Capability and Application:

Cutting Materials:
Carbon steel, stainless steel, aluminum alloy, brass, copper, galvanized sheet, silicon steel sheet, electrolytic sheet, titanium alloy, manganese alloy, etc.

Application Industry:
Sheet metal processing, machinery manufacturing, auto parts manufacturing, electrical manufacturing, elevator manufacturing, petroleum machinery, food machinery, shipbuilding etc.
