S&A Portable Laser Chiller CWUP-30 For 30W Solid State Ultrafast Laser (AC 1P 220V, 60HZ)
Portable water chiller unit CWUP-30 with ±0.1℃ temperature stability is developed and manufactured by S&A to meet the market demand. Featuring ultra-precise temperature control and compact design, water chiller machine CWUP-30 breaks the domination of oversea manufacturers on ±0.1℃ laser cooling technique and better serves the domestic solid state ultrafast laser market.

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

Features:
1. Cooling capacity of 3.27KW; With environmental refrigerant;
2. Compact size, long working life and simple operation;
3. ±0.1℃ precise temperature control;
4. The temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;
5. Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;
6. CE approval; RoHS approval; REACH approval;
7. Optional heater and water filter.

Specification
Model	CW-UP-30BNTY
Voltage	AC 1P 220~240V 60Hz
Current	2.1~8.9A
Power consumption	1.91kW
Compressor power	0.88kW
Compressor power	1.18HP
Nominal cooling capacity	8188Btu/h
	2.4kW
	2063Kcal/h
Refrigerant charge	550g
Pump power	0.37KW
Max. Pump pressure	2.7bar
Pump flow	75L/min
Refrigerant	R-410a
Precision	±0.1℃
Reducer	Capillary
Tank capacity	10L
Inlet and outlet	Rp1/2"
N.W	55Kgs(121.3lb)
G.W	61Kgs(134.5lb)
Dimension	590 x 380 x 740mm (23.2" x 15" x 29")
Package dimension	660 x 480 x 920mm (26" x 19" x 36.2")

Note: the working current can be different under different working conditions; The above information is for reference only. Please subject to the actual delivered product.

PRODUCT INTRODUCTION

Independent production of sheet metal, evaporator and condenser
Adopt IPG fiber laser for welding and cutting sheet metal.
Temperature control accuracy can reach ±0.1°C.

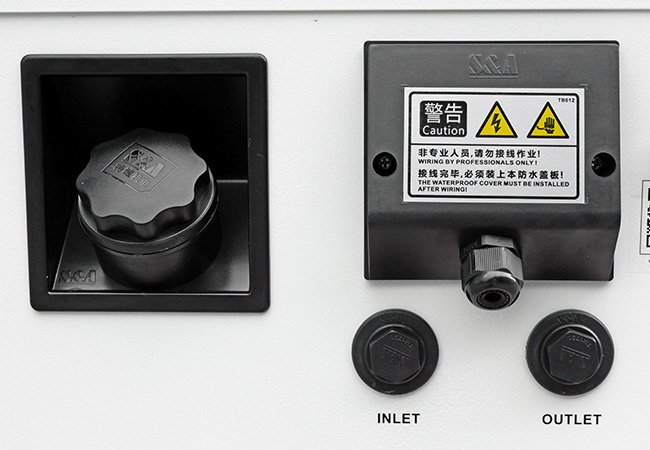

Inlet and outlet connector equipped
Multiple alarm protection.
The laser will stop working once it receives alarm signal from the water chiller for protection purpose.

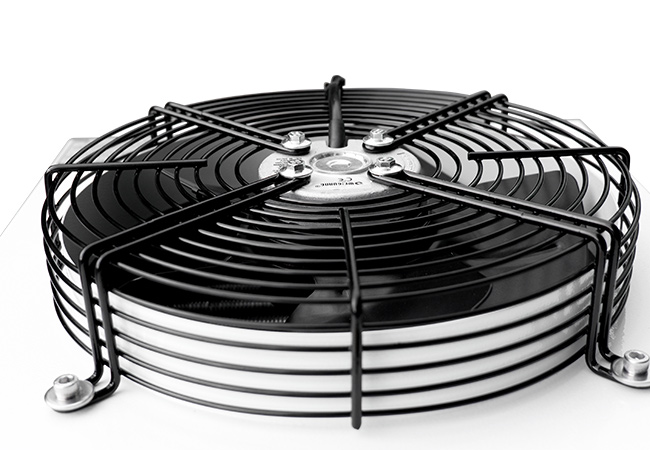

Cooling fan of famous brand installed.

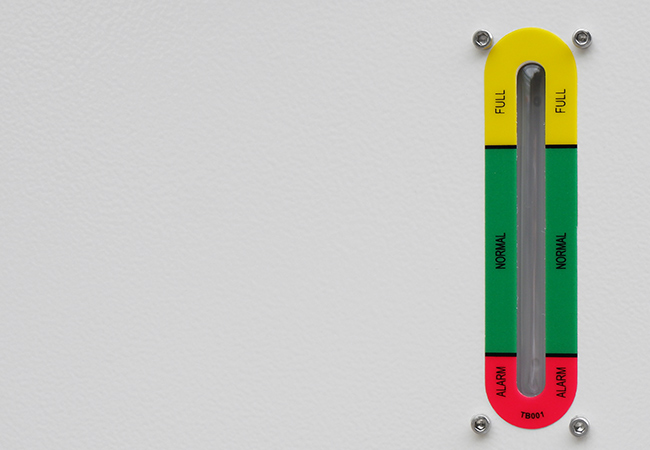

Level gauge equipped.
Cooling fan with high quality and low failure rate.

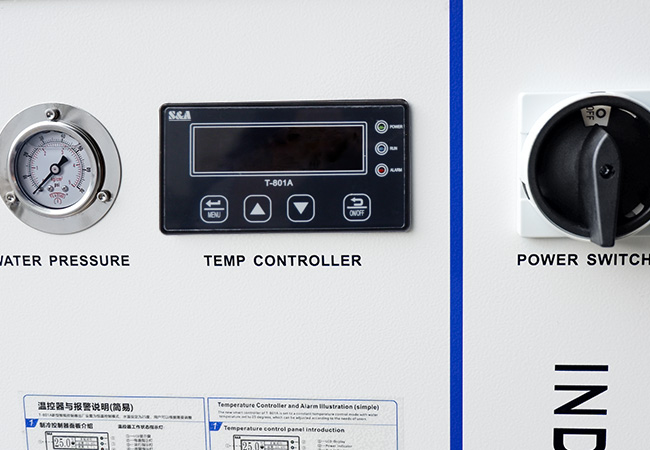

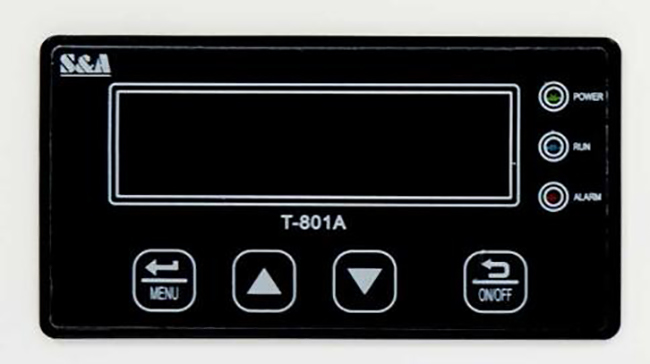

TEMPERATURE CONTROLLER PANEL DESCRIPTION

The intelligent temperature controller does not need to adjust the controlling parameters under normal circumstance. It will self-adjust controlling parameters according to room temperature for meeting equipment cooling requirements.
User also can adjust the water temperature as needed.

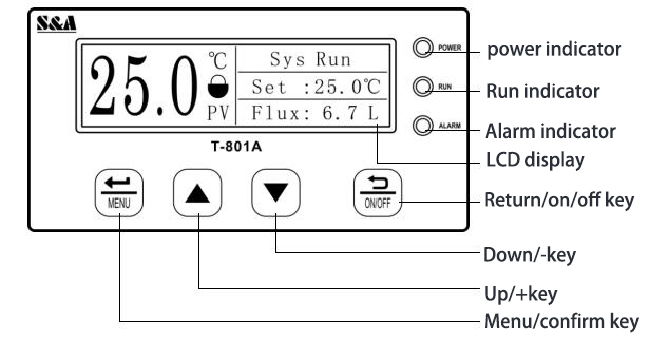

Temperature controller panel description：

ALARM AND OUTPUT PORTS

In order to guarantee the equipment will not be affected while abnormal situation happens on the chiller, CWUP series chillers are designed with alarm protection function.

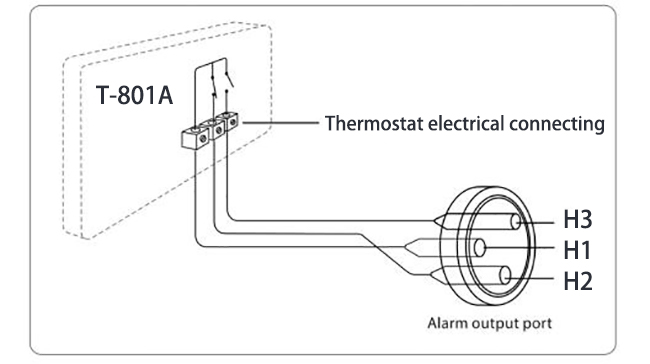

1. Alarm output terminals and wiring diagram.

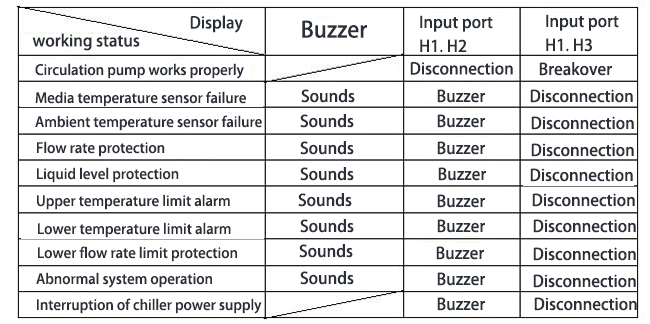

2. Alarm causes and working status table.

Note: The flow alarm is connected to the normally open relay and normally closed relay contacts, requiring operating current less than 3A, working voltage less than 300V.
