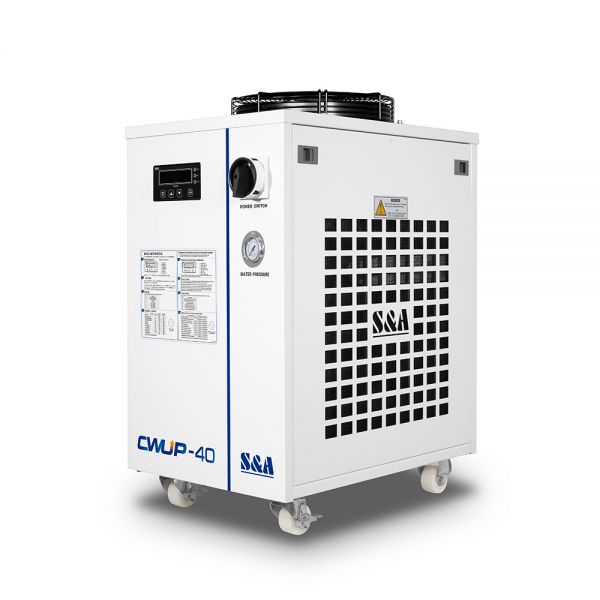

S&A Small Chiller System CWUP-40 for Ultrafast Laser UV Laser, AC 1P 220~240V 60Hz
  • S&A Small Chiller System CWUP-40 for Ultrafast Laser UV Laser, AC 1P 220~240V 60Hz

See larger image and other views (with zoom)

S&A Small Chiller System CWUP-40 for Ultrafast Laser UV Laser, AC 1P 220~240V 60Hz



รหัสสินค้า:CW-UP-40BNTY

  • ราคา Unit : ฿ 41,110/set   (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

  • จำนวน: set(s) Total Cost: ฿41,110
  • น้ำหนักการส่ง: 192.2lb (87.38kg) freightขนส่งสินค้า

  • Submit your order online to get membership points, a proforma invoice will be sent to you after you submit the order.
    Add to  Cart

Buyer Protection

S&A Small Chiller System CWUP-40 for Ultrafast Laser UV Laser, AC 1P 220~240V 60Hz

Our expertise in high precision cooling technology translates into small chiller system CWUP-40. This chiller may be simple in design yet it delivers precise cooling featuring ±0.1°C stability with PID control technology and steady flow of chilled water for your ultrafast laser and UV laser. Completely self-contained, CWUP-40 laser water cooler combines a high efficiency compressor and a durable fan-cooled condenser and is suitable for purified water, distilled water or deionised water. Modbus 485 communication function is designed to provide effective communication between the chiller and laser system.

Tips: Cooling water additive is forbidden by express company, so we could not put it into the package.You can buy it from local.

Features

Intelligent functions
Low tank water level detecting
Low water flow rate detecting
Over water temperature detecting
Heating of the coolant water at low ambient temperature

Self-check display
12 types of alarm codes
Easy routine maintenance
Toolless maintenance of dustproof filter screen
Quick-replaceable optional water filter

Communication function
Equipped with RS485 Modbus RTU protocol

Specification
Model CW-UP-40BNTY
Voltage AC 1P 220~240V 60Hz
Current 2.1~12A
Power consumption 2.36kW
Compressor power 1.08kW
1.44HP
Nominal cooling capacity 10713Btu/h
3.14kW
2699Kcal/h
Refrigerant charge 550g
Pump power 0.37KW
Max. Pump pressure 2.5bar
Pump flow 75L/min
Refrigerant R-410a
Precision ±0.1℃
Reducer Capillary
Tank capacity 14L
Inlet and outlet Rp1/2"
N.W 58Kgs(127.9lb)
G.W 70Kgs(154.3lb)
Dimension 670 x 470 x 890mm (26.4" x 18.5" x 35")
Package dimension 730 x 570 x 1050mm (28.7" x 22.4" x 41.3")

Product Details

Digital temperature controller
The T-801B Digital temperature controller offers high precision temperature control of ±0.1°C.

Easy-to-read water level indicator
The water level indicator has 3 color areas - yellow, green and red.
Yellow area - high water level.
Green area - normal water level.
Red area - low water level.

Modbus RS485 communication port integrated in the electrical connecting box
The RS485 communication port integrated in the electrical connecting box enables communication with the laser system.

Ventilation Distance

Product Working Principle

Certificate
