Trocen TL-5269 Laser Machine Controller for 2-Head CCD CO2 Laser Engraving Cutting

See larger image and other views (with zoom)

Trocen TL-5269 Laser Machine Controller for 2-Head CCD CO2 Laser Engraving Cutting

รหัสสินค้า:SIT-CS-LC-L5269

ราคา Unit : ฿ 31,968/pc (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 14-20 วัน)

จำนวน: pc(s) Total Cost:
THB ฿31,968
น้ำหนักการส่ง: 4.4lb (2kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions:

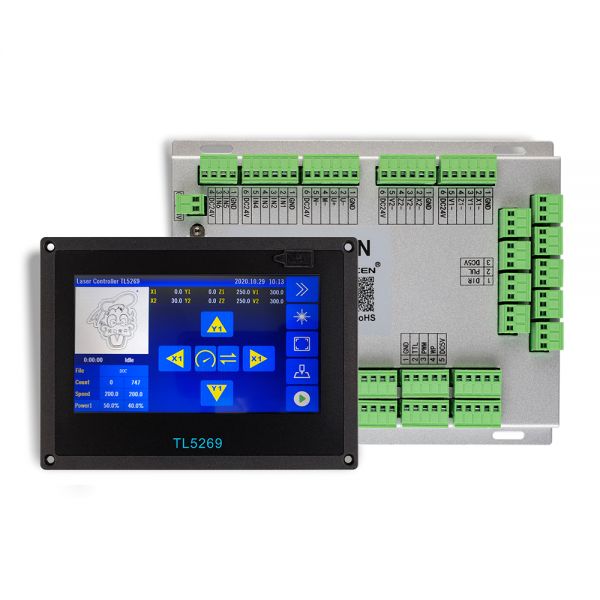

Trocen TL-5269 Laser Machine Controller for 2-Head CCD CO2 Laser Engraving Cutting

Features:

Ø 7-inch TFT LCD touch screen, intuitive and simple operation interface

Ø Using a new 32-bit high-speed DSP to make the system run faster and more stable;

Ø Product is easy to operate, saving time after training;

Ø Support U disk offline file preview function, real-time display of laser head movement track;

Ø Device parameters can be set completely away from the PC;

Ø All optocouplers isolate external electromagnetic interference, and the system works stably and reliably;

Ø Support multi-languauge;

Ø Support USB2.0 high-speed interface, U disk read and write files are more stable, can identify various brands of U disk;

Ø Support network communication and USB communication, the transmission speed is faster and more stable;

Ø Intelligent diagnosis system self-fault;

Ø One key to switch the way of manually moving the axis;

Ø A variety of humanized positioning modes and return modes, which are convenient for customers with different habits to operate the machine;

Ø One-key continuous cutting, convenient to continue cutting after the processing file is interrupted in any way;

Ø When adjusting the cutting effect, there are few setting parameters, and the user is easy to hold.

Ø Support automatic feeding function;

Ø Support over size cutting;Compatible with file formats generated by various popular typesetting software

Ø Three heads of single beam move each other, double beams are asynchronous, short avoidance time for large-size graphics and double beams at the same time, seamless splicing;

Specification:

Power	DC24V,3A
Input	6 roads
Output	12 roads
Control axis	9axis
Control head	6 heads
Support Laser	CO2laser tube，RF tube
Control Laser energy	0-100% 0.1%Continuously adjustable
Support graphics format	G-code,AI,SVG,PDF,DXF,PLT,DST,DSB,UD5,BMP,JIF,JPG,PNG etc
Support software	LaserCAD, lightburn (Plugin support CORELDRAW,AUTOCAD, Adobe Illustrator)
Support system	Windows(Window XP、Vista、Win7、Win8、Win10 )operating system
