US Stock, Epson I3200-U1HD Printhead

Free Shipping for USA Customers, Arrival in 2-3 Business Days.

รหัสสินค้า:UV-PRH-EPS-068-US

ราคา Unit : ฿ 58,074/pc (ขอส่วนลดพิเศษ)

กรุณาเลือกประเภท
US Warehouse China Warehouse

จำนวน: pc(s) Total Cost:
THB ฿58,074
น้ำหนักการส่ง: 0.2lb (0.082kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions:

The Products in US Stock Only Free Shipping to USA.
Canada and Mexico Customers need to pay the extra delivery charges, Please contact our customer service in advance.
Customers in Other Countries Please Click Here to Order:

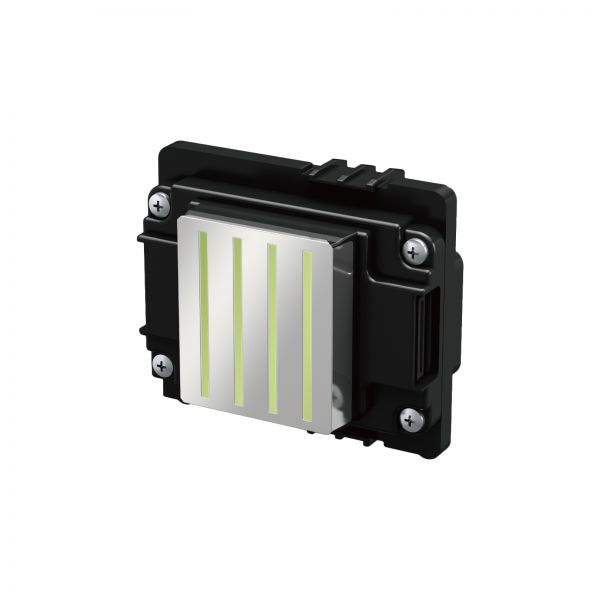

Epson I3200-U1HD Printhead

Epson I3200-U1HD Printhead, special for CALCA A3 UV printer (UVFP-UL-A3)

Specifications:
Product name: Epson I3200-U1HD
Ink type: UV
Type: PrecisionCoreMicroTFP Printhead
Width × Depth × Height: 2.7×2.3× 1.4 inch (69.1x 59.4 x 35.6mm)
Weight: 82g
Number of nozzle: 3200
Nozzle pitch / nozzle row: 1/300 inch
Nozzle rows: 8 rows
Nozzle Resolution: 300npi/row, 600npi/2 rows
Max. number of color inks: 4 colors
Effective print width: 1.33 inches (33.8 mm)
Viscosity range: 5.0-7.0 mPa･s
Positioning Mechanism: Reference hole
Remarks: Original

Features:
1. PrecisionCore Technology
a.MEMS manufacturing and thin film piezo technology enable high precision and a high nozzle density, creat-ing compact, high-speed, high-quality print heads with excellent image quality.
b. Epsonʼs unique precision MEMS nozzles and ink flow path, ensure that perfectly round ink droplets are placed accurately and consistently.
2. Support for grey scale
Epsonʼs unique Variable Sized Droplet Technology (VSDT) delivers smooth graduations by ejecting droplets of different volumes.
3. High resolution
Ink ejection of up to 4 colours realizes with high resolution (600 dpi/colour).
4. High durability
PrecisionCore print heads have proven durability and extended service life demonstrated by Epsonʼs own industrial printers.
