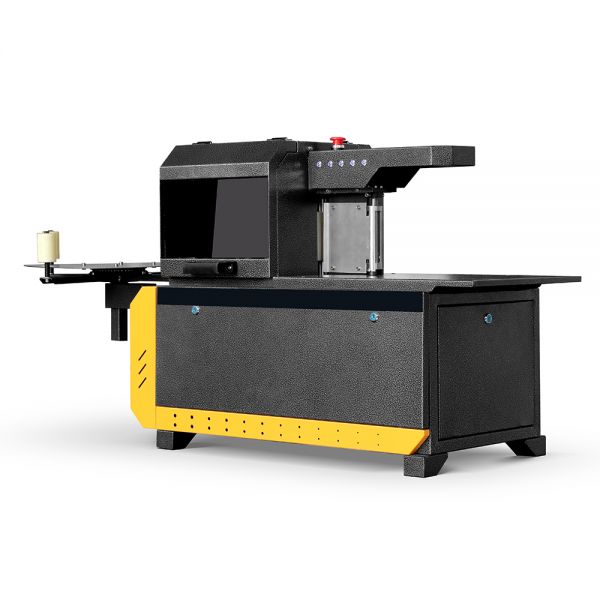

3100 CNC Mini Channel Letter Bending Machine

See larger image and other views (with zoom)

3100 CNC Mini Channel Letter Bending Machine

| 3 Transactions

รหัสสินค้า:SIT-DH-3100

ราคา Unit : ฿ 81,116/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 25-45 วัน)

จำนวน: set(s) Total Cost:
THB ฿81,116
น้ำหนักการส่ง: 242.0lb (110kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 3

Buyer
ราคา Unit
จำนวน
Order Date

Ken****
$81116.00
1 set
2024-12-17

Iai****
$81961.00
1 set
2024-11-21

Ans****
$81116.00
1 set
2024-10-15

3100 CNC Mini Channel Letter Bending Machine

Features:

1.Fully automatic feeding, automatic slotting and automatic bending according to the characteristics of the font.

2.The feeding adopts feeding feedback of closed-loop encoder, which effectively avoids size inaccuracies caused by material sliding.

3.Material grooving adopts a planer imported from Japan, which has low cutting sound, wear-resistant, not easy to break, and easy to replace.

4.The slotting method adopts high-precision guide rail and pneumatic system, ultra-hard white steel blade slotting method, low cost and good effect.

5.The bending system adopts a high-precision servo system, which effectively increases the speed of the arc.

6.Humanized operating software, fixed grooving depth, durable tool, and constant depth.

7.Special specifications can be customized.

Specification:

Model	3100
Applied Material	Flat aluminum coil
Material Width	20-100mm
Material Thickness	Maximum 0.8mm
Feeding Speed	2-5m/min
Bending Mode	Double rod linkage
Minimum Bending Radius	4mm
Motor	Servo motor: 1pc
Motor	Stepper motor: 1pc
Power	600w
Voltage	220v 50/60hz 1p
Air Pressure	0.6MPa
Supported File Format	DXF PLT AI
Control Software	Original Leetro Software CBS
Machine Weight	80kgs
Gross weight	110kgs
Machine Size	1000mm(L)400mm(W)680mm(H)

Details:

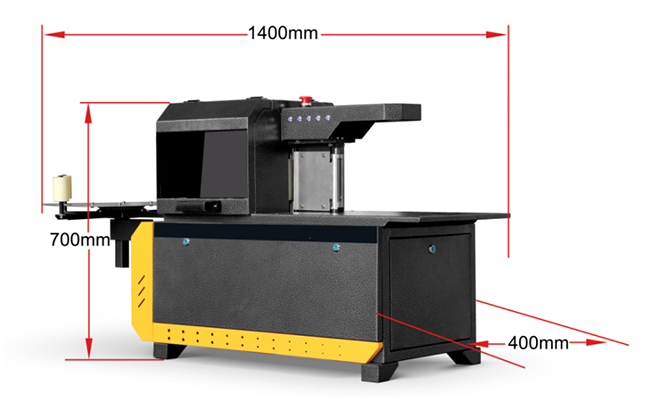

Machine Size-Mini

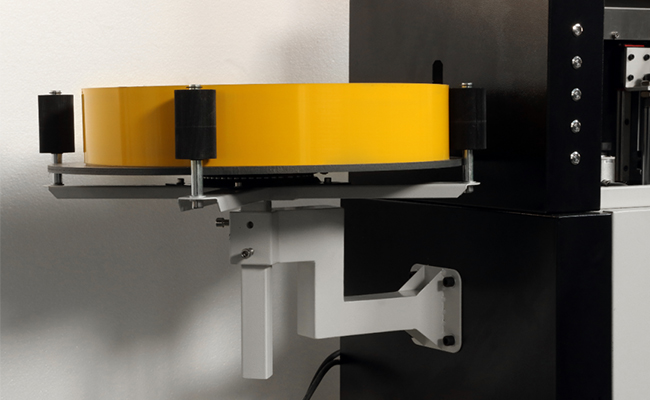

Feeding Tray. Material can move smoothly, suitable for different width aluminum coils.

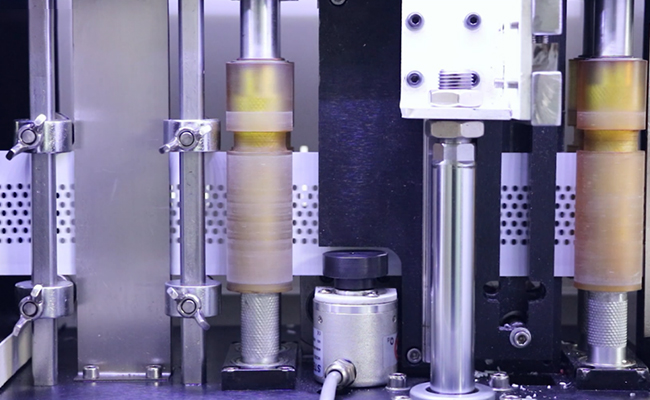

Rubber roller feeding, gear belt drive.

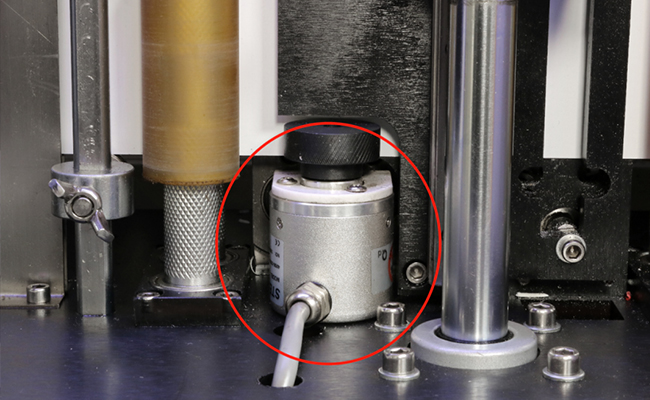

High-quality encoder, high reliability, long life, strong anti-interference performance. Used in conjunction with high-speed precision motors, its high-precision performance makes the feeding control more precise.

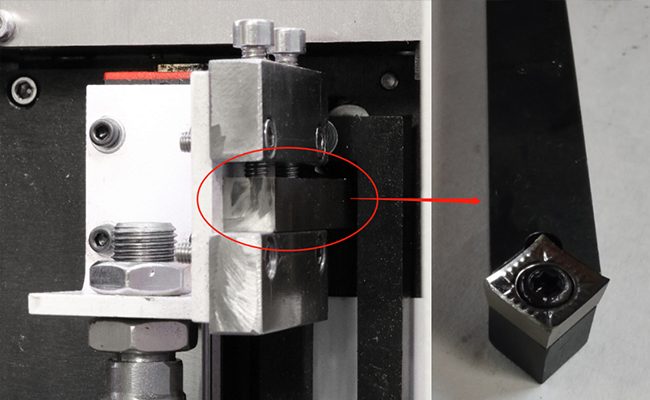

Imported Planer. low cutting sound, wear-resistant, not easy to break, and easy to replace.

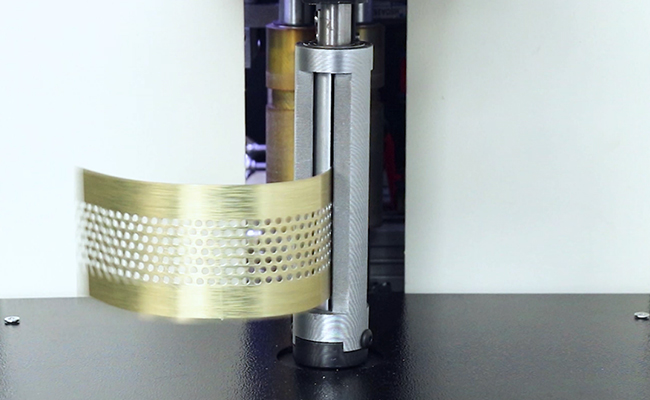

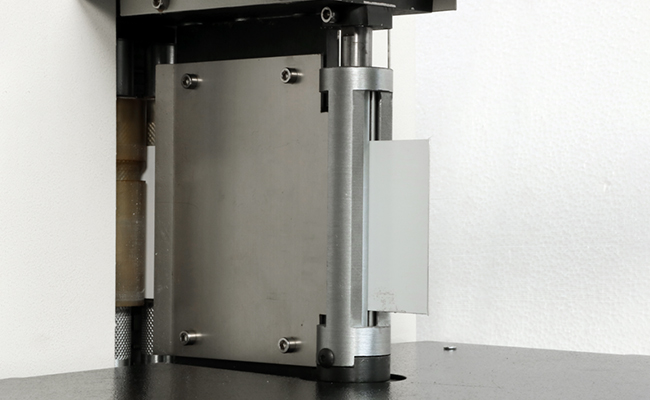

Bending Bar.

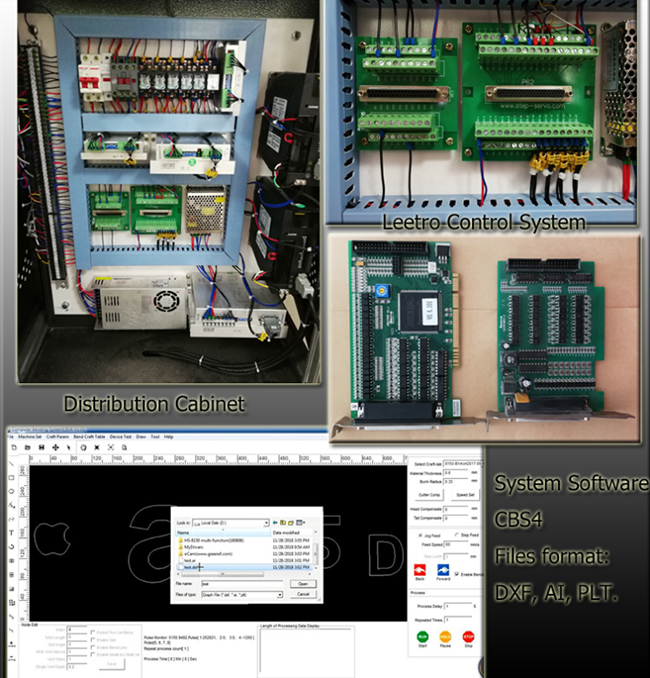

Control system

The control card and software are genuine Leetro control system. The software operation is simple and easy to learn, ensuring zero error when the machine calculates the size. The control board runs stably and has strong anti-interference ability.
