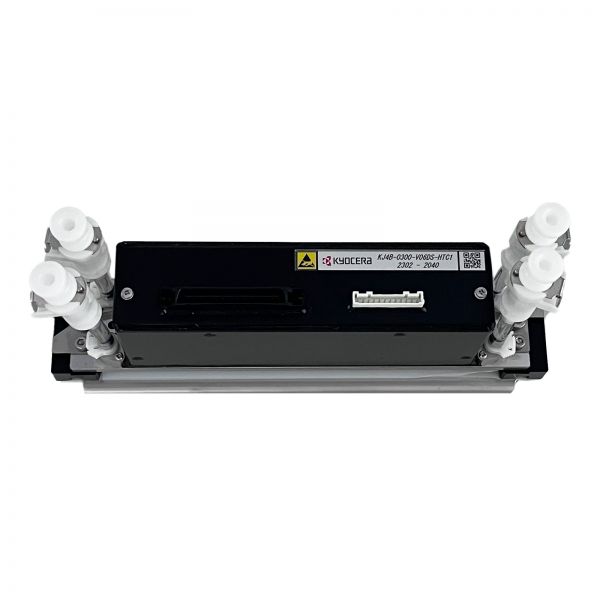

Kyocera Inkjet Printhead KJ4B-0300 - Standard

See larger image and other views (with zoom)

Kyocera Inkjet Printhead KJ4B-0300 - Standard

รหัสสินค้า:PRH-KYO-005

ราคา Unit : ฿ 102,052/pc (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 6-10 วัน)

จำนวน: pc(s) Total Cost:
THB ฿102,052
น้ำหนักการส่ง: 2.7lb (1.22kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿
Customers Who Bought This Item Also Bought

< >
มอเตอร์สแกนสำหรับเครื่องพิมพ์ Mimaki Mimaki JV3-160S / JV3-160SP / JV3-250SP / JV22-130 / JV22-160 --- Mimaki Scan Motor for JV22/ JV3

฿3,804 - 4,180/pc

Cap สำหรับเครื่องพิมพ์ Roland SJ-740 / FJ-740 / XC-540 / RS-640 / VP-540 ฯลฯ สินค้าของแท้ (หมายเลขชิ้นส่วน 1000004546 / 1000002794)--- Cap Capping Top

฿707 - 744/pc

มอเตอร์สแกนสำหรับเครื่องพิมพ์ Mimaki Mimaki JV3-160S / JV3-160SP / JV3-250SP / JV22-130 / JV22-160 --- Mimaki Scan Motor for JV22/ JV3

฿3,804 - 4,180/pc

Cap สำหรับเครื่องพิมพ์ Roland SJ-740 / FJ-740 / XC-540 / RS-640 / VP-540 ฯลฯ สินค้าของแท้ (หมายเลขชิ้นส่วน 1000004546 / 1000002794)--- Cap Capping Top

฿707 - 744/pc

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 0

Kyocera Inkjet Printhead KJ4B-0300 - Standard

Description
This new generation Kyocera KJ4B-0300 is designed for high-speed single-pass applications with printers using aqueous ink. It is a 300dpi two colours printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 120 m/min by making use of 2,656 nozzles arranged across 112 mm wide print swathe.

Specifications:
Ink Type: Aqueous Ink
Dimensions: 200 x 36 x 68.5mm
Dry Weight: 540g
Total Nozzles: 2656
Standard Resolution: 300 x 600dpi
Max. Drive Frequency: 30kHz
Minimum Drop Volume: 5pl
Maximum Drop Volume: 12pl
Print Width: 112.35mm
Print Speed: 76.2m/min
Typical ink viscosity: 5.0-6.0 mPa
Compatible Printers:
Atexco Ajet 3190 Atexco Aprint-3308B
EFI Reggiani BLAZE
Hanway Highjet 2500B
HOMER HM1800R
Printerevolution T1800 / T2600 / T3200
Roland ZT-1900
Sign Racer HydroSpeed+

Note: This printhead is a standard Kyocera KJ4B-0300 printhead, for all printers other than MS and EFI Reggiani.

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of printer parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer s responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don t accept any return and refund once the printhead is installed on the machine.
