See larger image and other views (with zoom)

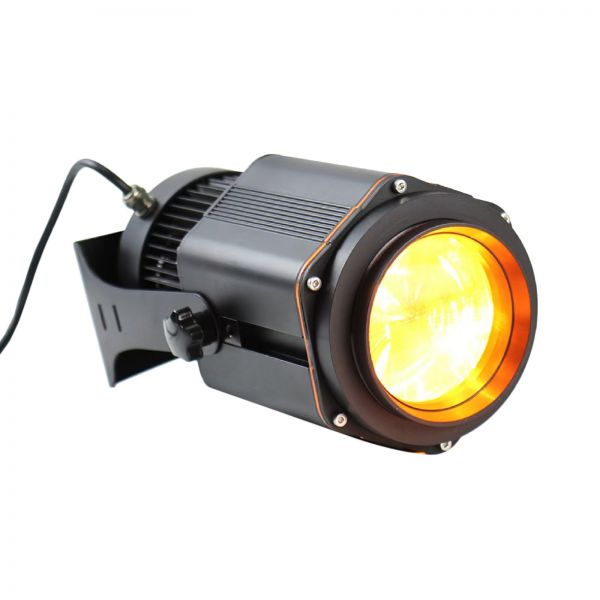

120W LED Line Projector Light

| 1 Transactions

รหัสสินค้า:LED-TYD-DS-120LL

ราคา Unit : ฿ 24,386/set (ขอส่วนลดพิเศษ) (สินค้าถึงภายใน 12-18 วัน)

กรุณาเลือกประเภท

Lens Angle : 55° 75° 90°

Color : 3000K 6500K Yellow Red Blue Green

จำนวน: set(s) Total Cost:
THB ฿24,386
น้ำหนักการส่ง: 8.8lb (4kg) ขนส่งสินค้า
item added to cart

0 total in your Cart, Cart Total: ฿

seller assumes all responsibility for this listing

Shipping and handling

จำนวน: ประเทศ:

1. If you choose to ship by Express, you can see the shipping fee is a little High, but it can deliver to your door within 3-5 days, you need only to make the payment and wait.
2.If you choose to ship by sea, the shipping fee is lower, and you need to go to the ports to make the clearance at the Customs, and take the good from the port to your home by yourself.Generally it takes from10 to 30 days, depending on the consignee address.

Handling time

Will usually ship within 3 business days of receiving cleared payment.

Ship from where?

We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.

Return policy

Purchases can be returned under the following conditions:: 1) There are quality problems after opening the package.; 2) Products are different than on the order list.; 3) Products are irreparably damaged during transportation.

Payment details

Payment method

1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment

Transaction History

Transactions: 1

Buyer
ราคา Unit
จำนวน
Order Date

Bar****
$23857.00
1 set
2025-06-27

Features
All-aluminum alloy metal shell, extremely high structural strength, painted or sandblasted, optional black, silver, white;
Cold forged blades and air cooling technology keep the chip cool at all times, maximize the chip illumination, and greatly extend the chip life;
Ultra-high power LED chip;
2-piece linear lens, clear and sharp imaging, bright enough, long enough, and widely used.

Lens parameters:
140mm focal length 55° lens: imaging length ratio is 1:1, that is, 1 meter projection line length 1 meter 1.2cm width, 3 meters projection line length 3 meters 3.6cm width, 10 meters line length 12cm width and so on.
75 degree imaging length ratio is 1:1.5, 90 degree imaging length ratio is 1:2.0,
Suitable places:
Factory production safety warning-guidance and other places.
Installation method:
It can be placed on the table or floor, or installed on the ceiling, screwed to the ceiling or tied to the keel with cable ties and wires.

This product has no attributes!

Q&A

Item Code	LED-TYD-DS-120LL	Lens focal length	140mm, 55°/75°/90°
Name	120W LED line projector Power	Supply type	Waterproof power supply
Projection distance	3-9m(dark environment))	Rated voltage	100-240VAC
Light source type	Ultra-high power LED	Machine power	120W
Light source power	120W	Protection level	IP42
Light source life	30000h	Light Size	24.513.514.5cm
Luminous flux	1100Lm	Machine weight	4.0kg
Color temperature and color	3000/6500K/Yellow/Red, Blue/Green	Packing size	382520cm
Film size	78mm	Outer box size	615140cm
