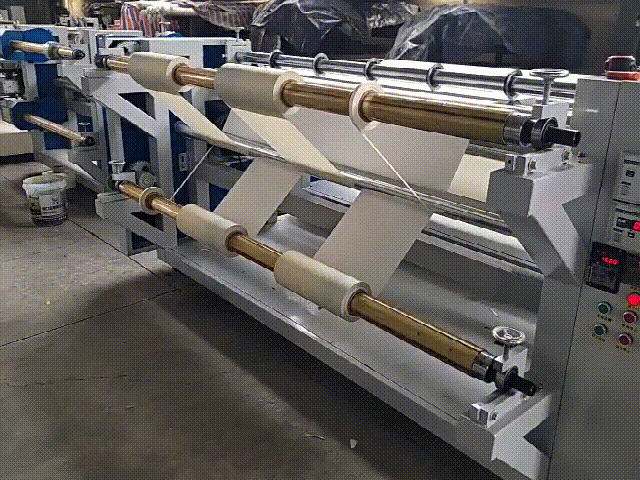

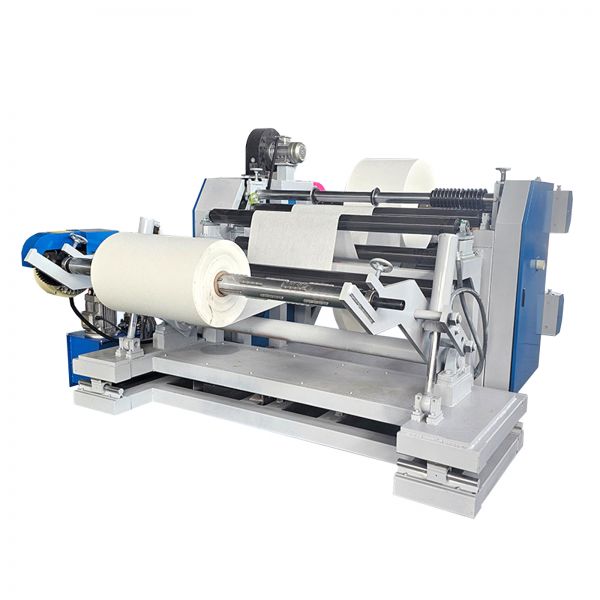

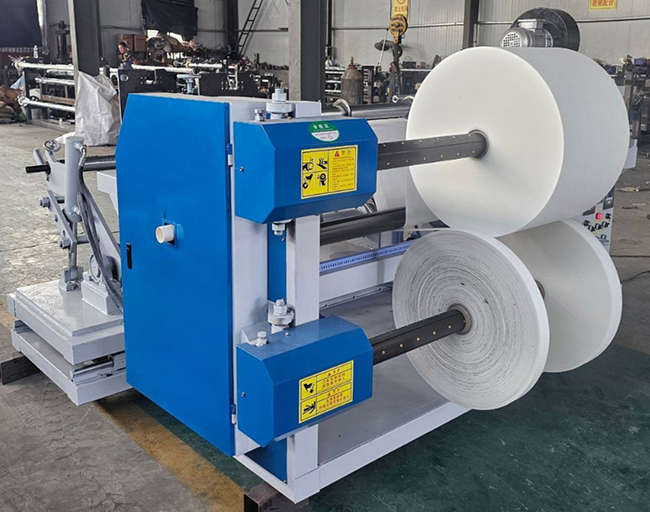

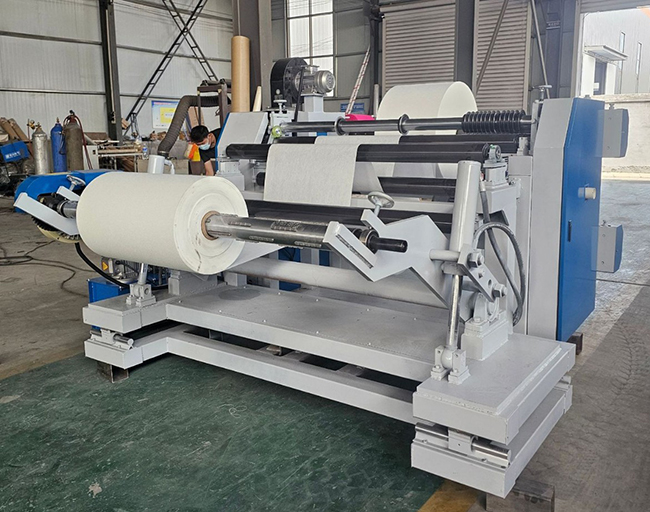

1.8m Rewinding and Slitting Machine

Details:

Stable Structure

- Simple structure, easy to manufacture and maintain

- Long service life with mature production technology

- Stable and reliable quality

Automatic Web Guiding

- Ensures normal and accurate slitting even for irregular materials

Customized on Demand

- Common specifications available in stock

- Other specifications can be customized as required

- Reliable product quality you can trust

Specification:

Model 1600
Max Unwinding Width	1500 mm
Max Unwinding Roll Diameter	Φ1100 mm
Unwinding Web Guiding Error	≤ ±0.2 mm
Min Slitting Width	20 mm
Slitting Thickness	15G–600G
Slitting Speed	0–200 m/min
Max Rewinding Diameter	Φ600 mm
Slitting Accuracy	≤ ±0.05 mm
Core Inner Diameter (Unwind/Rewind)	Φ75–80 mm (customizable)
Unwind/Rewind Shaft Diameter	Φ74 mm (customizable)
Total Power	5.5 kW
Power Supply	380 V / 50 Hz
Machine Weight	1100 kg
Machine Dimensions (L×W×H)	2300x2100x1300 mm
Unwinding Section
Machine Frame	100x80x5 mm square tube / 25 mm carbon steel plate
Magnetic Powder Brake	100 N·m, 1 pc
Tension Control Method	Load cell detection
Tension Controller	Model 828 constant tension controller
Web Guiding System	110 stepper motor + ball screw
Web Guide Sensor	Photoelectric / Ultrasonic
Web Guiding Stroke	Total 200 mm
Web Guiding Accuracy	±0.1 mm
Material Loading	Hydraulic lifting
Unwind Shaft	3-inch air shaft, Φ74 mm, key type
Unwind Shaft Load Capacity	700 kg
Rewinding Section
Feeding Method	Manual feeding
Traction Roller	Not required
Rewind Shaft	3-inch air shaft, Φ74 mm, key type
Rewinding Method	Total tension air shaft
Unloading Method	Material removal without shaft removal
Rewind Press Roller	Optional, based on material
Trim Waste Handling	Fan exhaust
Tension Control	Unwinding tension control
Rewinding Speed Control	Variable frequency control
Rewind Guide Roller	Φ100 mm aluminum roller, dynamic balance & anodized
Slitting Knife Section
Knife Shaft	Upper Φ60 mm / Lower Φ60 mm, surface chrome treated
Upper Knife	Φ130*Φ75 mm
Upper Knife Holder	Φ75* Φ60 mm
Lower Knife	Φ90Φ60Φ20 mm
Knife Material	SKD-11, 10 sets
